Operating the CS1x2x sensor using the keypad
Operating the CS1x2x sensor using the keypad
If the sensor is switched on or supplied with power, the display shows
HYDAC CS1220 or 1320 depending on the type, in moving letters, then the
firmware version is displayed for 2 seconds.
This is followed by a countdown from - .
The duration of the countdown corresponds to the set measurement time
. This means that the countdown runs from 99 to 0 within the set
measurement time (factory setting = 60 sec).

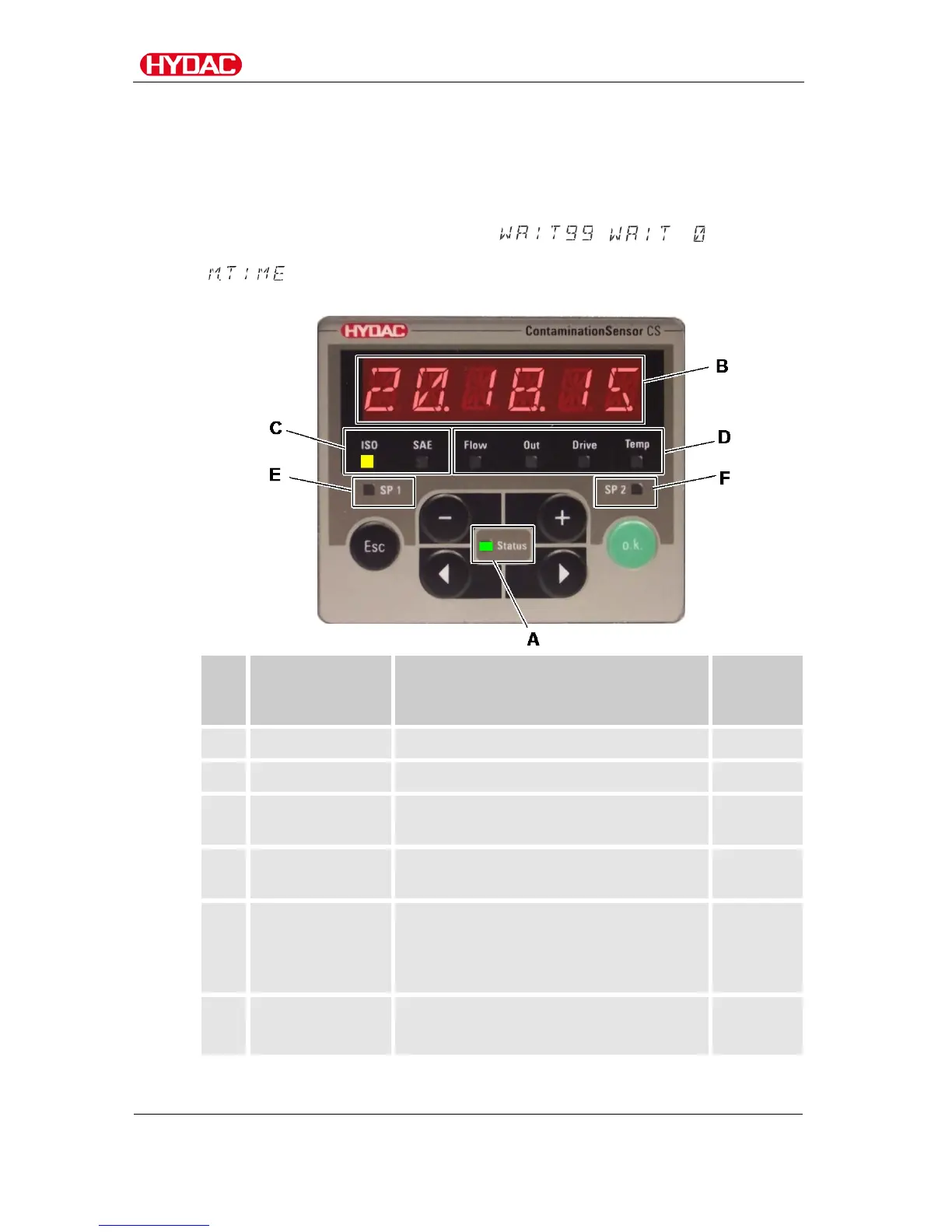

Item
LED
Description
For
details,
see page
A
Status
Status display
103
B
Display
6-figure display with 17 segments each
103
C
Measured
variable
Display of respective measured
variable, e.g: ISO / SAE / NAS
36
D
Service variable
Display of respective service variable,
e.g.: Flow / Out / Drive / Temp
37
E
Switching point 1
SP 1
Indicates the status of the switching
output. When the LED is lit, the
switching output is activated, i.e. the
switch is closed.
63
F
Switching point 2
SP 2
Reserved
ContaminationSensor CS1000
en(us)
Page 34 / 136
BeWa CS1000 3764916d 300 en-us 2017-09-25.docx 2017-09-25
