Hydrajaws 2000 - Default Chapter; Model 2000 Parts; Technical Specifications

2000 Model Tester

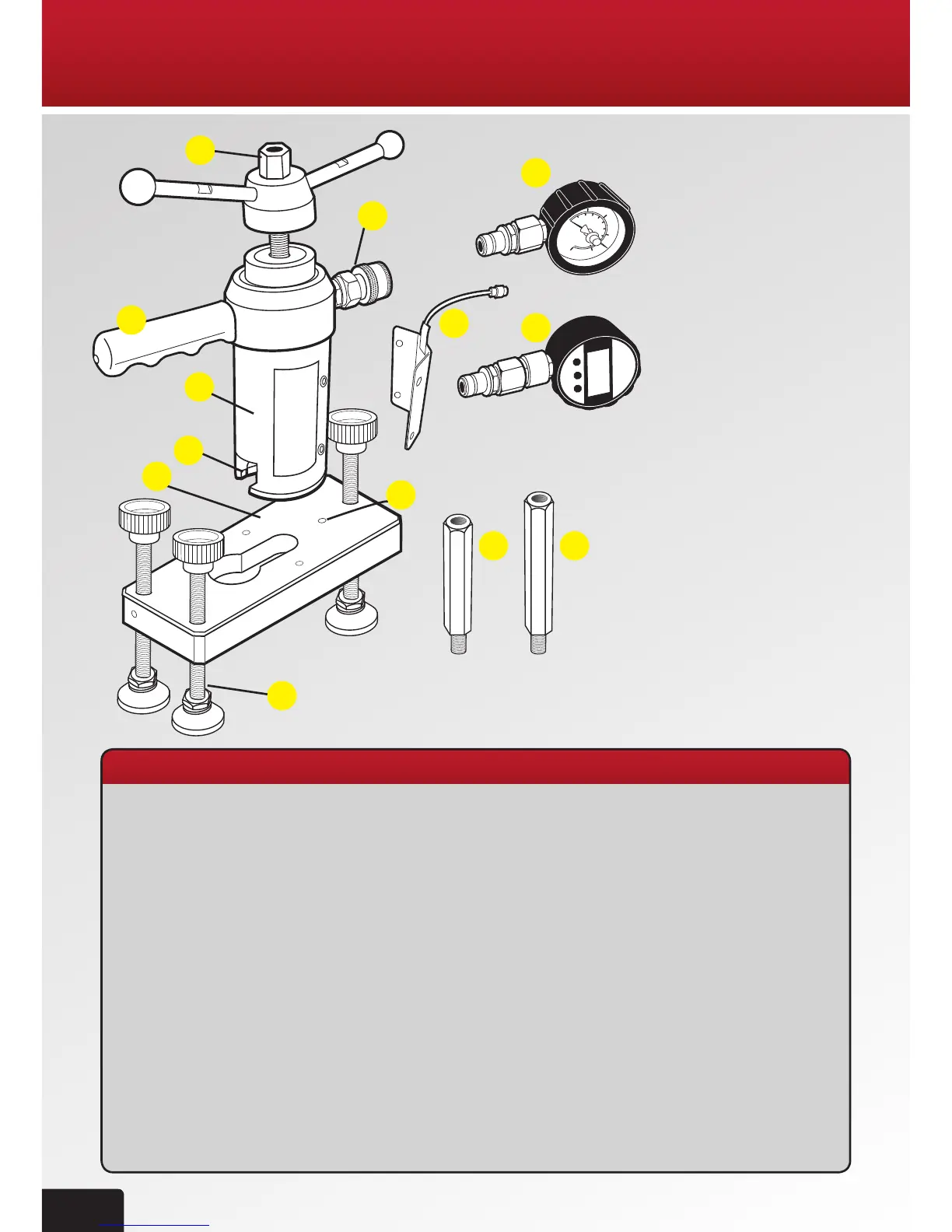

Model 2000 Parts
1. Gauge - Analogue with
QR Hydraulic Coupler
2. Gauge - Digital with
QR Hydraulic Coupler
(optional)
3. Quick release
 couplingwhentted
or gauge (1 & 2)
4. Tester body with
50mm/scale indicator
5. Load jaw
6. Turning handle with
integrated nut
7. Grab Handle
8. Displacement sensor
(Bluetooth option)
9. Level bubble
10. Threaded Legs
11. 75mm Hexagonal
Extension Legs
(optional)
12. 100mm Hexagonal
Extension Legs
(optional)
13. Tester bridge
1
2
4
7
8
9
3
6
10
11 12
5
2
TECHNICAL SPECIFICATIONS
• Pull-out load range 0-25kN/lb/f
• Weight
Tester only 2.2kg
Packaged weight 8kg (will vary)
• Stroke scale 0-50mm
• Effective stroke 50mm
• Loadgauge xedorInterchangeable
• Casing Aluminium
• Loading jaw Pivotable through
360° with Spring
return
• Operating handle Standard size with
integrated 22mm
operating nut for
  connedspaces
Load Gauges
• Ranges available: Digital: 0-30kN
Analogue: 0-5, 0-10, 0-15, 0-20
and 0-25kN/lb/f (5600lbf).
• Accuracy: Analogue to +/-2.5% fsd
Digital to +/-0.5% fsd
• Indicationofpull-outload
• Calibrated in kN
• TraceableUKAScalibrationcerticate
supplied with each gauge
• Protective rubber cover (analogue only)
• Impactresistantglass
• Protection against sudden load relief
 (i.e.suddenfailureofxing)
• Analogue and Digital: peak hold memory
• Working Temperature:
Analogue: -20°C to +60°C
Digital: -30°C to +85°C
13
See section 8 on tting
Hex Extension legs.
