Hydrajaws 2000 - Kit Contents

4
FULL KIT CONTENT RANGE:
1. Model 2000 tester attached to
150 load spreading bridge
2. Oil bottle (Detachable gauge only)
3. Analogue load gauge(s)
4. Digital load gauge(s)
5. Button adaptors slotted set.
4.5, 5.5, 6.5, 8.5, 10.5 & 12.5mm
6. Button adaptors metric set.
M4, M5, M6, M8, M10 & M12
7. Hex socket wrench set 2.5mm
and spare screws
8. M12 ringbolt adaptor clevis
9. M5 threaded rod adaptor
10. M6 threaded rod adaptor
11. M8 threaded rod adaptor
12. M10 threaded rod adaptor
13. M10 threaded stud adaptor
14. M12 threaded stud adaptor
15. M16 threaded stud adaptor
16. M20 threaded stud adaptor
17.Insulationadaptor
18. Bolt tester adaptor
19. 50mm hexagon extension legs
20. 75mm hexagon extension legs
21. 100mm hexagon extension legs
22. 3mm Ball driver
23. 10mm single wrench
24. 22m ratchet spanner
25. M12 locking adaptor (inside tester)
26. Piston key
27.Carryingcasewithfoamller
28.OperatingInstructions
29.CerticateofCalibration
Optional Accessories:
For illustration purposes, this tester kit features
many optional accessories.

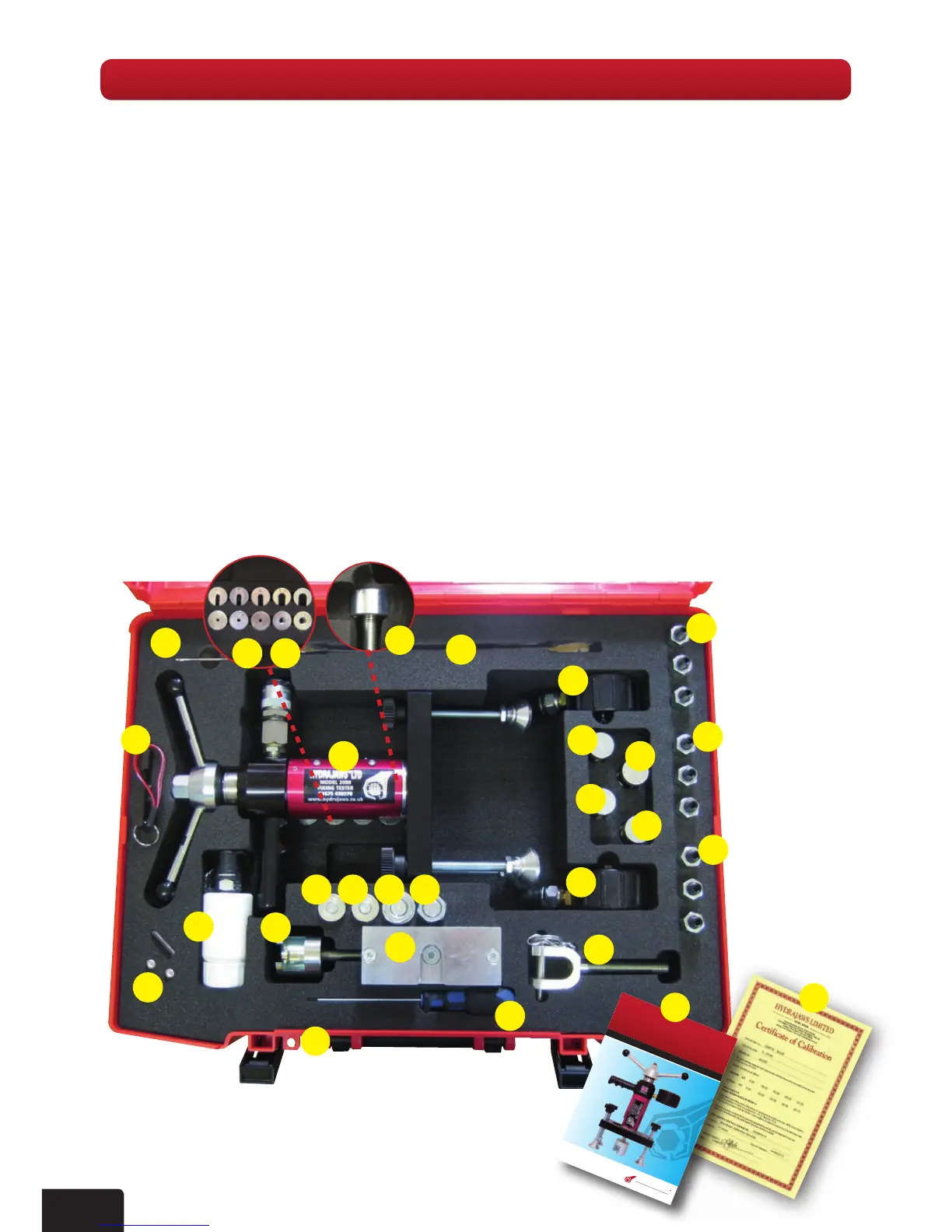

TESTER AND ACCESSORIES
1
24
22
19
16
12
14
15
2
11
8
18
7
4
17
9
13
3
21
20
29
10
Operating Instructions
HYDR A J A W S
LIMITED
2000 Model Tester
28
27
5 6
25
23
26
