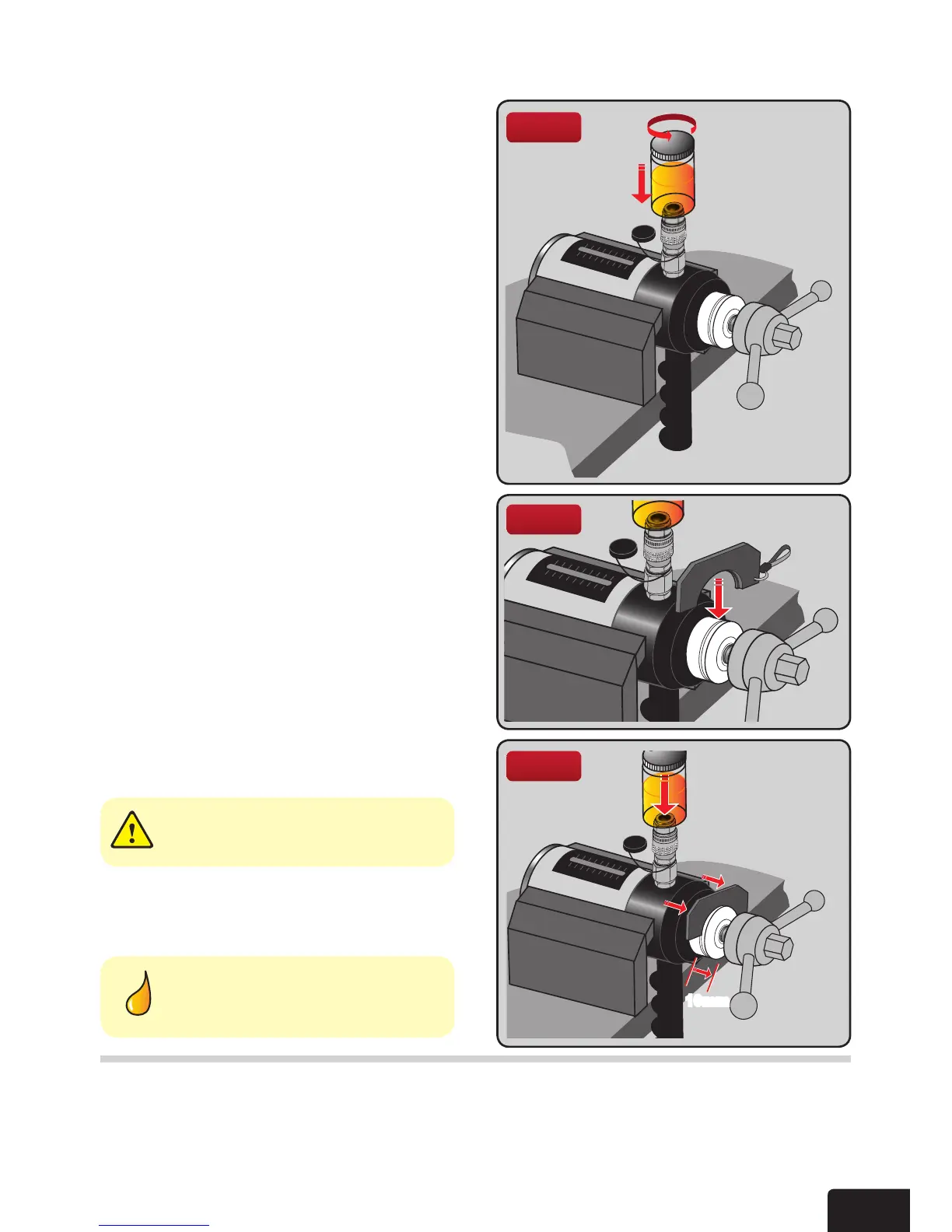

Fig 36
Fig 37
Fig 38
NOTE: A tester with a xed gauge cannot
be lled with oil by the operator.
1. Remove the bridge and all accessories.
2. Secure the tester (e.g. in a vice or other
suitable holding device if on-site) with
the coupler in the vertical position.
3. Connect the oil bottle via the quick
release coupler.
4. Loosen bottle cap (g 36).
5. Turn the handle anti-clockwise a few
turns then using the piston key provided
insert this into the groove on the piston.
Ensure the piston key outer slot is
nearer the piston body (g 37).
6. Force any air out of the system by
pushing the piston in fully then pull on
the piston key and handle until 10mm
away from the inside of the slot. This
will draw oil from the bottle (g 38).
7. Push the piston back in fully, pull out
again and repeat until all the air bubbles
are expelled into the bottle, the oil is
replenished, and piston is 10mm from
face of the body.
8. Remove oil bottle.
Ensure not to pull the piston
out further than 15mm.
Recommended oil:
Light Mineral DTE Type
9.3 CALIBRATION
From the date of purchase, your tester is calibrated for one year. After this time, the tester
should be returned for calibration. Testers with Bluetooth Digital will receive a reminder
message on their digital display, one month from date of renewal.
