6.3. Appendix 3

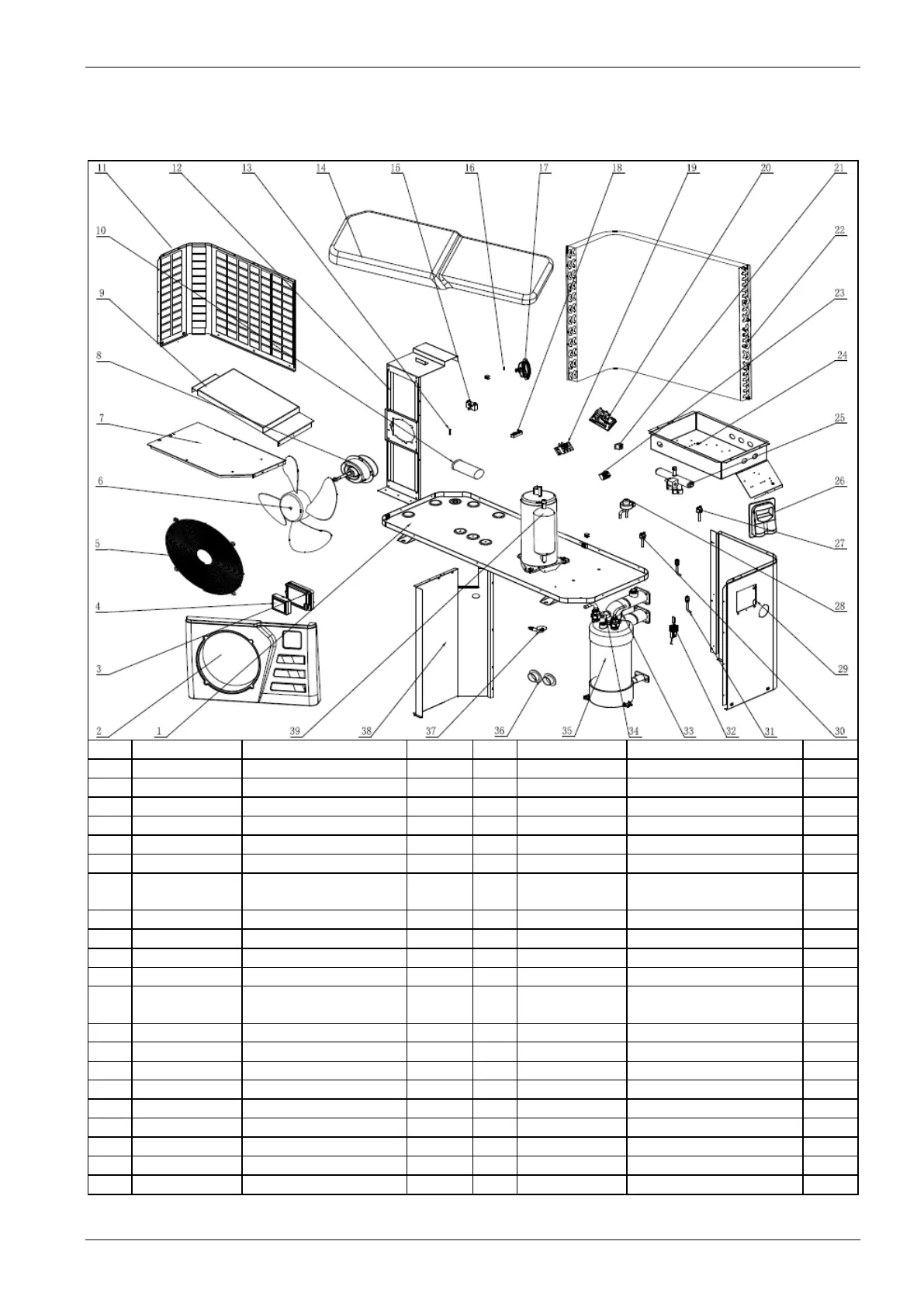

Explosive view Hydro-Pro+Premium 10
NO.
Code
Part name
Note
NO.
Code
Part name
Note
1
32012-210098
chassis
22
32008-120009
condenser
2
32008-220035
front plate
23
2000-3909
2-way wire connector
3
20000-220068
water proof box
24
32012-210078
controller box
4
95005-310208
LCD wire controller
25
2004-1437
4-way valve
5
32012-210080
fan grill
26
32009-220029
wiring box ( black)
6
3500-2701
axial fan
27
2000-3603
low pressure switch
7
32012-210079
controller box cover
28
2002-1451
electronic expansion
valve
8
20000-330214
axial fan motor
29
32008-210096
right plate
9
32008-210099
strutting board
30
2001-3605
high pressure switch
10
2000-3510
compressor capacitor
31
20000-140150
needle valve
11
32008-210097
back grill
32
20000-360005
water flow switch
12
32012-210108
motor trestle
33
2000-3242
outlet water temp
sensor
13
2000-3242
ambient temp sensor
34
2000-3242
inlet water temp sensor
14
32008-210036
top cover
35
32008-120008
titanium heat exchanger
15
2000-3501
fan motor capacitor
36
20000-220013
pipe cover
16
2000-1415
screw
37
3400-2203
drain-pipe joint
17
2000-2802
pressure meter
38
32008-210095
center spacer
18
2001-3901
5-way wire connector
39
2001-1163
compressor(P12)
19
20000-340060
3-way cored wire
20
95005-310145
Pc1001 controller
21
2000-3619
relay
