6.4. Appendix 4

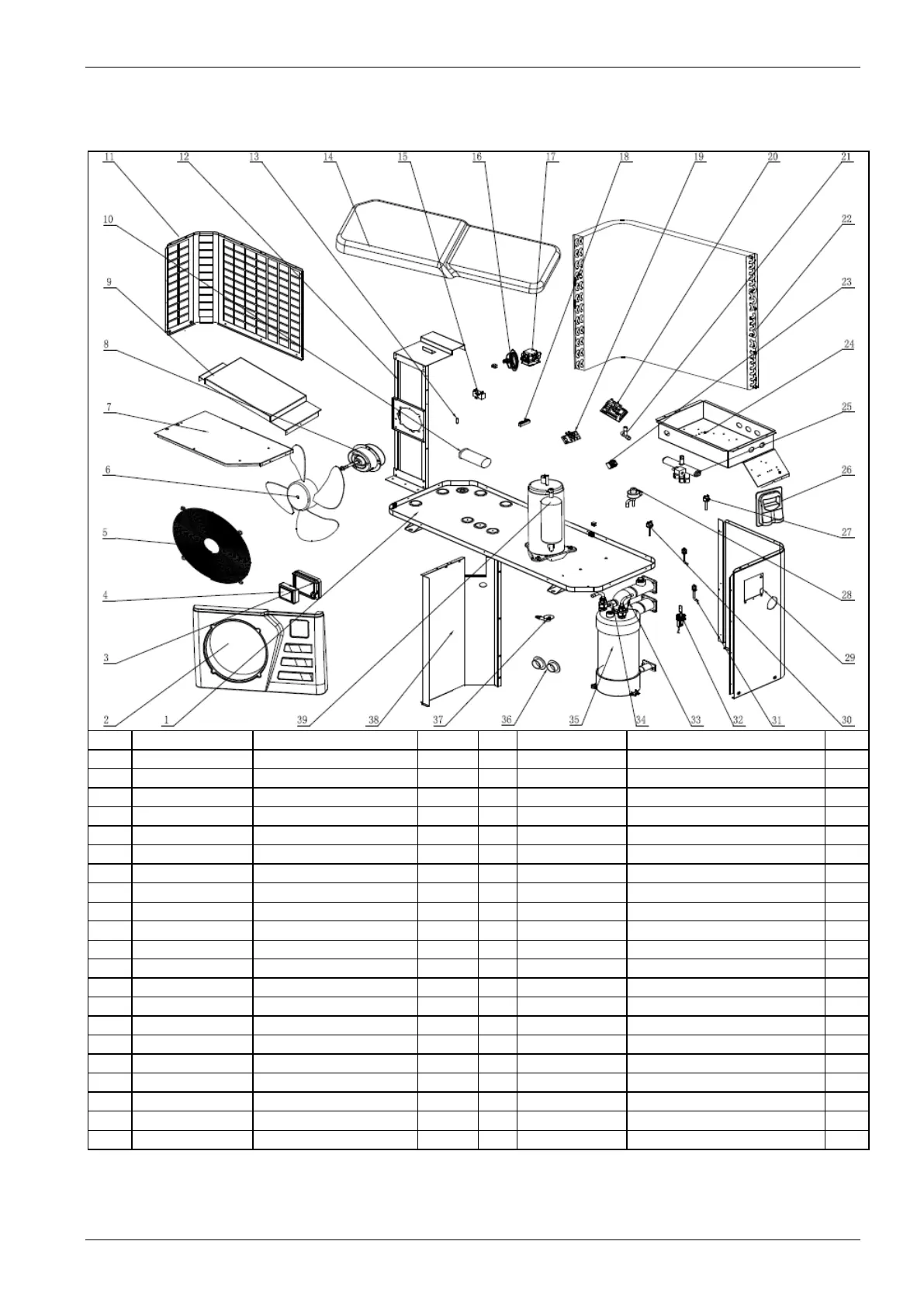

Explosive view Hydro-Pro+Premium 14
NO.
Code
Part name
Note
NO.
Code
Part name
Note
1
32009-210242
chassis
22
35012-120001
condenser
2
32009-220028
front plate
23
20000-340060
3-cored wire
3
20000-220068
water proof box
24
32009-210125
controller box
4
95005-310208
LCD wire controller
25
2004-1437
4-way valve
5
34006-210049
fan grill
26
32009-220029
wiring box C black)
6
20000-270004
axial fan
27
2000-3603
low pressure switch
7
32009-210024
controller box cover
28
20000-140151
electronic expansion valve
8
20000-330212
axial fan motor
29
32009-210131
right plate
9
32009-210025
strutting board
30
2001-3605
high pressure switch
10
2000-3510
compressor capacitor
31
20000-140150
needle valve
11
32009-210130
back grill
32
20000-360005
water flow switch
12
32009-210129
motor trestle
33
2000-3242
outlet water temp sensor
13
2000-3242
ambient temp sensor
34
2000-3242
inlet water temp sensor
14
32009-2210027
top cover
35
32008-120013
titanium heat exchanger
15
2000-3509
fan motor capacitor
36
20000-220013
pipe cover
16
2000-3802
pressure meter
37
3400-2203
drain-pipe joint
17
20000-360006
1-phase AC contactor
38
32009-210124
center spacer
18
2000-3909
2-way wire connector
39
20000-110027
compressor(H51)
19
4000-3901
5-way wire connector
20
95005-310115
Pc1001 controller
21
2000-1460
3-way valve
