6.5. Appendix 5

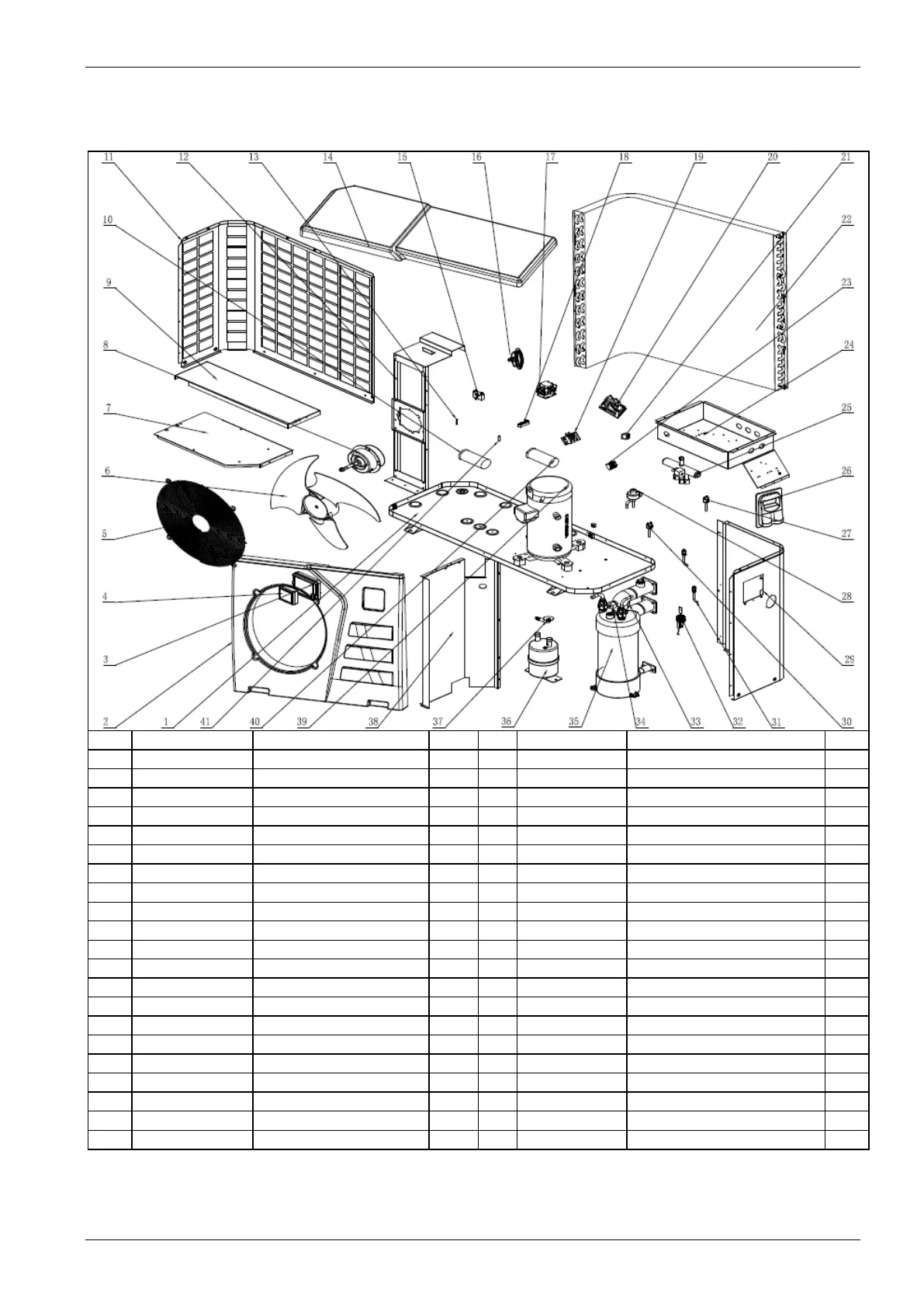

Explosive view Hydro-Pro+Premium 19
NO.
Code
Part name
Note
NO.
Code
Part name
Note
1
32009-210242
chassis
22
35012-120001
condenser
2
32009-220028
front plate
23
2000-3933
3-way wire connector
3
20000-220068
water proof box
24
32009-210125
controller box
4
95005-310208
LCD wire controller
25
2001-1491
4-way valve
5
34006-210049
fan grill
26
32009-220029
wiring box (black)
6
20000-270004
axial fan
27
2000-3603
low pressure switch
7
32009-210024
controller box cover
28
20000-140151
electronic expansion valve
8
20000-330212
axial fan motor
29
32009-210131
right plate
9
32009-210025
strutting board
30
2001-3605
high pressure switch
10
2000-3524
compressor capacitor
31
20000-140150
needle valve
11
32009-210130
back grill
32
20000-360005
water flow switch
12
32009-210129
motor trestle
33
2000-3242
outlet water temp sensor
13
2000-3242
ambient temp sensor
34
2000-3242
inlet water temp sensor
14
32009-220027
top cover
35
32009-120013
titanium heat exchanger
15
2000-3508
fan motor capacitor
36
3500-1401
liquid-vapor separator
16
2000-3802
pressure meter
37
3400-2203
drain-pipe joint
17
20000-360007
1-phase AC contactor
38
32009-210124
center spacer
18
2000-3909
2-way wire connector
39
20000-110053
compressor(S76
19
2001-3920
3-way wire connector
40
20000-350004
compressor capacitor
20
950005-310145
Pc1001controller
21
2000-3676
start relay
