6 APPENDIX
23
6.6. Appendix 6

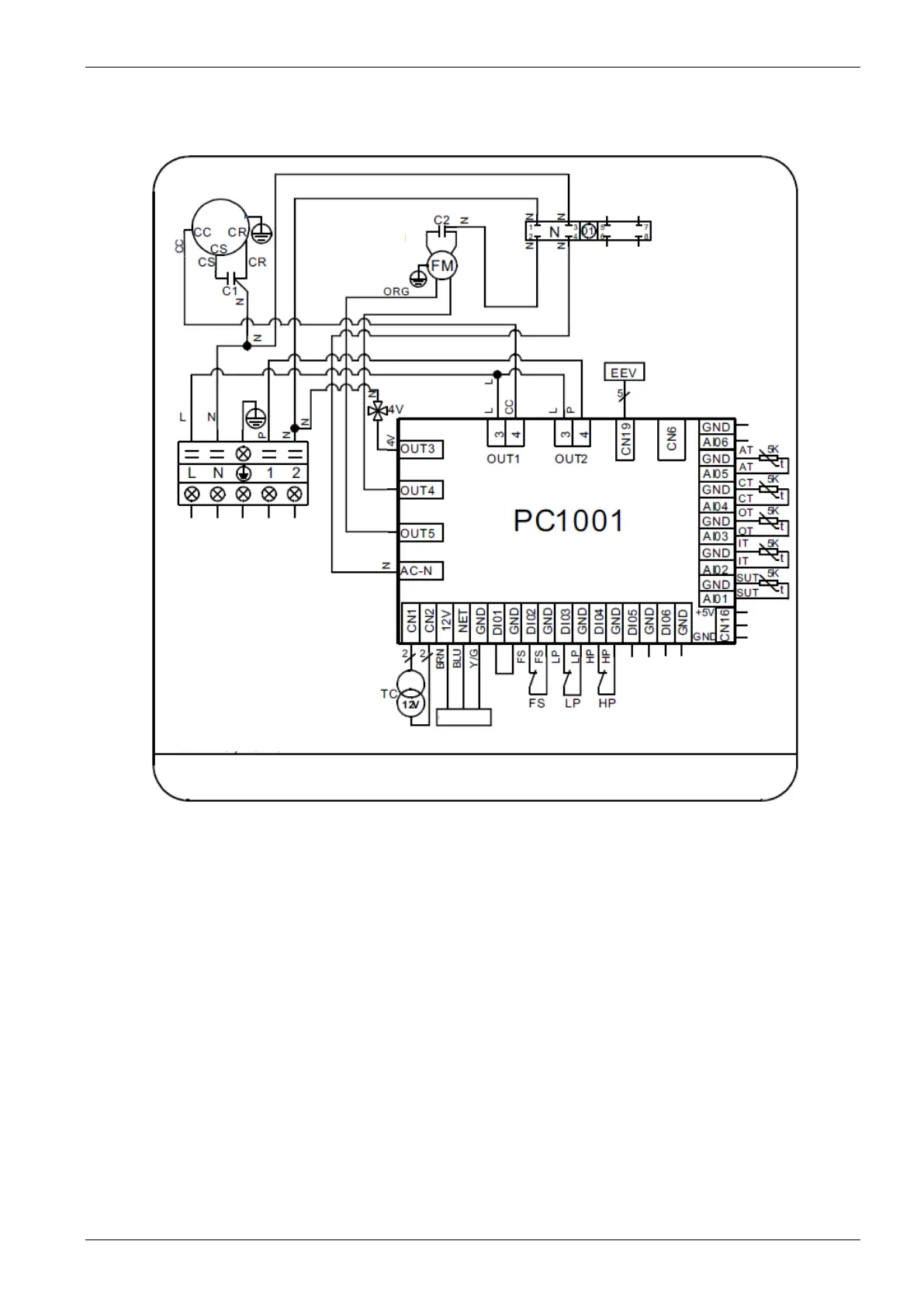

Circuit diagram Hydro-Pro+Premium 7
AT:
Ambient temperature
COMP:
Compressor
CT:
Coil temperature
EEV:
Electronic expand valve
FM:
Fan motor
FS:
Flow switch
HP:
High pressure protection
IT:
Inlet water temperature
LP:
Low pressure protection
OT:
Outlet water temperature
SUT:
Suction temperature
TC:
Transformer
4V:
4 way valve
TO PUMP
TO POWER
SUPPLY
220V-240V~/50Hz
Controller
BLK
WHT
RED
BLK
RED
BLU
RED
BLU
Hydro-Pro + Premium 7
COMP
