Hydrovane Pro - Menu Structure (Values Are Examples)

1.0 Operator Controls
8 CC1092267A

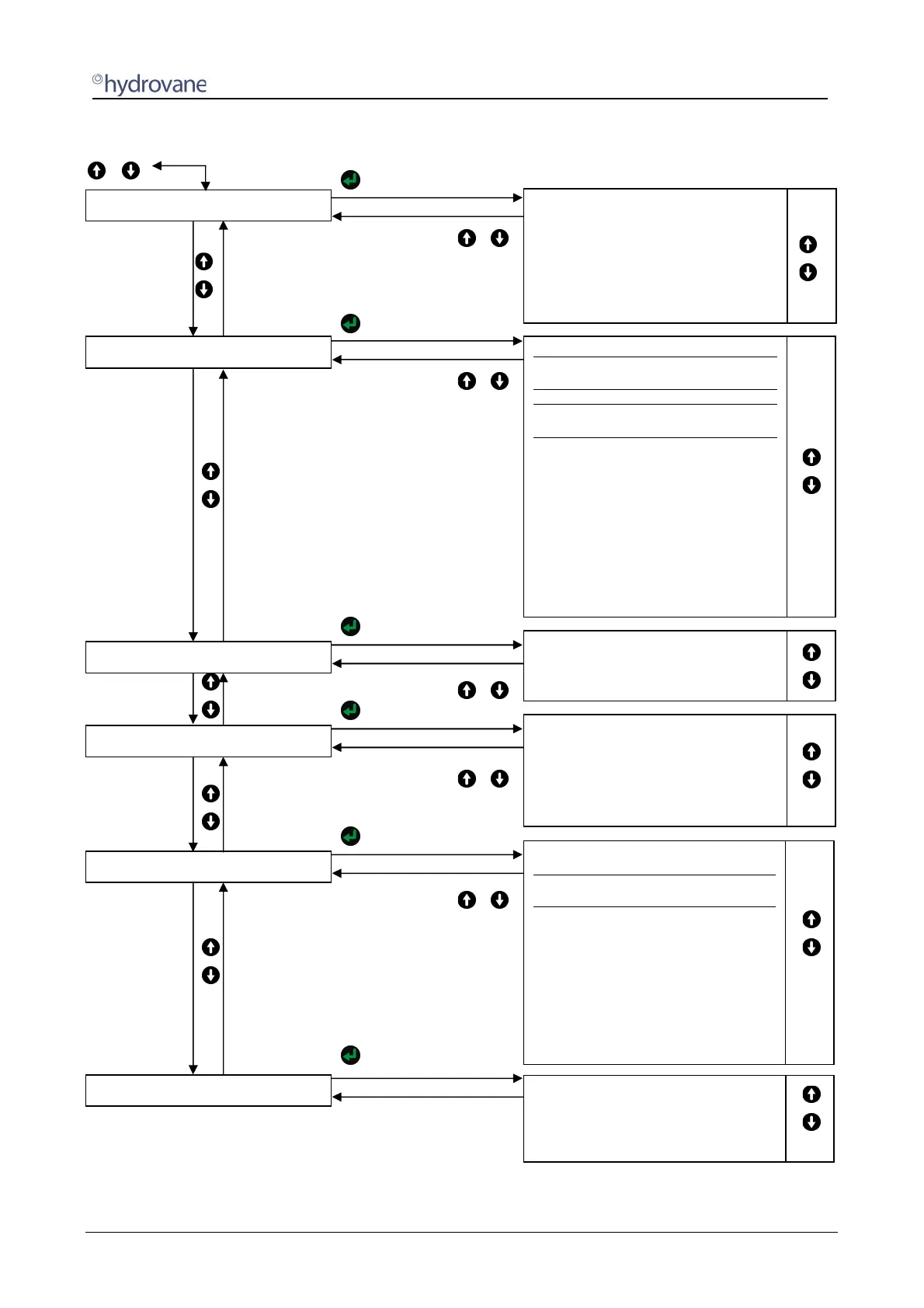

1.7 Menu structure (values are examples)
+
SS = SINGLE SPEED / RS = REGULATED SPEED
INPUT 1: FAN FAULT
INPUT 2-5 FREE:
OUTPUT 1 OFF
OUTPUT 2 FAN TEMP CONTROL
INTERNAL TRANSDUCER OFF
DESIGN PRESS 8.0bar
START PROTECT 2.0bar
HEAVY STARTUP (SS) 3.5bar
EXT. LIMIT (RS) 2000RPM
FINAL TEMP WARN 107ºC
FINAL TEMP MAX 110ºC
MIN START TEMP 0ºC
SOFT STOP 2s
MAX START PER HOUR 10
FAN ON TEMP 85°C
FAN OFF TEMP 75°C
FAN RUN ON 180s
STAR DELTA TIME (SS) 1s
SOFTWARE: HPro-Vx.xx
PROFILES 1-7 & p
2
1-7 NONE SET
TH 08.02.07 13:55:41
1 _______________________ 00:00 00:00:
7 _______________________ 00:00 00:00:
p
2
1 _____________________ 00:00 00:00:
p
2
7 ______________________00:00 00:00
ERRORS 1-20 READ ONLY
02!EM-STOP 12345h
01!EM-STOP 12300h
CUT-OUT POINT 8.5bar
CUT-IN POINT (SS) 7.5bar
TARGET PRESSURE (RS) 8.0bar
p
2
CUT-OUT POINT 8.5bar
p
2
CUT-IN POINT (SS) 7.5bar
p
2
TARGET PRESSURE (RS) 8.0bar
RUN ON TIME 60s
AUTOMATIC OPERATION
ENABLE REMOTE-START OFF
TIMER CONTROL OFF
p
2
TIMER CONTROL OFF
AUTO RESTART OFF
POWER LOSS TIME 2s
START-UP DELAY 5s
DRYER PRE-RUN 0min
RS485-PROTOCOL ModBus
RS485-BAUDRATE 19200
RS485-ADDRESS 1
[MAINTENANCE SCHED]
[CONTROL MENU]
[OPTIONAL IN-/OUTPUTS]
[LIMIT VALUES]
TOTAL RUNNING 12345h
LOADED HOURS 10987h
AIR FILTER IN 2000h
OIL FILTER IN 2000h
SEPARATOR IN 4000h
OIL CHANGE IN 4000h
OIL TYPE FF2000/CLEAR
SHUTDOWN DEACTIVATED
+
+
+
+
+
[TIMER CONTROL]
[FAULT MEMORY]
