Hydrover OXYMATIC smart - Electrical Connections and Wiring

Installation, Programming and Maintenance User Guide Oxymatic Smart
V. 1.3.2. May 2015


14


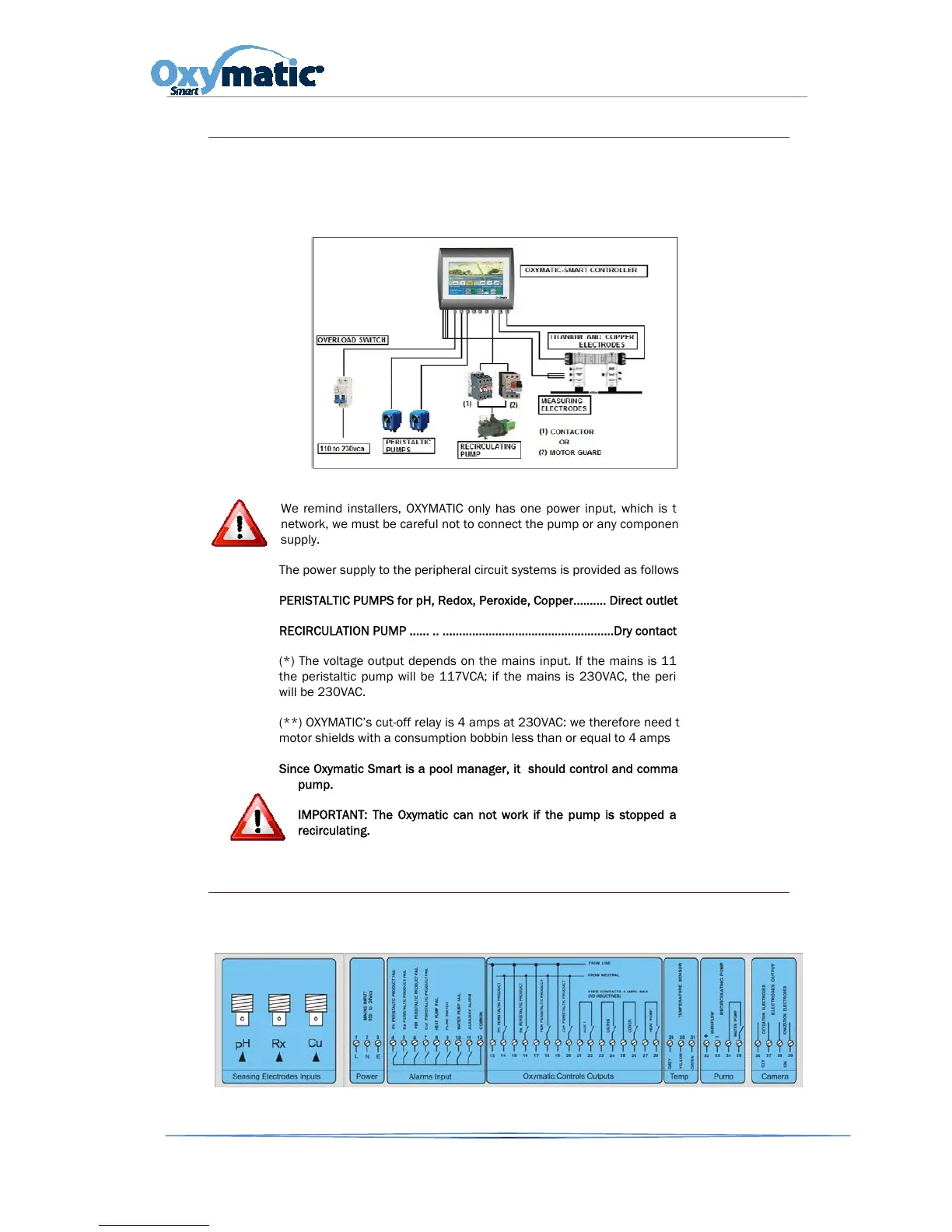

5.2. ELECTRICITY
The equipment is shipped ready to be used in the installations 100v to 230v, no need for any power
adapter, but we recommend installing a motor protector before connecting to the mains, to avoid any
possible increase in the tension which severely affects the electronics of Oxymatic, (these problems do
not cover the warranty. (See image)
We remind installers, OXYMATIC only has one power input, which is the computer to the
network, we must be careful not to connect the pump or any component to the main power
supply.
The power supply to the peripheral circuit systems is provided as follows:
PERISTALTIC PUMPS for pH, Redox, Peroxide, Copper………. Direct outlet to the mains (*)
RECIRCULATION PUMP ...... .. ....................................................Dry contact (**)
(*) The voltage output depends on the mains input. If the mains is 117VCA, the output to
the peristaltic pump will be 117VCA; if the mains is 230VAC, the peristaltic pump output
will be 230VAC.
(**) OXYMATIC’s cut-off relay is 4 amps at 230VAC: we therefore need to use contactors or
motor shields with a consumption bobbin less than or equal to 4 amps at 230VAC.
Since Oxymatic Smart is a pool manager, it should control and command the recirculation
pump.
IMPORTANT: The Oxymatic can not work if the pump is stopped and the water is not
recirculating.
5.3. INTERCONNECTIONS
We show below the connections that can be made with OXYMATIC Smart. Firstly, a general view of the
input terminals, then the detail of the various connections of the input and output signals.
