Installation, Programming and Maintenance User Guide Oxymatic Smart
V. 1.3.2. May 2015
17
NOTE:
All connections are free of tension except of the metering pumps which are 230 Vac.

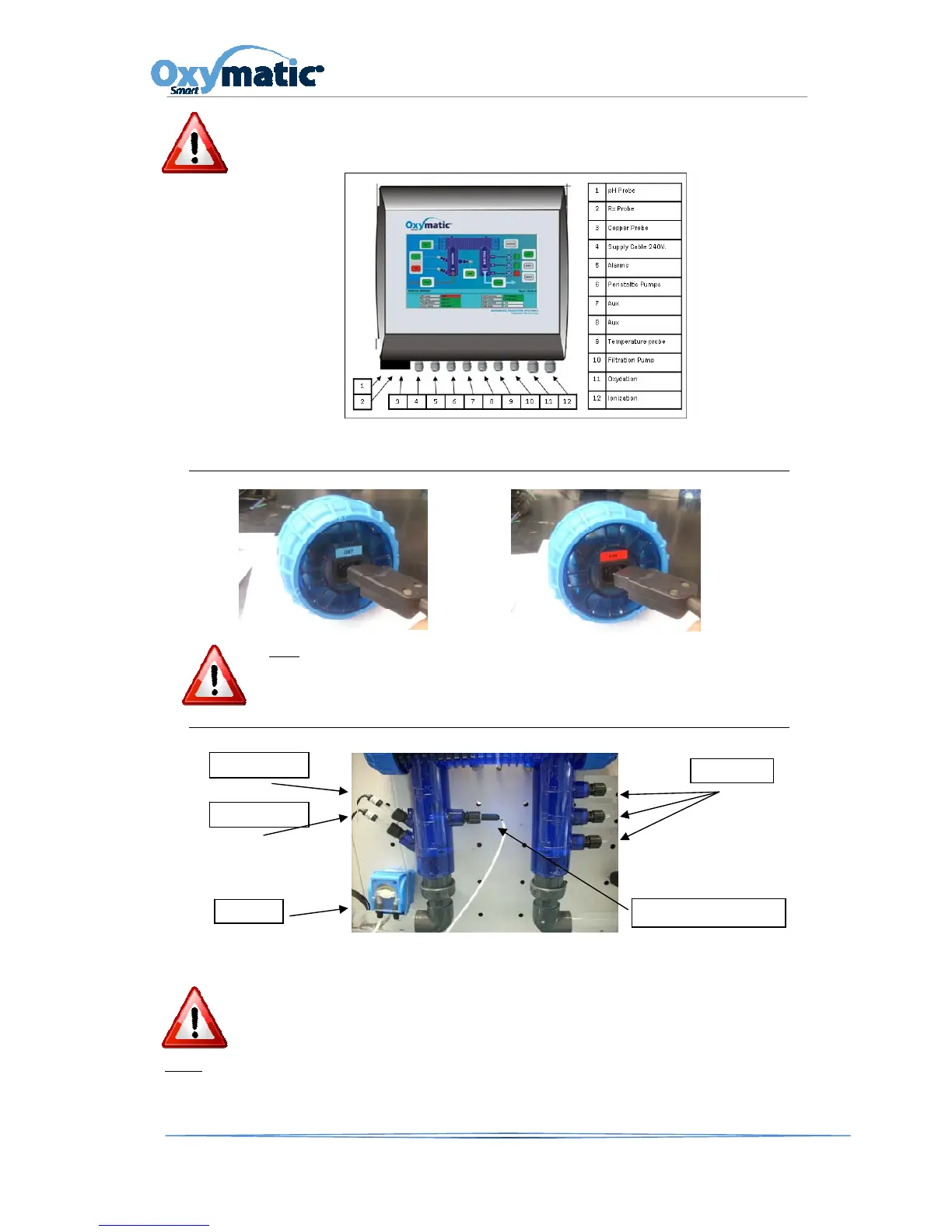

Once the control unit OXYMATIC is fixed, we will connect the wires to the various components.
5.6. CONNECTIONSOFTITANIUMANDCOPPERELECTRODES
NOTE
: Ensure that the cables are in the corresponding terminals:
Blue Titanium / Oxidation Red: Copper / Ionization
5.7. CONNECTIONSOFTHEPROBES,INJECTORSANDPUMPS.
For installation of the pH sound chamber and the injection canal, one should use the sound holder which is
included and then proceed with the order shown in the photo.
ATTENTION: The pH injection canal must be positioned at the end of the water circuit to avoid acid
contacting with the electrodes and / or different parts of metals (filter, water pump, heat pump,
exchangers,,,) and this could cause deterioration of the same.
NOTE:
Once the connections have been verified, connect the Oxymatic to the outlet and using the MODE button
press AUTO. Once this has been carried out, the equipment will now work using the preinstalled Systems.
