6. Range extender (optional)
Your e-bike system can be equipped with the (optional) range extender to extend your
travel range with riding assist.
With the range extender installed, the battery charge indicator on the console will show
the total capacity of the two batteries. The LEDs on the extender battery only show the
range extender capacity.
6.1. Range extender overview
6.2. Technical data of the range extender
⚠
CAUTION
To use the range extender battery, you shall follow the same rules stated in Chapter 4 –
Battery handling instructions.
Item Specication
Rated voltage 36 V
Nominal capacity 6.6 Ah
Energy 250 Wh
Operating temperature
Charge: 0°C (32°F) to 45°C (113°F)
Discharge: -20°C (-4°F) to 60°C (140°F)
Storage temperature
1 month -20°C (-4°F) to 50°C (122°F)
3 months -20°C (-4°F) to 40°C (104°F)
1 year -20°C (-4°F) to 20°C (68°F)
Permitted charging temperature range 0°C (32°F) to 45°C (113°F)
Protection rating IPX5
Weight, approx. 1.49 kg (3.28 lbs)
C
A
B
D
E

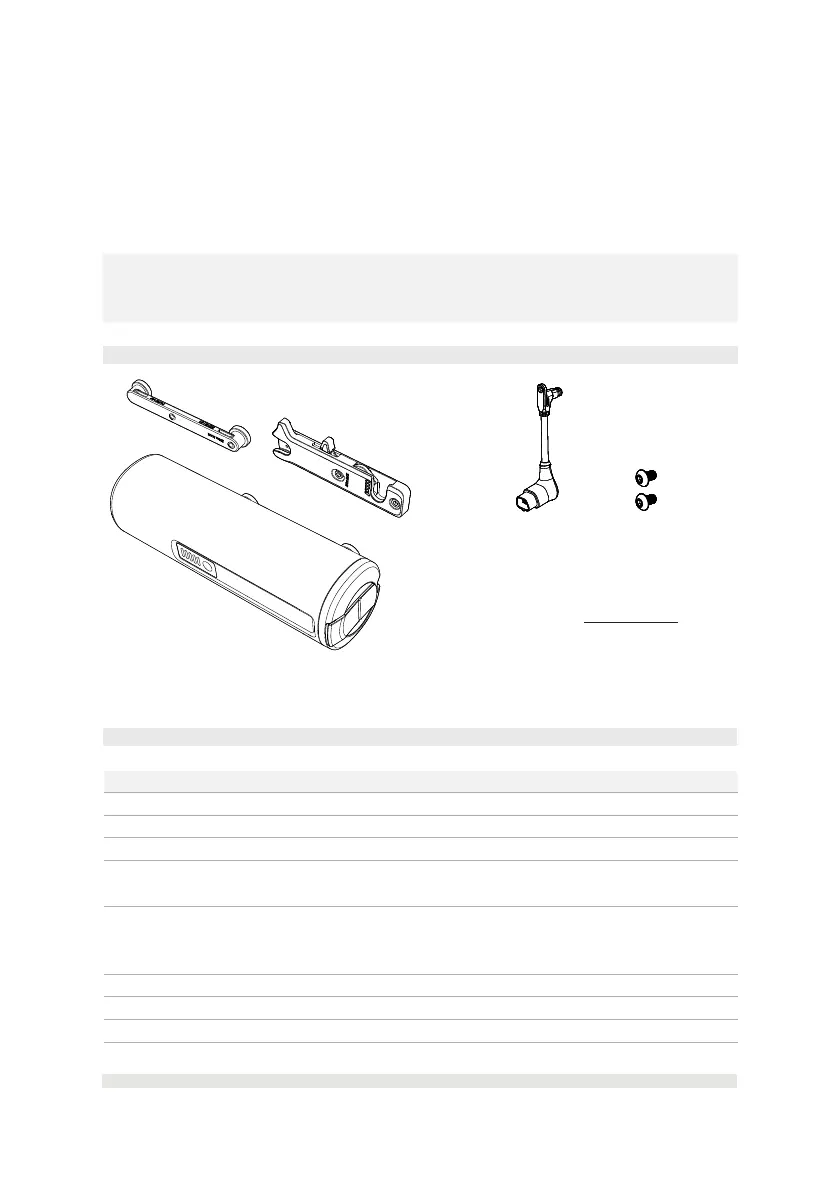

A. Range extender mounting plate
B. Range extender bottle cage adapter
C. Range extender battery (250 Wh)
D. Downtube cable (sold separately*)
E. M5x12 mm bolts and M5 washers
(2 pieces each)
*Trek part number downtube cable: 5255915
To Next Page
