The bottle cage adapter allows you to t a bottle cage of your choice to the mounting plate
instead of the range extender battery.
Please install the bottle cage on the adapter and follow the instructions below to install the
adapter properly to the mounting plate:
Align the upper bottle cage adapter’s lock
tab with the top insertion of the mounting
plate.
Next, turn the lower lock tab of the bottle
cage adapter to the bottom insertion of the
mounting plate. It should snap in and lock
in place.
Make sure the bottle cage adapter is rmly
attached to the mounting plate.

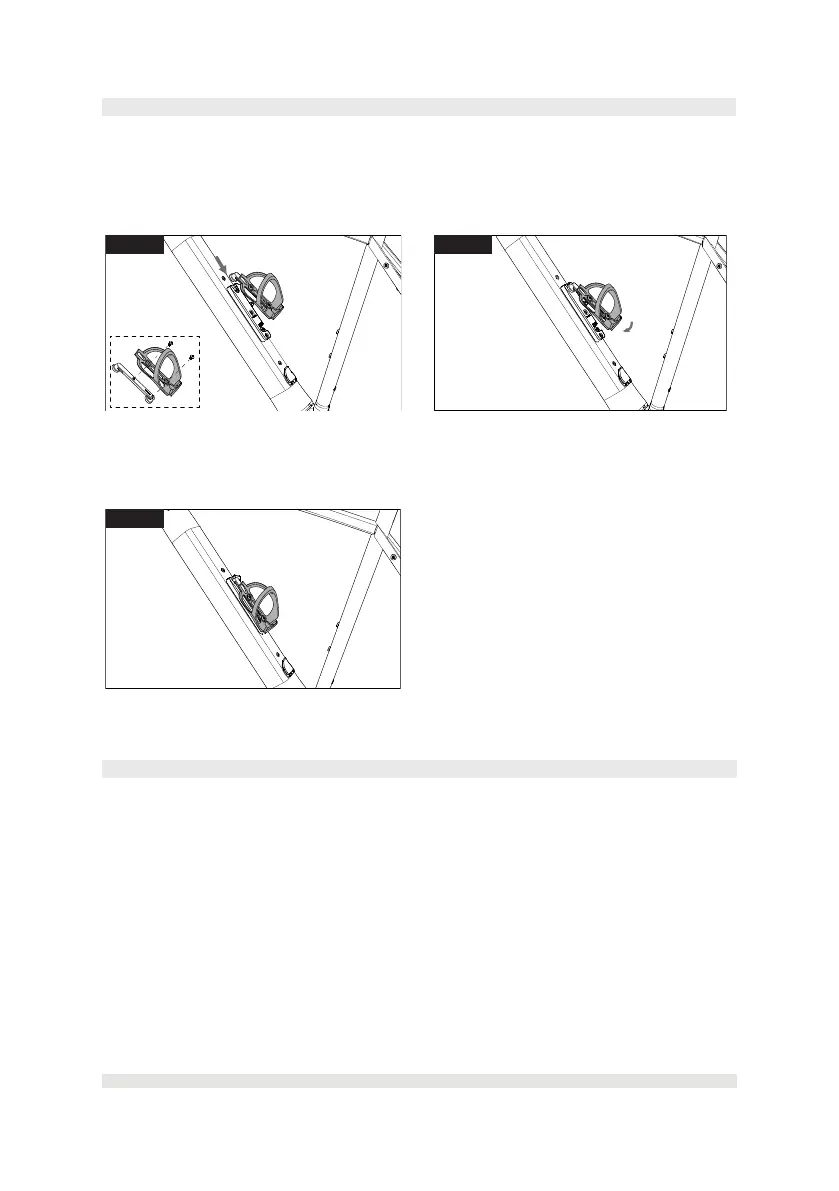

STEP 1
STEP 3
6.6. Mounting the bottle cage adapter
To remove the bottle cage adapter:
1. Turn the adapter from the bottom insertion to loosen the lower snap from the mounting
plate.
2. Move the adapter upwards to unhook it from the mounting plate.
3. Pick up the adapter towards you to remove it from the mounting plate.
STEP 2
6.7. Removing the bottle cage adapter
