Copper Tubing Installation and Connection
Use these instructions in conjunction with this Manual's
Section on Tubing Installation, Page 8.
1. Use 5/16" OD soft copper refrigeration type tubing.
2. Use standard 45° flares for fittings. Be careful to make
good flares and do not allow dirt or chips into the system.
DO NOT use pipe dope on fitings. Refer to cautions in this
manual.
3. All tubing runs outside the engine room should be run
together. (Single-bundled)
4. Inside the engine room, lengths of tubing on each side of
the same circuit should be essentially the same length.
5. If desired, short lengths (maximum 24") of Aeroquip
2651-5 Hose with 401-5B Fittings may be used for the
transition from hull-mounted to engine-mounted tubing.
This will prevent work-hardening of the copper from
flexing and vibration. Again, make sure no dirt or chips
are introduced into the hose ends or damage and
malfuntion of the system may occur.
The following figures illustrate the proper connections for
copper tubing installation between components of the En-
gine Contol System.

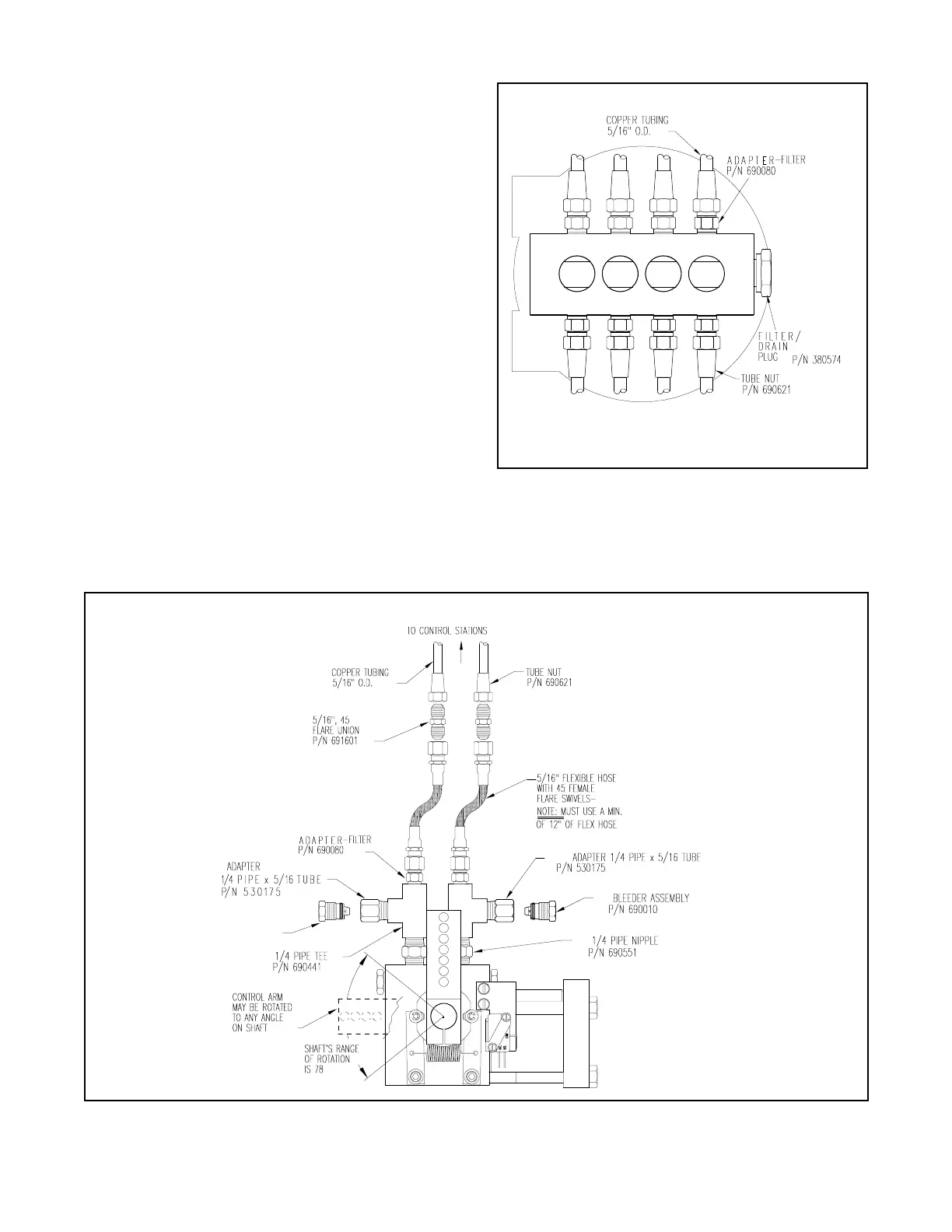

Figure 16. ST-06 Integrated Throttle Slave
Figure 15. Charging Valve on Bottom of
R-13 Integrated Reservoir
