Page 20 of 36 Pages
* - Part of Seal Kit, ECS-06
Consists of:
2 Dill Valves 160061
2 O-Rings 211010
1 O-Ring 211018
1 O-Ring 211020
1 O-Ring 211027
2 O-Rings 211028 (1 extra)
1 O-Ring 211030
1 O-Ring 211125
1 Seal 224011
2 Rings 252125
1 Wiper 700088
1. Lever Arm 610024 1
2. Screw 240057 1
3. Spacer 540018 1
4. * Wiper 700088 1
5. * O-Ring 211018 1
6. * Quad Seal 224011 1
7. Bushing 630044 1
8. * O-Ring 211027 1
9. Bearing Race 190005 2
10. Bearing 190002 1
11. Pinion Assembly 720150 1
12. Body 901054 1
13. Cylinder Assembly 501120 1
14. * O-Ring 211020 1
15. Cylinder End (Eccentric) 560034 1
16. * O-Ring 211028 1
17. Piston Assembly 600070 1
18. * Teflon Back-Up Ring 252125 2
19. * O-Ring 211125 1
20. Cylinder Tube 500131 1
21. Tube 500164 1
22. * O-Ring 211010 2
23. * O-Ring 211030 1
24. Plate 520634 1
25. Bolt 240717 2
26. * Dill Valves (w/red seal) 160061 2
Item Description Part No. Qty.

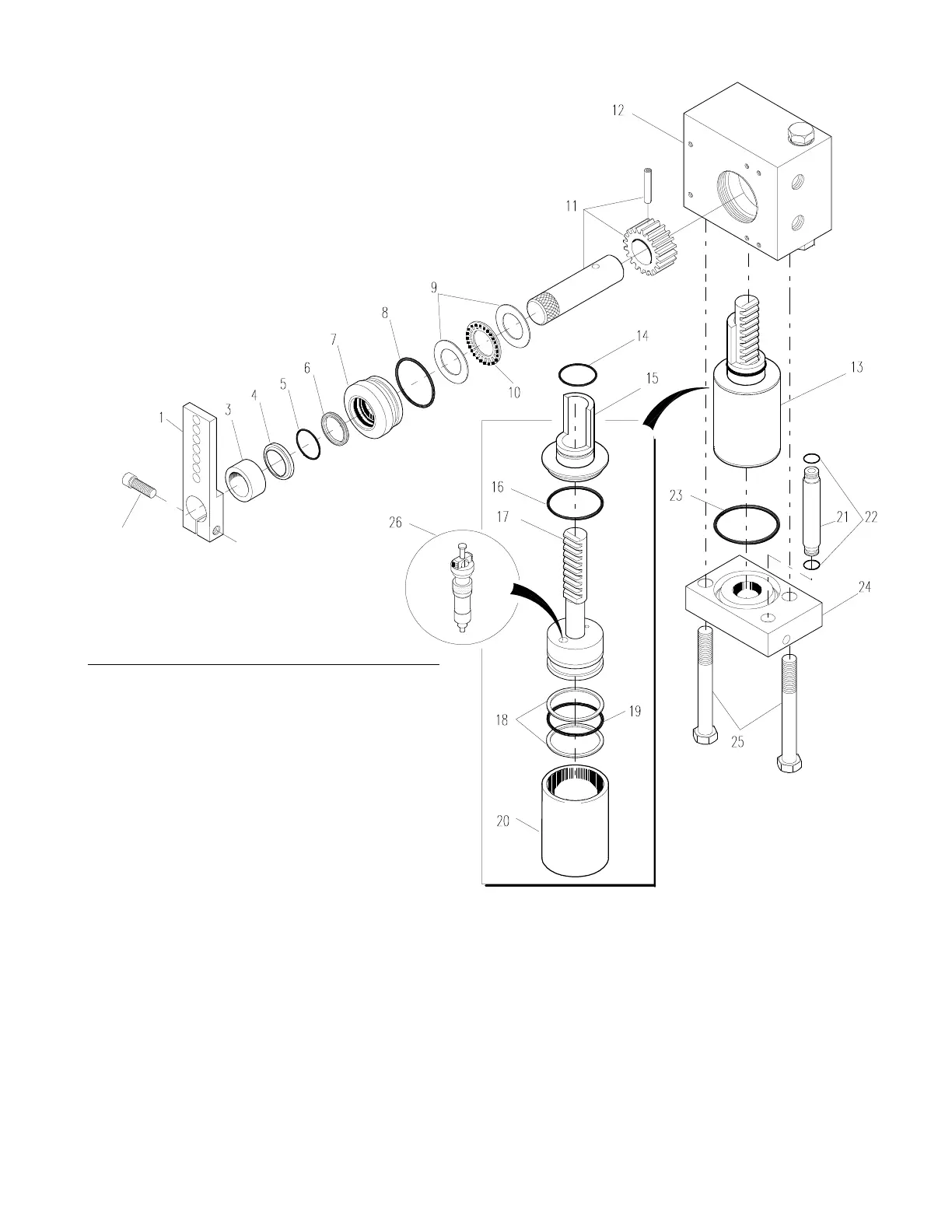

Figure 22. ST-06 Throttle Slave Assembly
Parts List (Continued)
To Next Page
