Page 21 of 36 Pages
* - Part of Seal Kit, ECS-06
Consists of:
2 Dill Valves 160061
2 O-Rings 211010 (not used)
1 O-Ring 211018
1 O-Ring 211020
1 O-Ring 211027
2 O-Rings 211028
1 O-Ring 211030 (not used)
1 O-Ring 211125
1 Seal 224011
2 Rings 252125
1 Wiper 700088
Parts List (Continued)

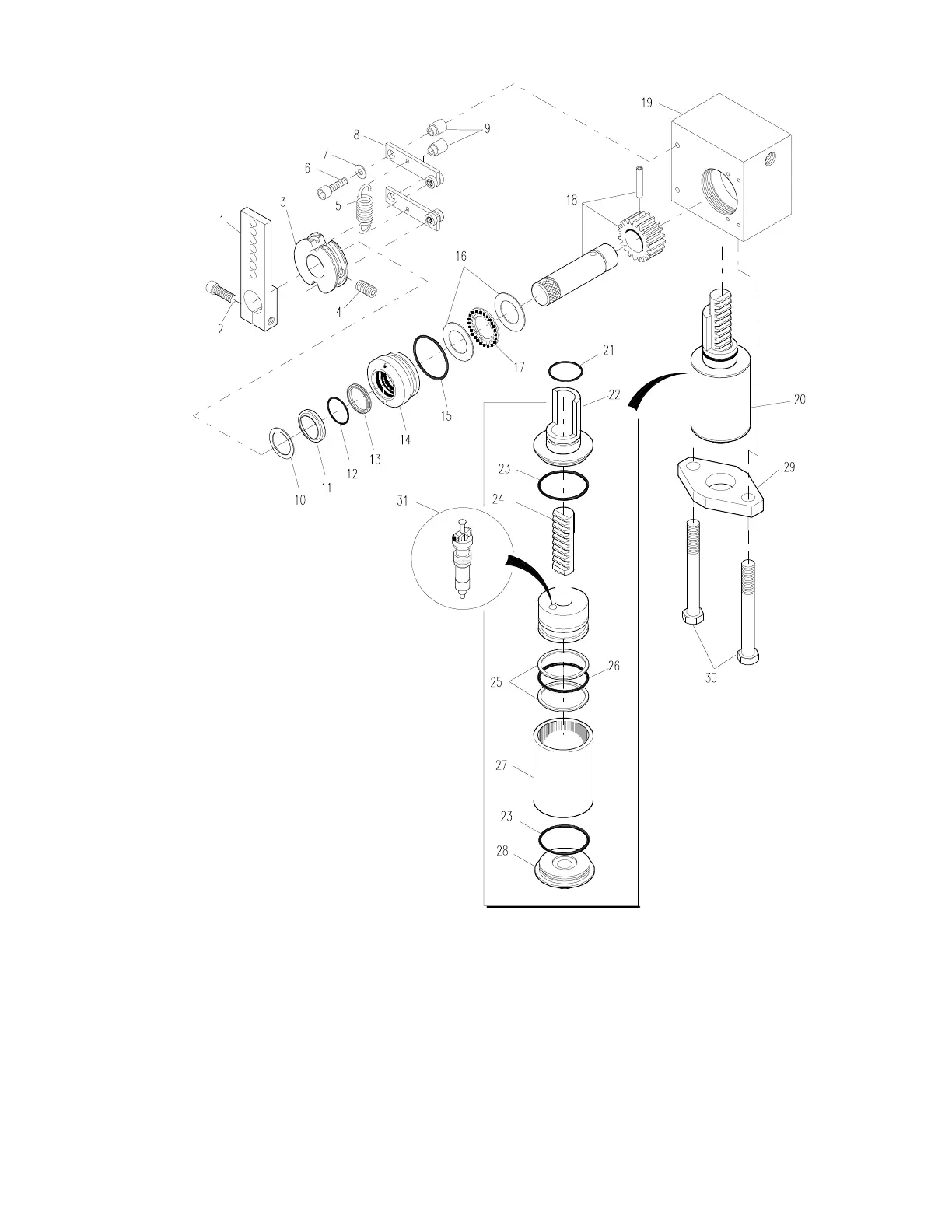

Figure 23. Transmission Slave Assembly
Item Description Part No. Qty.
1. Lever Arm 610024 1
2. Screw 240057 1
3. Cam 730014 1
4. Setscrew 240357 1
5. Spring 430296 1
6. Screw 240337 2
7. Washer 260067 2
8. Detent Assembly 730020 2
9. Bushing 630051 2
10. Washer 740018 1
11. * Wiper 700088 1
12. * 0-RIng 211018 1
13. * Quad Seal 224011 1
14. Bushing 630044 1
15. * 0-Ring 211027 1
16. Bearing Race 190005 2
17. Bearing 190002 1
18. Pinion Assembly 720150 1
19. Body 900254 1
20. Cylinder Assembly 500120 1
21. * 0-Ring 211020 1
22. Cylinder End (Eccentric) 560034 1
23. * 0-Ring 211028 2
24. Piston Assembly 600070 1
25. * Teflon Back-up Ring 252125 2
26. * 0-Ring 211125 1
27. Cylinder Tube 500131 1
28. Cylinder End 560064 1
29. Plate 520014 1
30. Bolt 240717 2
31. * Dill Valve (w/red seal) 160061 2
