Appendix C – robotiC AppliCAtions
HPR400XD Auto Gas – 806160 c-3
Rotational mounting sleeve (optional) – 220864
The rotational sleeve is designed for use in applications where the torch
leads are twisted repeatedly. It is an optional component, and does not
need to be used to use the torch leads listed above. The length of the
rotational sleeve is 114.3 mm (4.5 in).
Rotational mounting sleeve clamp – 220900
The rotational sleeve has a larger diameter than standard sleeves (57 mm/2.25 in).
Leather overwrap – 024866
The leather overwrap is 3 m (10 ft) long, and is designed to be installed
over the leads from where they attach to the torch. This adds protection in
applications where molten metal will splash back on the leads.
Robotic teaching torch (laser pointer) – 228394
• Mountthelaserpointerinthetorchsleevetoprovideaccuratepositioning
and alignment of the torch.
• Useforonlineprogramming/teachingandroboticalignmentsystems.

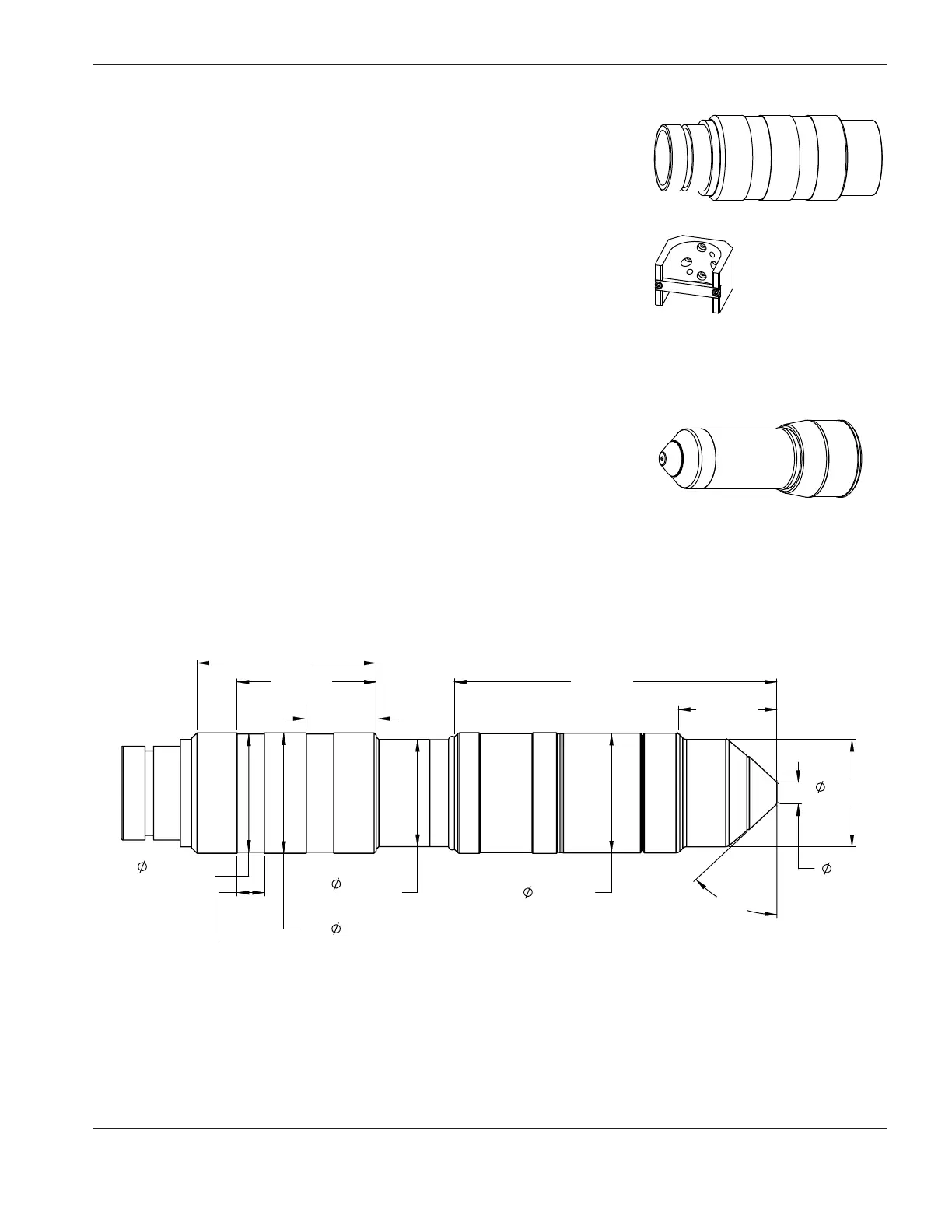

Torch and rotational mounting sleeve dimensions
47°
84.84 mm
(3.34")
65.79 mm
(2.59")
33.02 mm
(1.30")
152.65 mm
(6.01")
37.08 mm
(1.46")
46.74 mm
(1.84")
10.16 mm
(0.40")
50.80 mm
(2.00")
56.64 mm
(2.23")
57.02 mm
(2.245")
3 X
50.67 mm
(1.995")
56.01 mm
(2.205")
2 X
2 X 12.95 mm
(0.51")
