InstallatIon
3-48 HPR400XD Auto Gas – 806160
Torch mounting and alignment
Mounting the torch

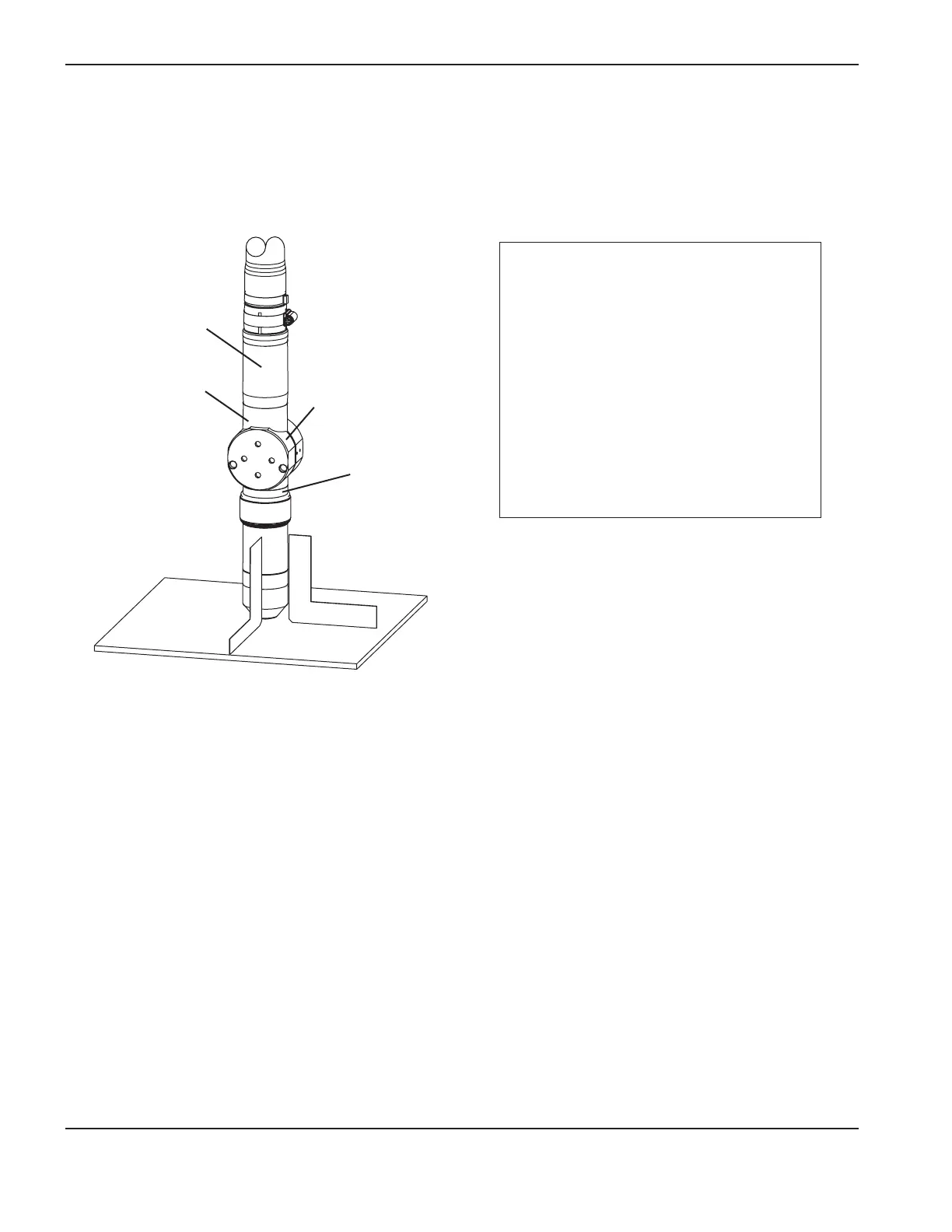

Torch alignment
To align the torch at right angles to the workpiece, use a square. See figure above.
Installation
1. Install the torch (with torch leads
attached) in the torch mounting bracket.
2. Position the torch below the mounting
bracket, so that the bracket is around the
lower portion of the torch sleeve but not
touching the torch quick-disconnect.
3. Tighten the securing screws.
Note: The bracket should be as low on the
torch sleeve as possible to minimize
vibration at the tip of the torch.
Lower torch sleeve
Torch mounting
bracket
(customer supplied)
Upper torch sleeve
Quick-disconnect
receptacle
