Hypertherm HyPerformance HPR400XD Auto Gas

InstallatIon
3-22 HPR400XD Auto Gas – 806160
3
3
Female end to ignition console
Part no. Length Part no. Length
123419 3 m (10 ft) 123425 22.5 m (75 ft)
123834 4.5 m (15 ft) 123736 25 m (82 ft)
123420 6 m (20 ft) 123426 30 m (100 ft)
123670 7.5 m (25 ft) 123672 35 m (115 ft)
123422 9 m (30 ft) 123938 37.5 m (125 ft)
123835 10 m (35 ft) 123673 45 m (150 ft)
123423 12 m (40 ft) 123837 60 m (200 ft)
123671 15 m (50 ft) 123838 75 m (250 ft)
123836 20 m (65 ft)
Cable signal list – power supply to ignition console
Power supply end Ignition console end
Pin No. Description Pin No.
1 120 VAC-Hot 1
2 120 VAC-Return 2
3 Ground 3
4 Not used 4

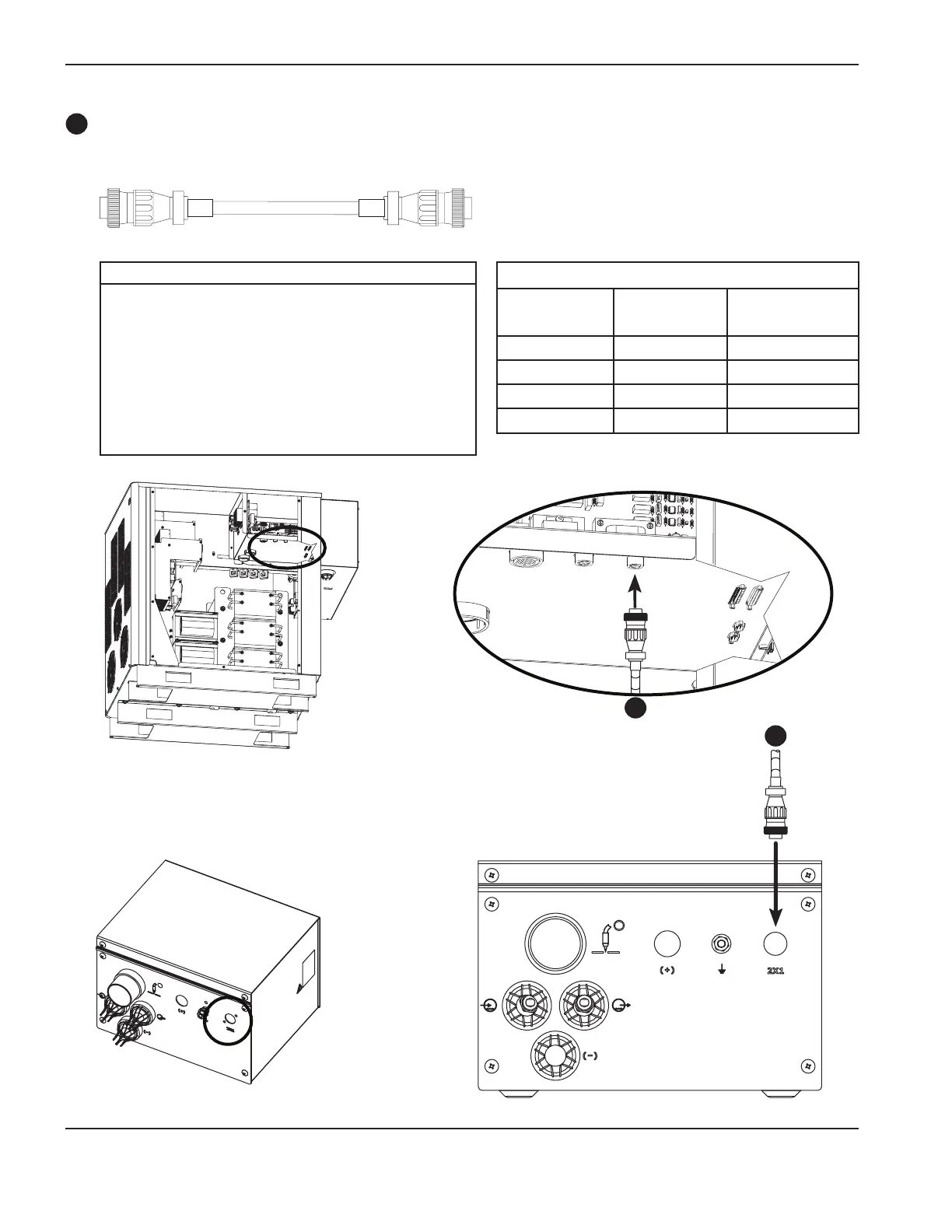

Ignition console power cable
3
