Hypertherm HyPerformance HPR400XD Auto Gas

InstallatIon
3-40 HPR400XD Auto Gas – 806160

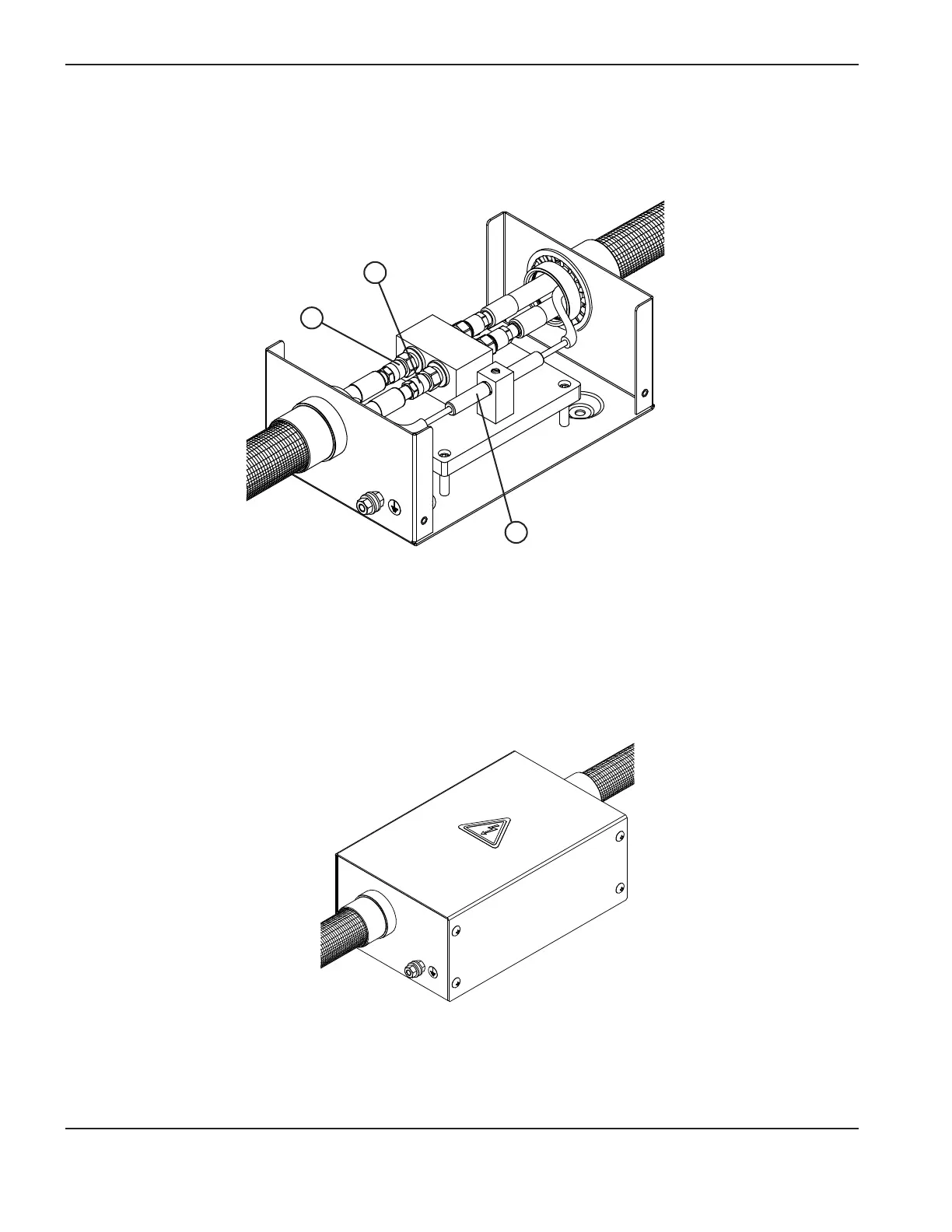

Lead from the torch to the junction box
1. Connect the lead from the torch to the junction box.
1 Coolant supply hose (green) 3 Pilot arc lead (yellow)
2 Coolant return hose (red)
2. Install the junction box cover.
From the ignition console
From the torch
1
2
3
