InstallatIon
3-46 HPR400XD Auto Gas – 806160

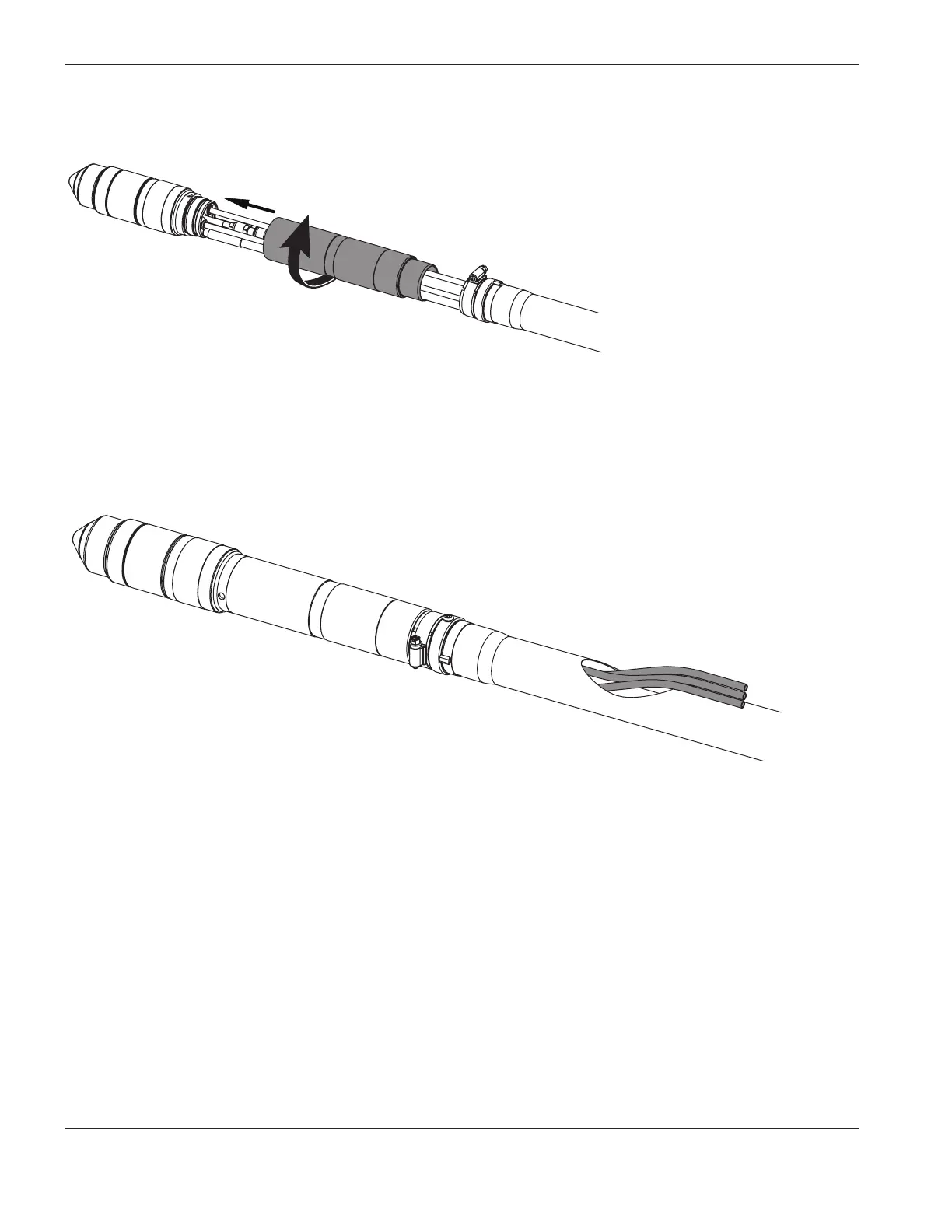

11. Slide the torch sleeve over the connections and screw it onto the torch assembly.
12. Slide the braided cover up to the torch sleeve. Make sure that the plasma, shield and vent hoses are routed through
the hole in the braided cover. Loosen the hose clamp on the braided cover, slide the braided cover and clamp over
the sleeve and tighten the clamp.
