Hypertherm powermax 380 - Extension Cords and Work Cable Attachment

SETUP
powermax380
Operator Manual 3-5
0

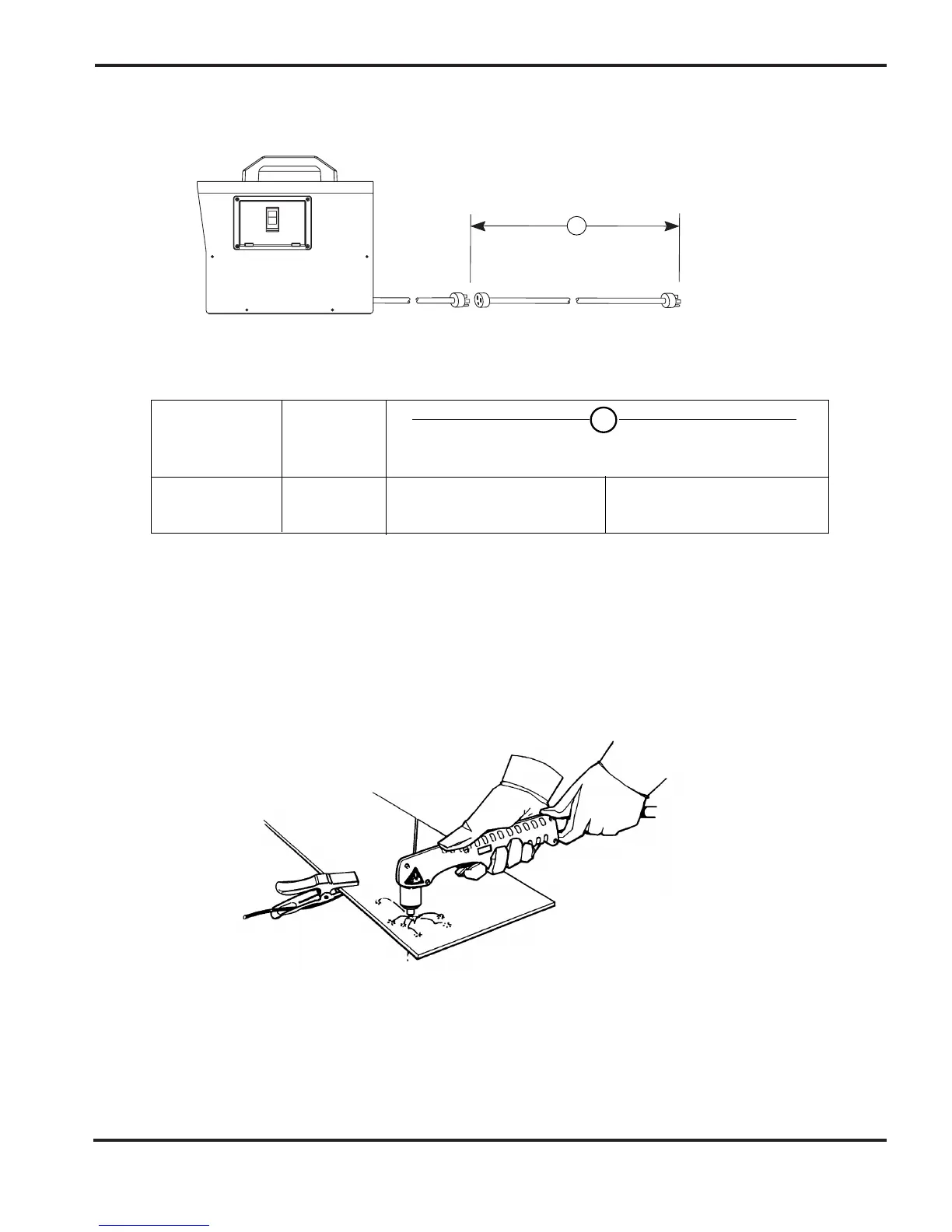

Extension Cords
A
Use an extension cord of appropriate wire size for the cord length and system voltage. Use a cord that is certified
by national or local codes. The cord should be installed by a licensed electrician.
Input- Recommended
Voltage Phase Cord Gauge Size Length
115 VAC 1 12 AWG < 53 ft (16 m)
230 VAC 1 14 AWG < 133 ft (41 m)
A
Work Cable and Clamp
The work clamp must be attached to the workpiece while cutting. Ensure that the work clamp and the workpiece
make good metal-to-metal contact. Attach the work clamp as close as possible to the area being cut to reduce
exposure to electric and magnetic fields (EMF). Do not attach the work clamp to the portion of the workpiece
to be cut away!
