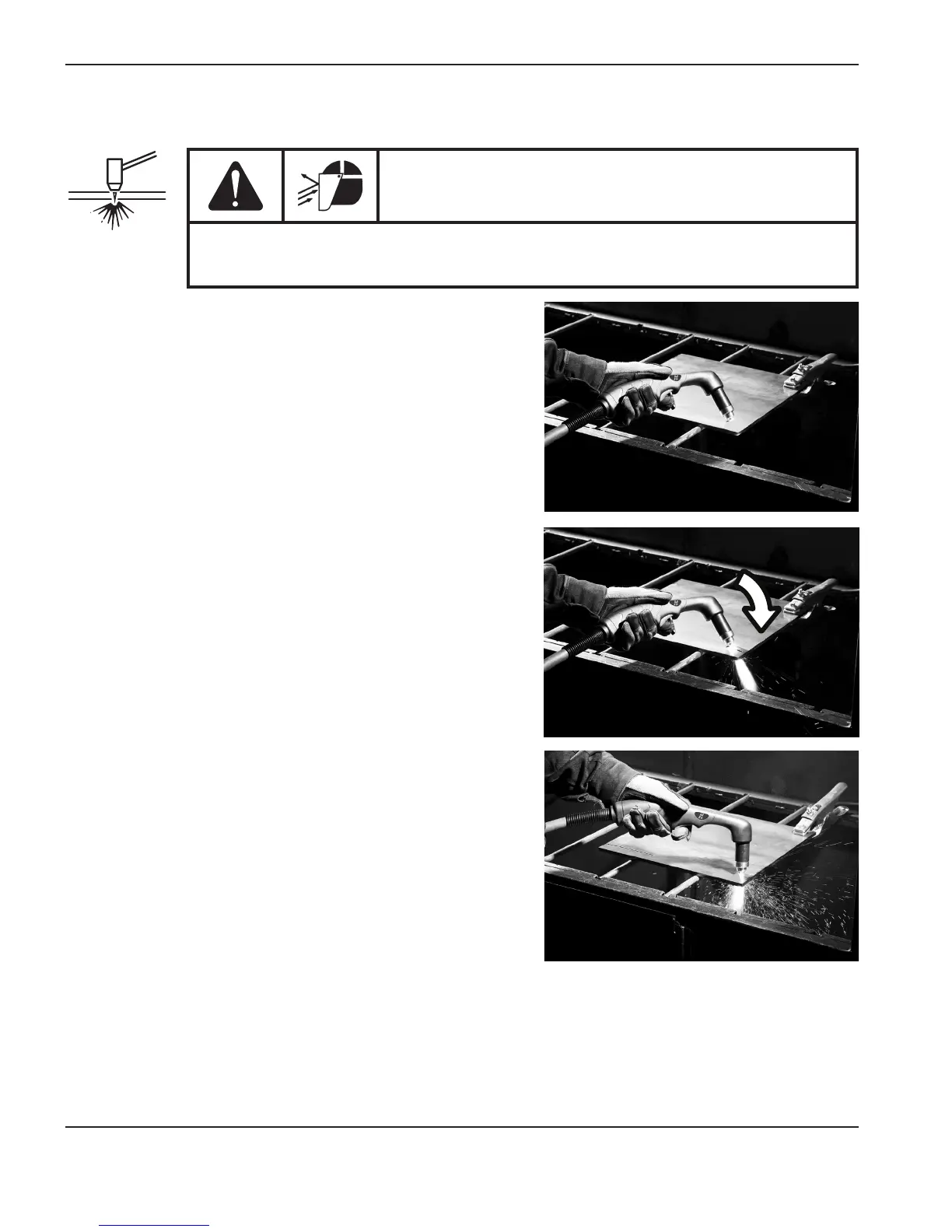

Pierce a workpiece
1. With the work clamp attached to the workpiece, hold the torch
at an approximate 30° angle to the workpiece with the torch
tip within 1/16 inch (1.5 mm) of the workpiece before firing the
torch.
2. Fire the torch while still at an angle to the workpiece. Slowly
rotate the torch to a perpendicular (90°) position.
3. Hold the torch in place while continuing to press the trigger.
When sparks exit below the workpiece, the arc has pierced the
material.
4. When the pierce is complete, dragthe nozzle lightly along the
workpiece to proceed with the cut.
WARNING
SPARKSANDHOTMETALCANINJUREEYESANDBURNSKIN.When firing the
torch at an angle, sparks and hot metal will spray out from the nozzle. Point the
torch away from yourself and others.
