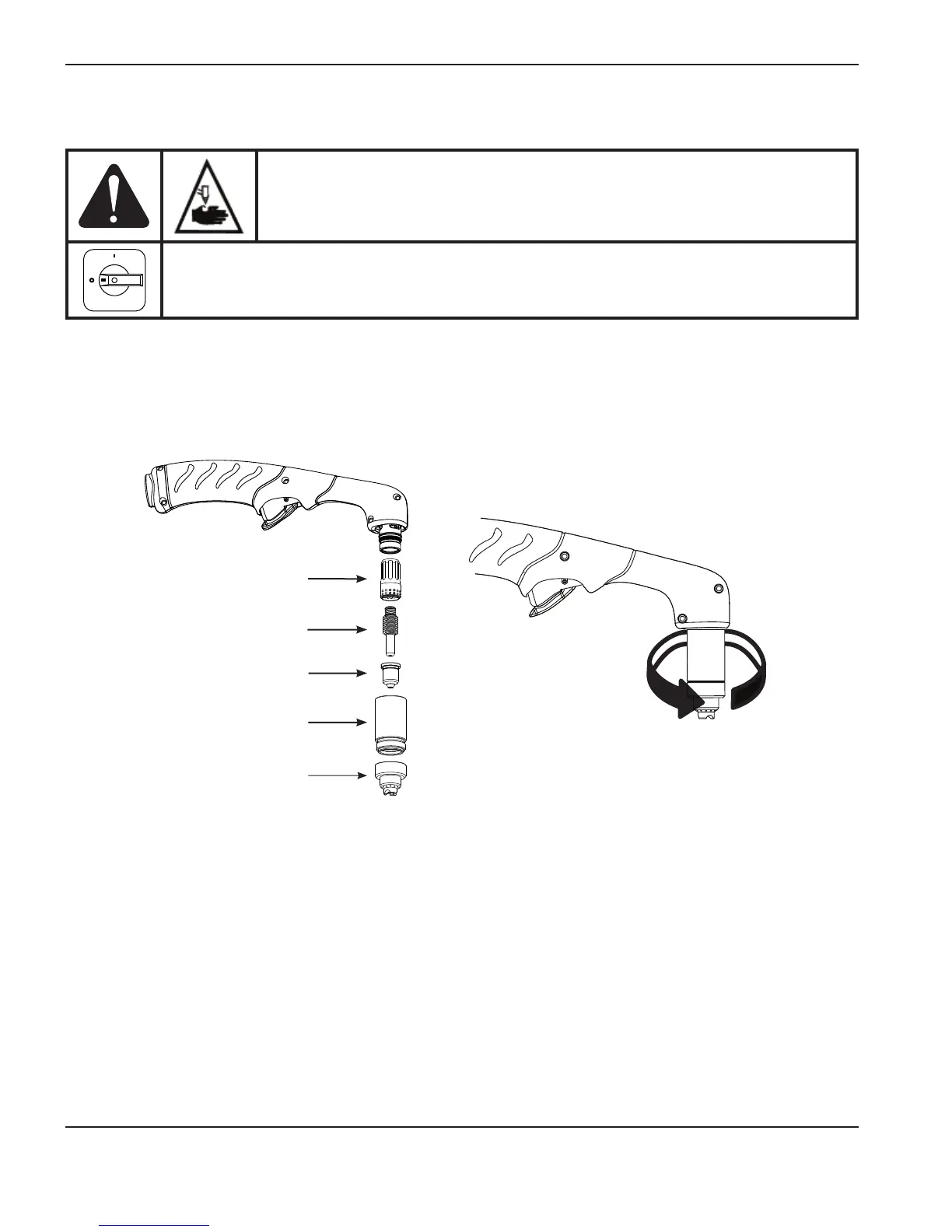

Install the hand torch consumables
To operate the hand torch, a complete set of consumable parts must be installed: shield, retaining cap, nozzle,
electrode, and swirl ring.
With the power switch in the OFF (O) position, install the torch consumables asshown below.
WARNING
INSTANTON TORCHES
PLASMA ARC CAN CAUSE INJURY AND BURNS
The plasma arc comes on im me di ate ly when the torch trigger is activated. Make sure the
power is OFF before changing consumables.
Retaining cap
Electrode
Swirl ring
Shield
Nozzle
