Hypertherm powermax85

Torch SeTup
3-22 powermax 65/85 Operator Manual
Connecting the torch lead
The Powermax65 and Powermax85 are equipped with FastConnect
TM
, a quick-disconnect system for connecting and
disconnecting handheld and machine torch leads. When connecting or disconnecting a torch, first turn OFF the system.

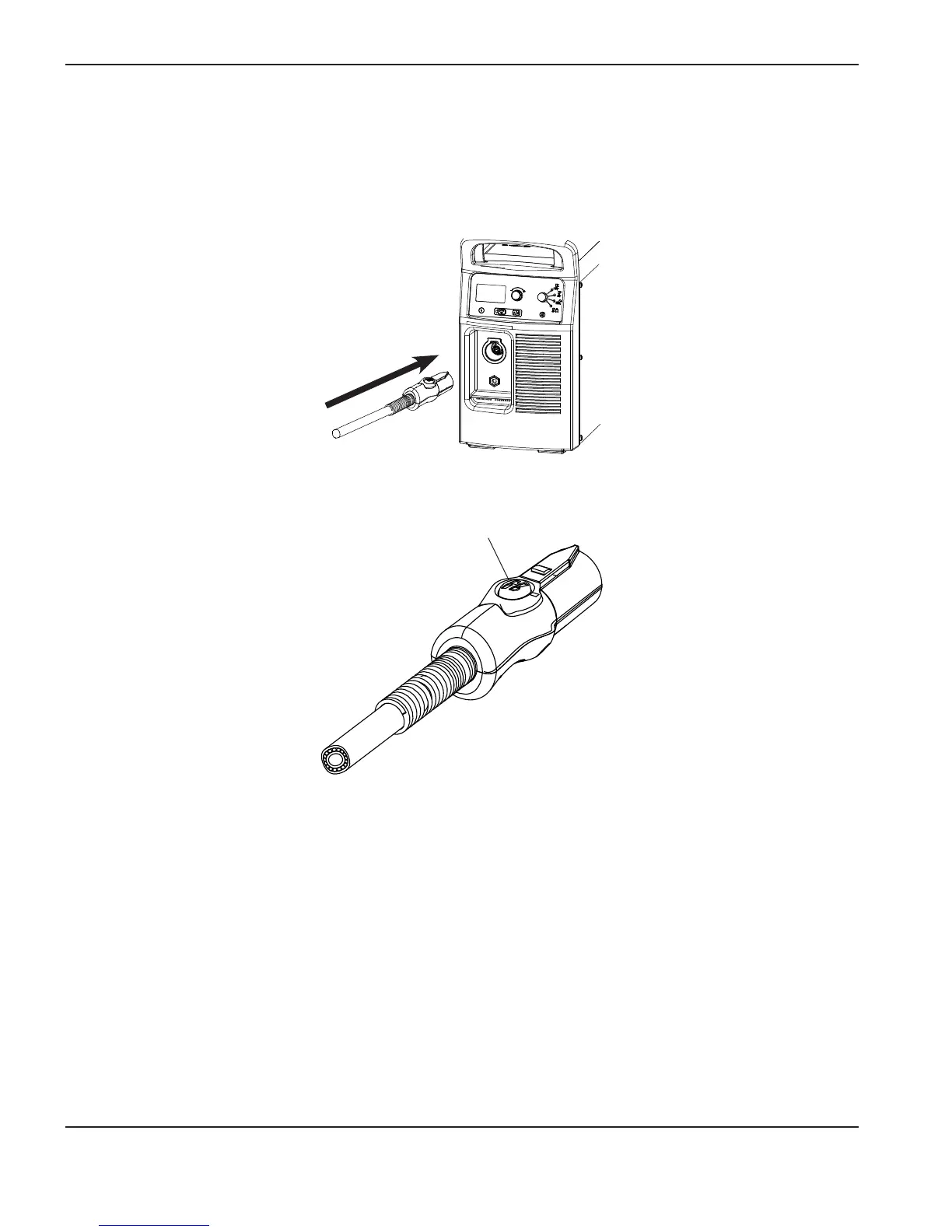

To connect either torch, push the connector into the receptacle on the front of the power supply.
To remove the torch, press the red button on the connector and pull the connector out of the receptacle.
Red button
