Choose the machine torch consumables
Powermax systems with the Duramax 180° full-length machine torch or Duramax 180° mini machine torch are shipped
with a box of consumables. In addition, an ohmic-sensing retaining cap is available for use with shielded consumables.
With shielded consumables, the torch tip may touch the metal when cutting. With unshielded consumables, you must
keep the torch a small distance, about 2-3 mm (.08-.12 inch), away from the metal. Unshielded consumables generally
have a shorter life than shielded consumables. Depending upon which system you order, you may receive a starter
consumable kit with a standard retaining cap or ohmic retaining cap.
Both styles of machine torches use the same consumables.

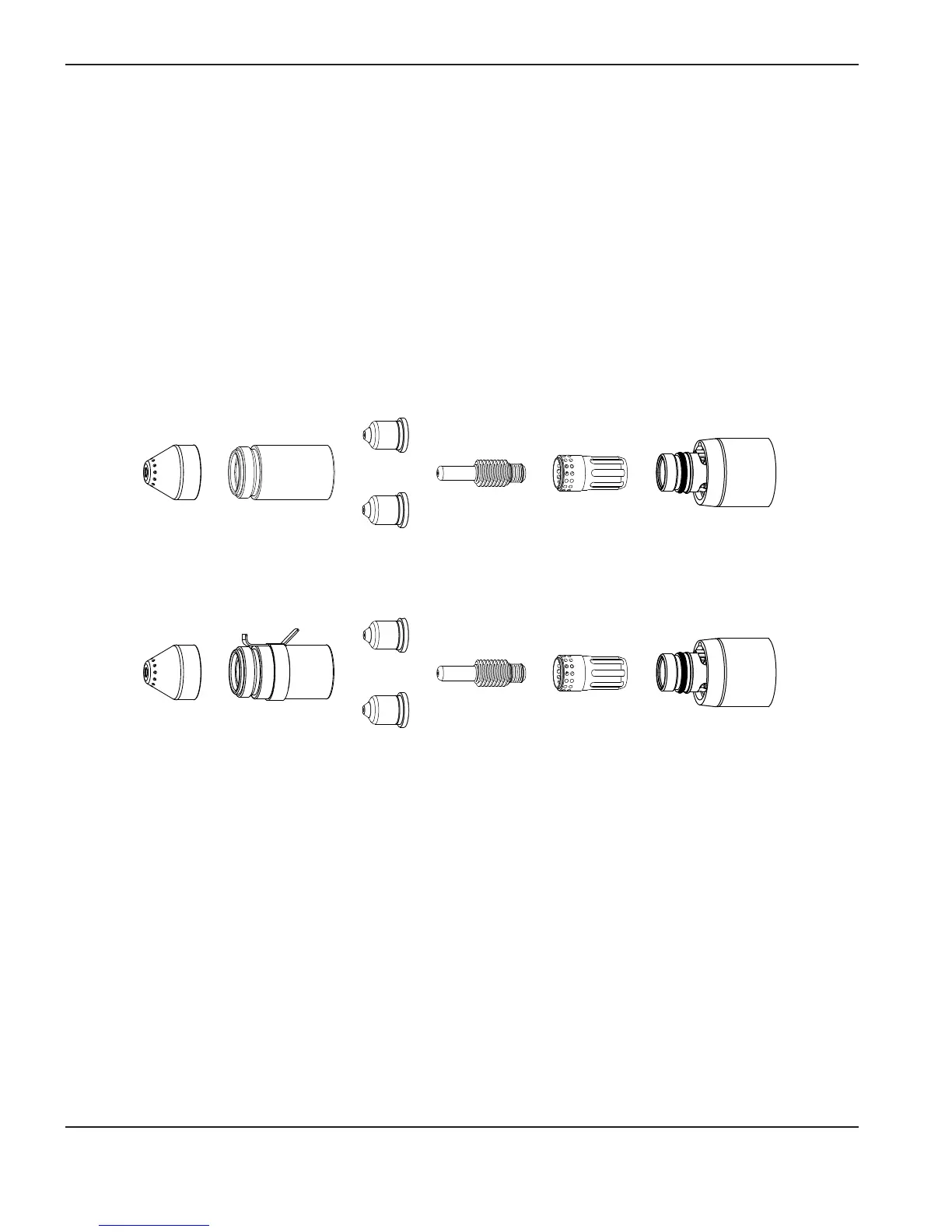

Machine torch consumables
Mechanized shielded consumables: Powermax65
220941
Nozzle
220941
Nozzle
Mechanized shielded with ohmic consumables: Powermax65
220817
Shield
220817
Shield
220854
Retaining cap
220819
Nozzle
220819
Nozzle
220857
Swirl ring
220857
Swirl ring
220842
Electrode
220842
Electrode
220953
Ohmic-sensing
retaining cap
