powermax 65/85 Operator Manual 6-11

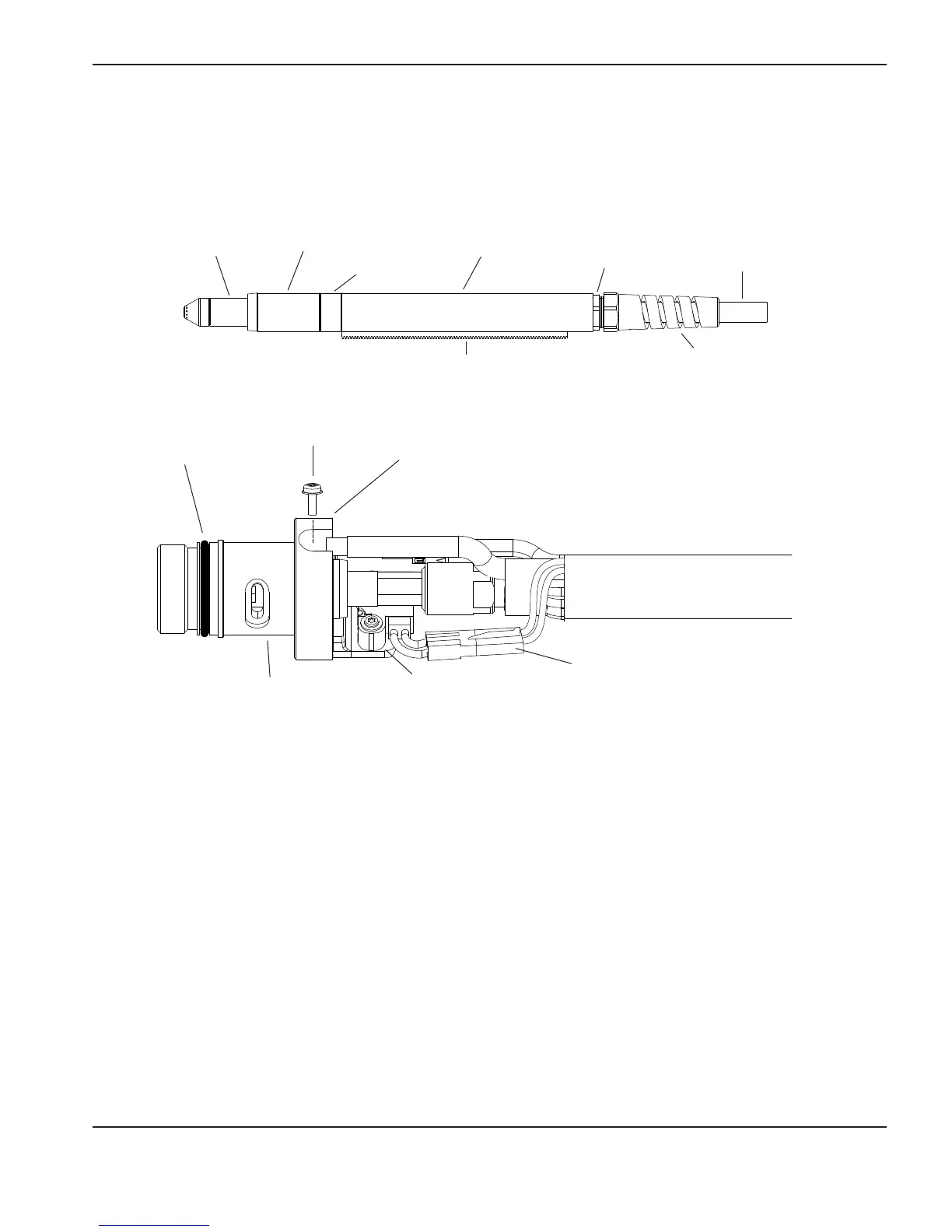

Duramax 180° mini machine torch replacement parts
Note: This illustration shows the Duramax 180° machine torch. The Duramax 180° mini machine torches do not
have a positioning sleeve and gear rack.
Front mounting ring
Pilot wire
terminal screw
Cap-sensor switch
Torch head
O-ring
Consumables
Mounting
sleeve
Coupler
Gear rack (32 pitch)
Strain relief body
Strain relief nut
Torch lead
Positioning sleeve
Wire connector for
cap-sensor switch
