Battery First (Bat First) Mode
Power Supply Priority Description
1. Utility (AC Input)
The Utility Power charges the battery.
Note: The utility (AC Input) charging power is
programmable for 5A - 25A (600W - 3,000W).
2. PV (solar)
PV power supplements the AC Charging (total
combined max 80A (4,400W)).
3. Battery
The battery power will kick-in when the utility power
is OFF and the PV power is insucient.
Table 6.2 Power supply priority - AC F.C. mode
MAX.
AC Charing
Power Setting
2300W 3000W 3800W
650W 1000W 1600W
Home
Settings
Information
Alerts
OK
Cancel

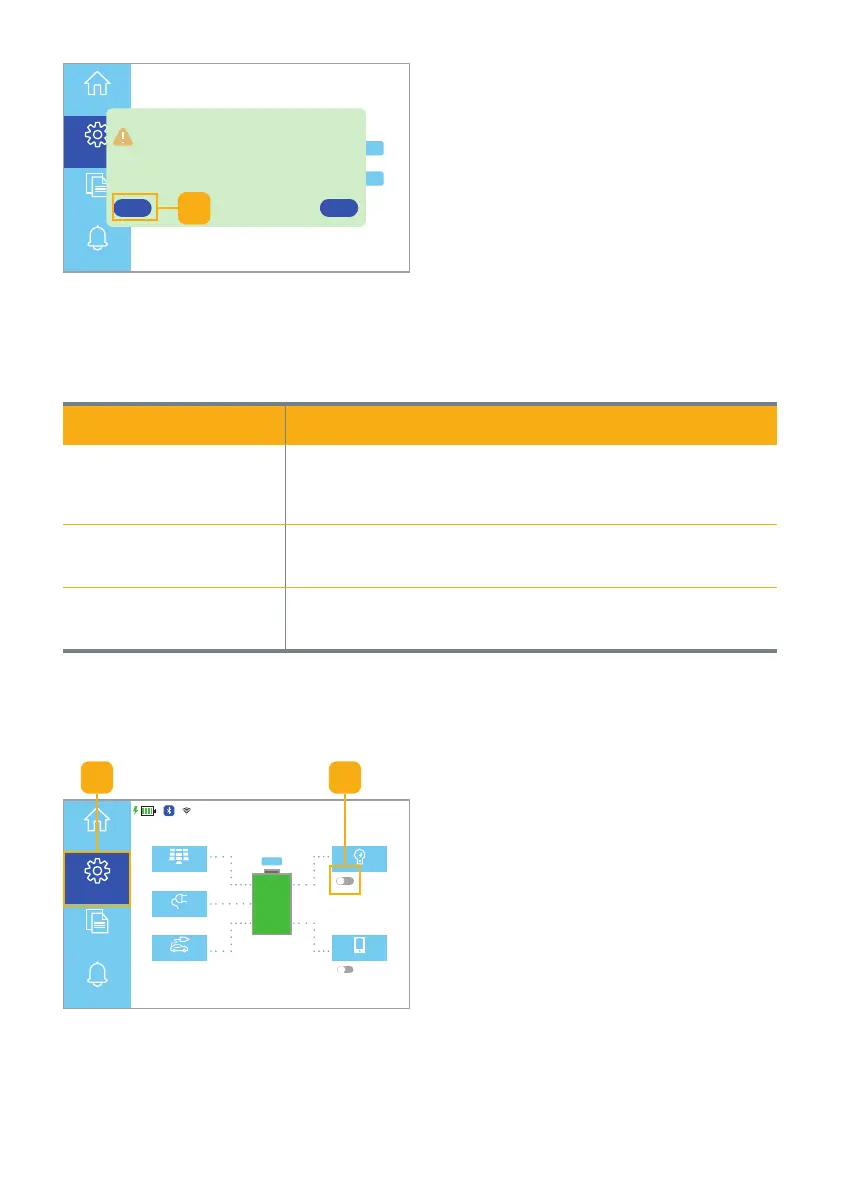

You are trying to increase the AC charging power.
The high rated charging power stacking loads power
may exceed the outlet rated current.
PLEASE MAKE SURE THE AC OUTPUT IS TURNED OFF!
Fig. 6.14 Confirm maximum power
5
5. Select the OK button to set the
maximum AC power.
The following table (Table 6.2) shows the power supply priority when the unit
is in AC F.C. mode.
Follow these steps to select the
Battery First mode:
1. On the Homepage UI, toggle the
AC Output switch to OFF (Fig. 6.15).
2. Select the Settings button to
access the Settings menu.
120VAC
PV
Home
Settings
Data
Warnings
12VDC
AC Load
DC Load
11/15/XXXX 15:15
2560 W 2560 W
2500 W
120 W 330 W
AC OFF
DC OFF
100%
ECO
Fig. 6.15 Turn AC output switch OFF
12
