2200 SRM 514 Description
Enhanced Display 18-Pin Connector
Pin Function Pin Function
1
2
3
4
5
6
7
8
9
10
Traction Card PY 5
Pump Card PY 5
No Connection
Traction Card PY 14
Traction Card PY 13
Pump Card PY 14
Pump Card PY 13
No Connection
Traction Card PY 4
Pump Card PY 4
11
12
13
14
15
16
17
18
Brush Wear Indicator & Temperature Jumper*
*
Parking Brake Switch
Brake Fluid Switch
No Connection
No Connection
Key Switch (IGN)
No Connection
*Pin 11 to 12 jumper (in wire harness). Brush Wear Indicator (BWI) and temperature LEDs disabled if cut.
1. BATTERY CHARGE INDICATOR WITH LIFT
INTERRUPT
2. DIGITAL DISPLAY
3. WARNING LED, FASTEN SEAT BELT
4. WARNING LED, BRAKE FLUID RESERVOIR IS
LOW
5. WARNING LED, PARKING BRAKE INDICATOR
6. LED INDICATOR, STEERING PUMP MOTOR
7. WARNING LED, MOTOR BRUSHES ARE WORN
(TRACTION, HYDRAULIC, OR STEERING)
8. LED INDICATOR, TRACTION MOTOR
9. LED INDICATOR, HYDRAULIC MOTOR
10. WARNING LED, MOTOR TEMPERATURE OVER
LIMIT (TRACTION OR HYDRAULIC)
11. WARNING LED, SERVICE INTERVAL
12. LED INDICATOR, HOURMETER
13. PUSH BUTTON, DISPLAY STATUS CODES
14. PUSH BUTTON, SET PERFORMANCE LEVEL
15. PERFORMANCE LEVEL INDICATORS (4 LEDS)
16. RED/BRN "IGN" TERMINAL
17. BRN "BAT" TERMINAL
18. KEY SWITCH LEADS

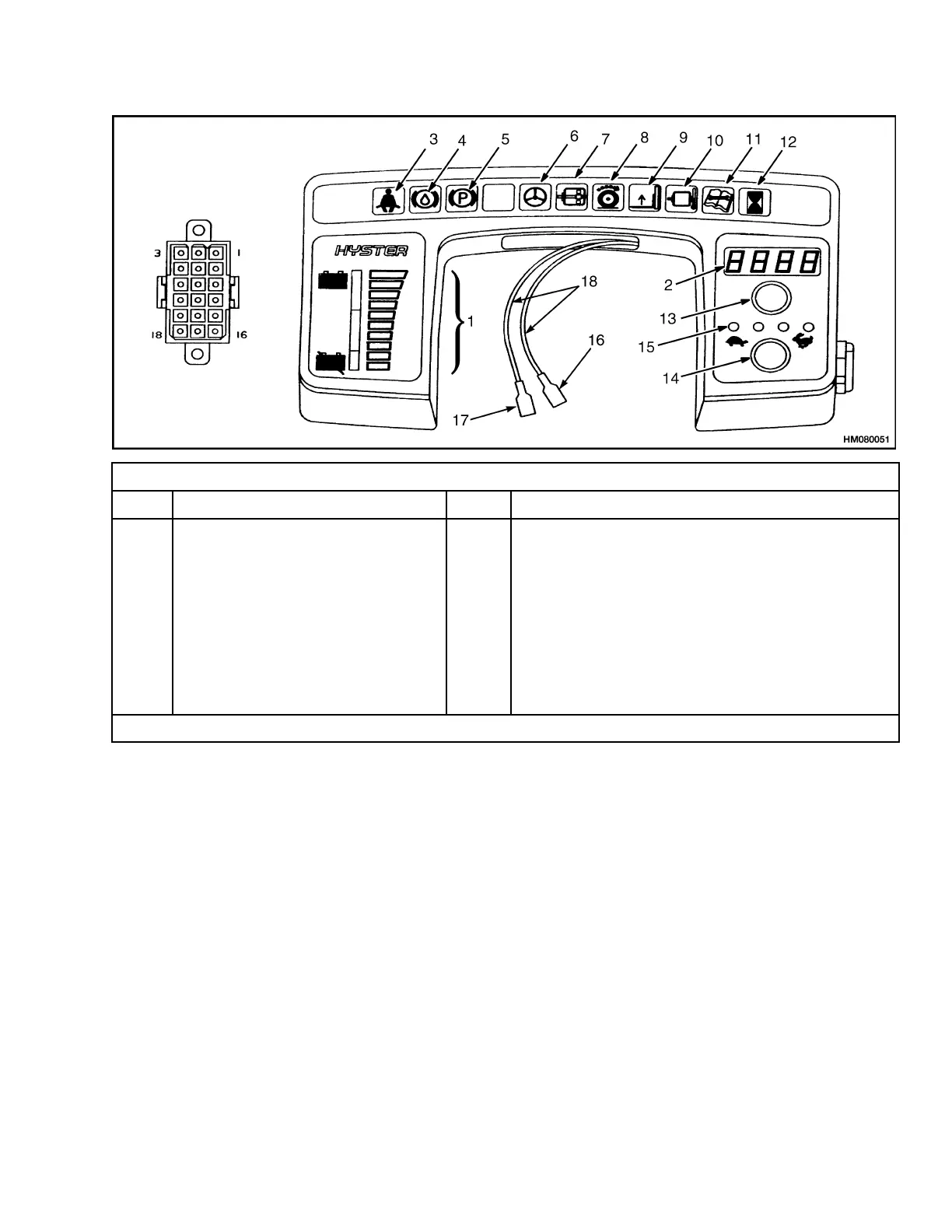

Figure 3. Enhanced Display Panel and Plug Connector, Electric Trucks
9. LED Indicator, Hydraulic Motor.ThisLED
will illuminate with another warning LED if the
hydraulic pump motor is too hot or the brushes
are too worn. For example, if the temperature
over limit switch closes in the motor, the warning
LED for the motor temperature over limit will
go ON and the LED indicator for the hydraulic
motor will show that this motor has the problem.
9
