2200 SRM 514 Description
General
This section has the description and the repair procedures for the instrument clusters used on the XM model
lift trucks. Senders that have signals for some of the meters and indicators are described in the section In-
strument Panel Indicators and Senders 2200 SRM 143.
Description
DISPLAY PANELS ON STEERING
COLUMN, INTERNAL COMBUSTION
The instrument cluster is installed around the steer-
ing column housing. See Figure 1 and Figure 5. The
instrument cluster has a series of gauges and indica-
tor lights that help let the operator know about the
condition of the lift truck and its systems. A list of
the gauges and indicator lights and their operation
isshowninTable1.

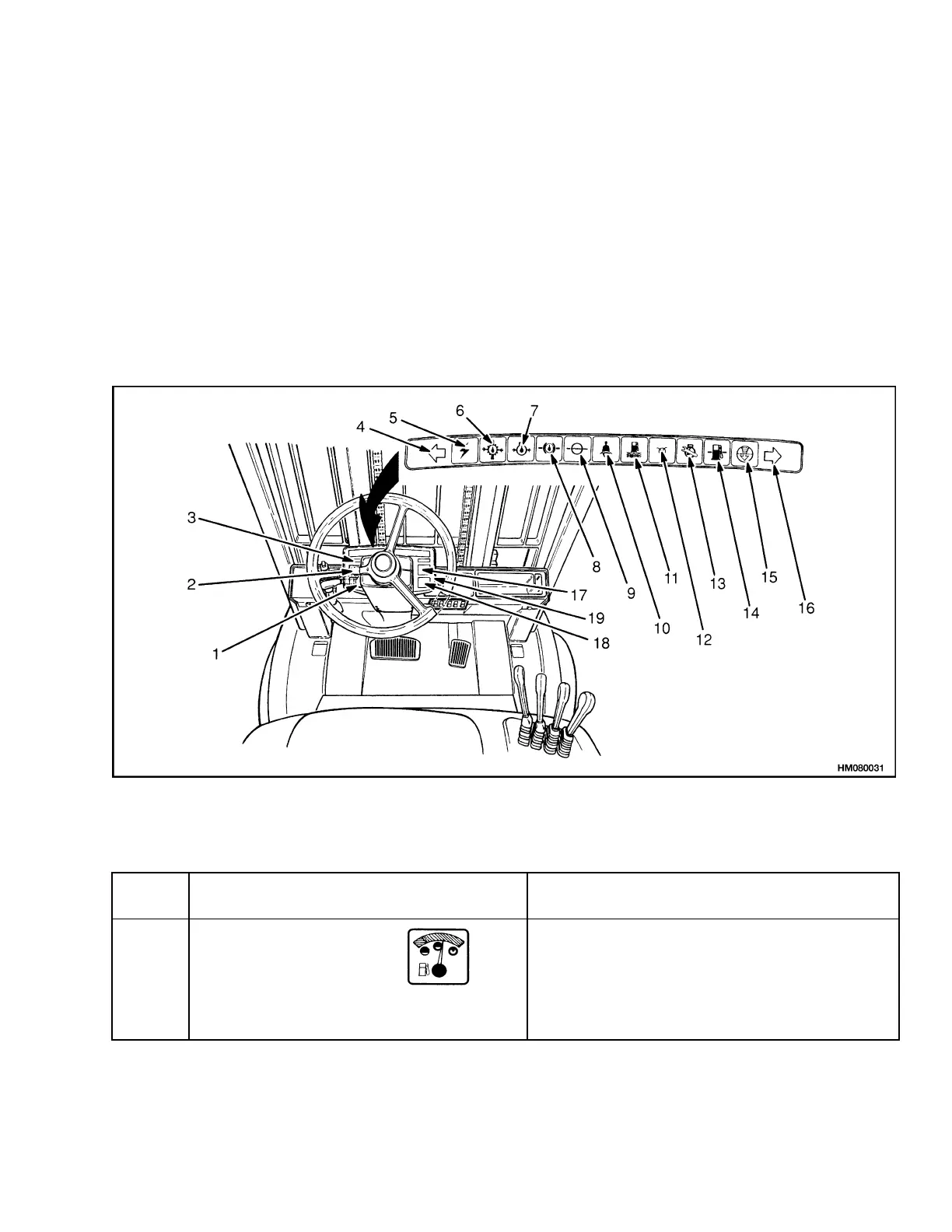

Figure 1. Instrument Cluster, Internal Combustion Trucks
Table
1. Instrument Cluster, Internal Combustion
Item
No.
Item Function
1
Fuel Gauge This gauge indicates the amount of fuel in the
gasoline or diesel fuel tank. The sending unit
for the fuel gauge is in the fuel tank. If the fuel
gauge does not work, check the wiring or replace
the sending unit or gauge. To check the wiring,
see the service manual section for Diagrams.
1
