LITHIUM SERIES® Electric Torque Tool (BTM and BTM-DOC Models) Operations Manual
30
CONVENTIONAL TORQUE TIGHTENING
• Pull and hold the trigger to begin the TORQUE operation.
• For Right or Left Hand Fasteners, a message is displayed instructing the user press an additional button on the control
panel to ensure the operator keeps both hands clear of the reaction arm.

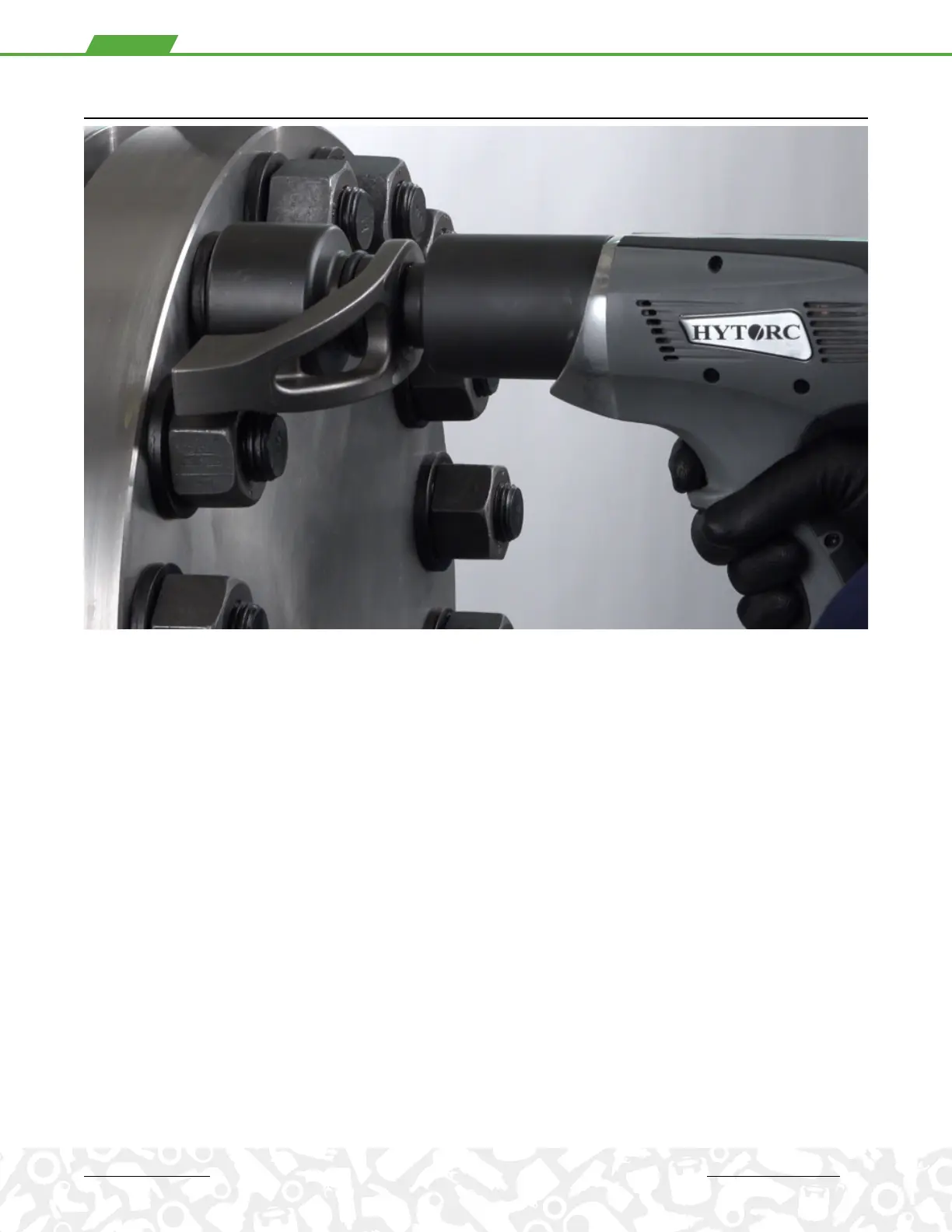

• Once the tool starts the reaction arm will move against the reaction surface. The tool will then begin applying torque
and tighten the nut.
• Continue holding the trigger until the tool reaches the desired torque and stops.
• If an ANGLE has been specified, continue holding the trigger, the tool will pause and restart after the angle delay.
• If a RELEASE has been specified, continue holding the trigger, the tool will pause and restart after the angle delay.
• Release the trigger after the tool has completed all specified operations.
• The status light will turn amber during operation. If the operation is successful, the status light will turn green,
if unsuccessful the status light will turn red.
• If the BEEPER is enabled the tool will provide an audible beep upon completion of the operations.
• Remove the tool from the nut.
• Should torque be applied without a release angle the tool may lock onto the nut. If this happens set the tool to Loosen to
free the tool and repeat the operation.
(CONT’D.)
