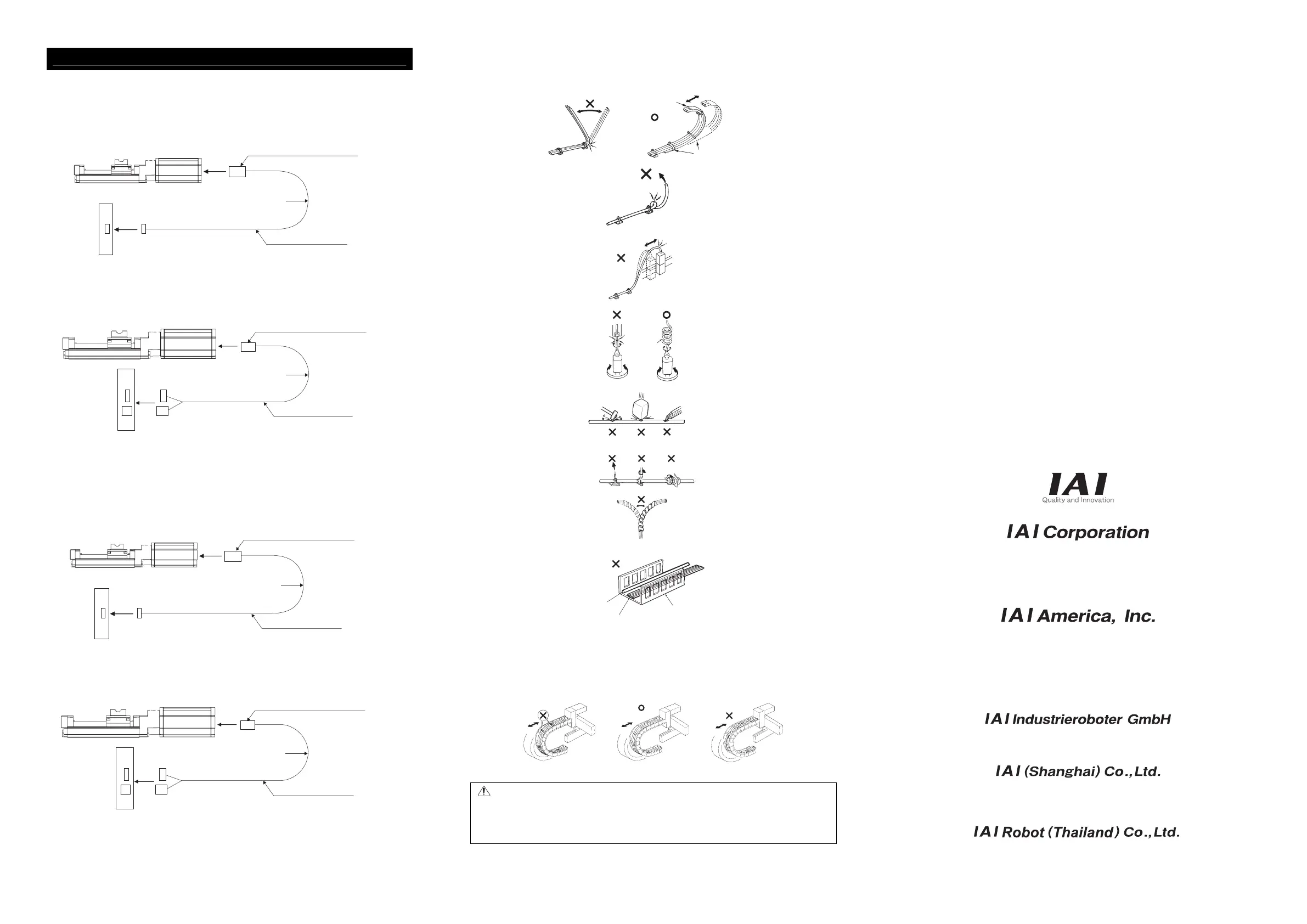

Wiring
For the controller, use the dedicated controller manufactured by our company.
For the connection between the actuator and controller, use the attached dedicated connection
cable.
1. RCP3 Actuator Connection
Motor Coupling Type SA3C/SA4C/SA5C/SA6C, Motor Reversing Type SA3R/SA4R/SA5R/SA6R
[Connection to the PMEC, PSEP and MSEP controller]
Dedicated Connection Cable CB-APSEP-MPA***
*** shows the cable length. The max. length should be 10m.
Example) 080=8m
[Connection to the PCON, PSEL controller]
Dedicated Connection Cable CB-PCS-MPA***
*** shows the cable length. The max. length should be 10m.
Example) 080=8m
2. RCA2 Actuator Connection
Motor Coupling Type SA3C/SA4C/SA5C/SA6C, Motor Reversing Type SA3R/SA4R/SA5R/SA6R
[Connection to the AMEC, ASEP and MSEP controller]
Dedicated Connection Cable CB-APSEP-MPA***
*** shows the cable length. The max. length should be 10m.
Example) 080=8m
[Connection to the ACON, ASEL controller]
Dedicated Connection Cable CB-ACS-MPA***
*** shows the cable length. The max. length should be 10m.
Example) 080=8m
[Prohibited Items in the Cable Processing]
• Do not pull or bend forcibly the cable so as not to give any extra load or tension to the cable.
• Do not process the cable to extend or shortening by means of cutting out, combination or connecting
with another cable.
• Do not let the cable flex at a single point.
• Do not let the cable bend, kink or twist.
• Do not pull the cable with a strong force.
• Do not let the cable receive a turning force at a single point.
• Do not pinch, drop a heavy object onto or cut the cable.
• When fixing the cable, provide a moderate slack and do not tension it too tight.
• Separate the I/O line, communication line and power line from each other. Arrange so that such lines
are independently routed in the duct.
Follow the instructions below when using a cable track.
• If there is an indication to the cable for the space factor in a cable track, refer to the wiring
instruction given by the supplier when storing the cable in the cable track.
• Avoid the cables to get twined or twisted in the cable track, and also to have the cables move freely
and do not tie them up. (Arrange the wiring so the cables are not to be pulled when bent.)
Do not pile up cables. It may cause faster abrasion of the sheaths or cable breakage.
Note:
• When the cable is connected or disconnected, make sure to turn off the power to the controller.
When the cable is connected or disconnected with the controller power turned ON, it might
cause a malfunction of the actuator and result in a serious injury or damage to the machinery.
• When the connector connection is not correct, it would be dangerous because of a malfunction
of the actuator. Make sure to confirm that the connector is connected correctly.
