(2) General-purpose type (K type)

z Either a ProfiBus-DP board or standard I/O board must be always installed in the standard slot (I/O1 --- slot

at the far left).

z The “PR1” ProfiBus-DP board occupies two expansion slots. If this type of ProfiBus-DP board is selected,

only one expansion slot can be used.

z Either an expansion I/O board

(*1)

or SIO board

(*2)

can be installed in an expansion slot.

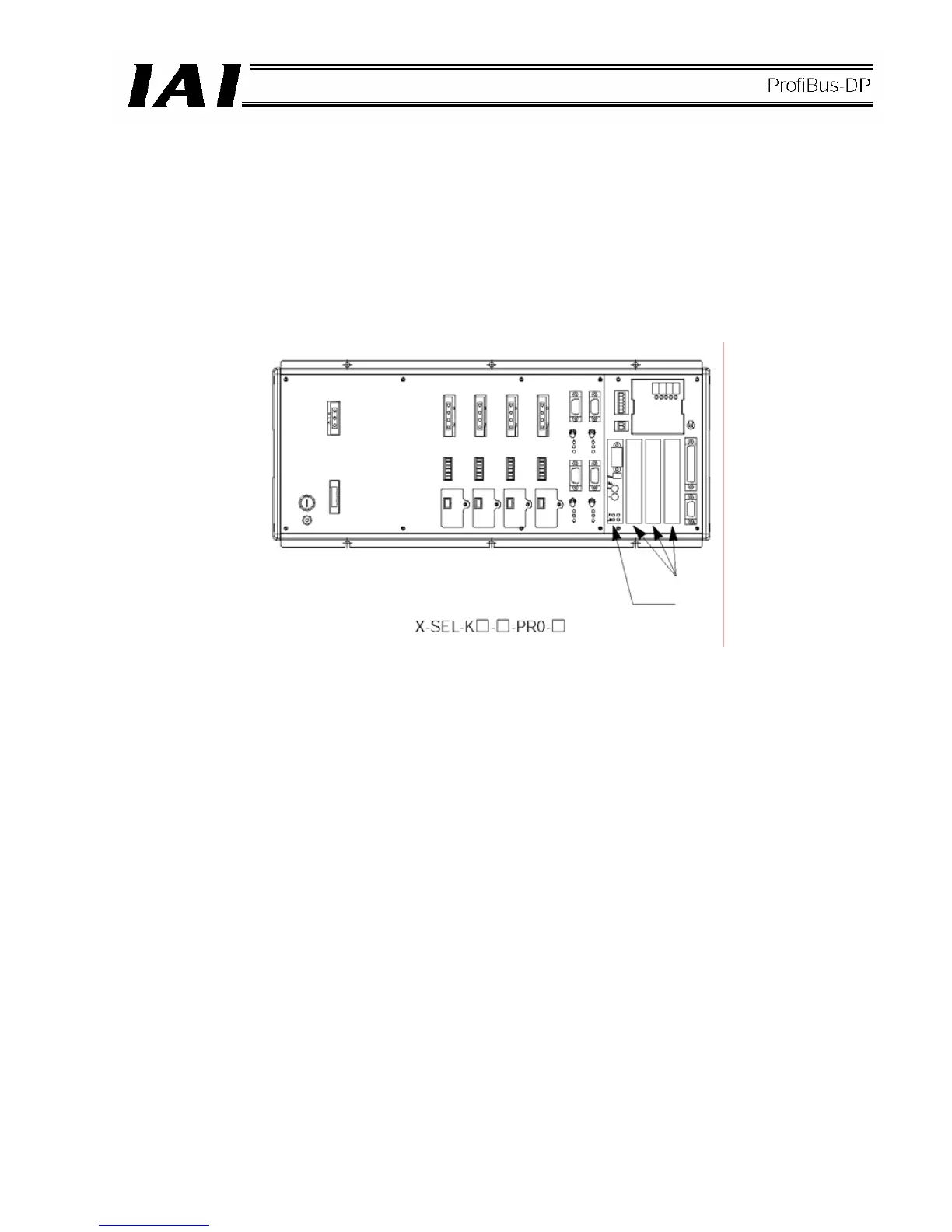

Fig. 3.2

Expansion slots 1 to 3

ProfiBus-DP board

(Installed in the standard slot.)
