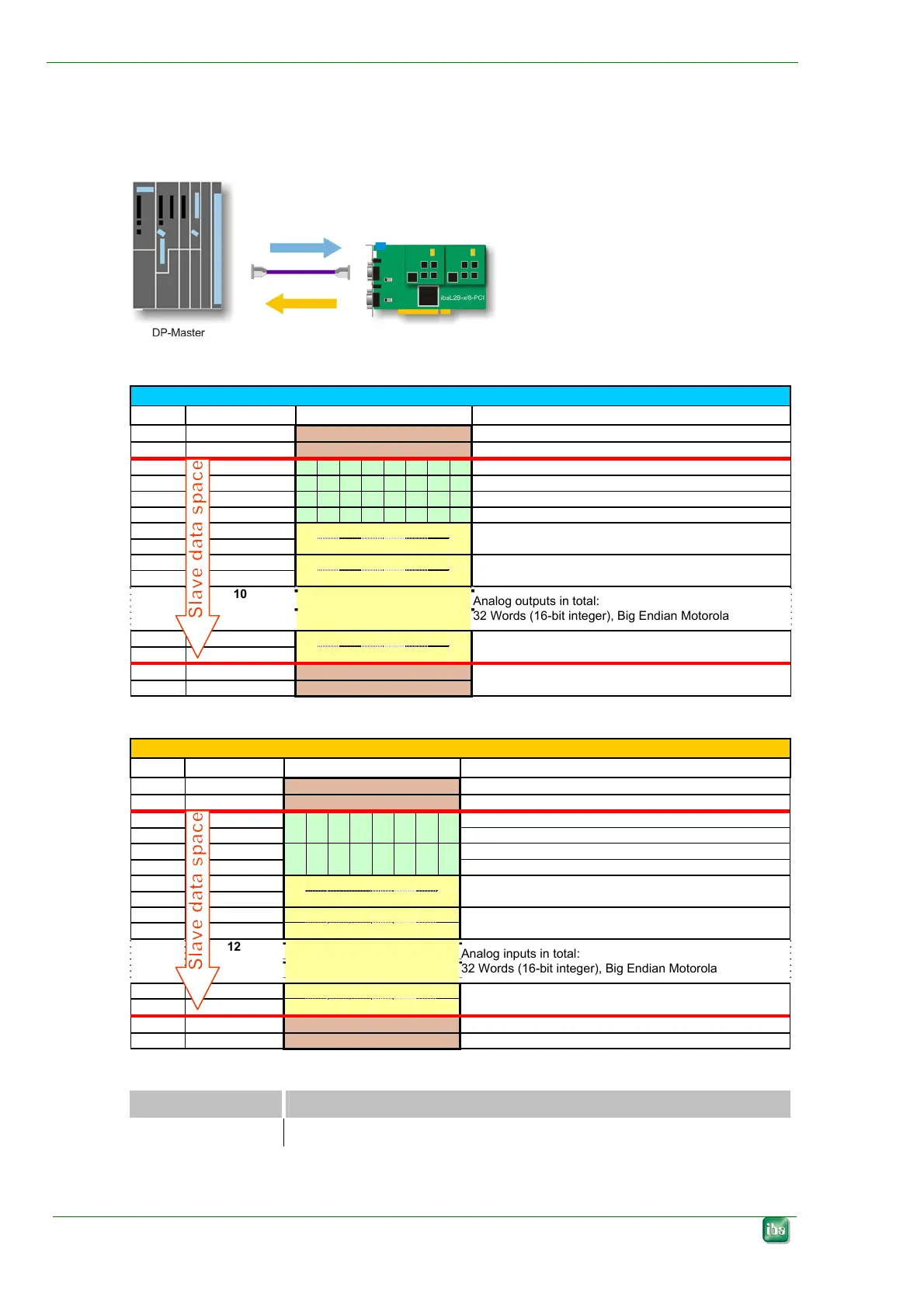

11.1.4 iba_0F08.gsd – 32 Integer In-/Outputs
This mode is used to read / write up to 32 integer values and 32 digital signals from / to
a PROFIBUS master (IN 72 Bytes / OUT 72 Bytes).
11.1.4.1 DP-Master Output data
OUTPUT DATA
Byte no. Offset
Contents Remark
1 0 Status not used, fill with zero
2 1 Status not used, fill with zero
3 2 7 6 5 4 3 2 1 0 Dig. outputs channel 0...7
4 3 15 14 13 12 11 10 9 8 Dig. outputs channel 8...15
5 4 23 22 21 20 19 18 17 16 Dig. outputs channel 16...23
6 5 31 30 29 28 27 26 25 24 Dig. outputs channel 24...31
7 6
MSB
8
LSB
nalog output channel 0
Integer (2 byte), Big Endian Motorola
9 8
MSB
10
LSB
nalog output channel 1
Integer (2 byte), Big Endian Motorola
10
nalog outputs in total:
32 Words (16-bit integer), Big Endian Motorola
69 68
MSB
70
LSB
nalog output channel 31
Integer (2 byte), Big Endian Motorola
71 70 Status
72 Status
customized functions possible (e.g. status, watchdog
etc.)
11.1.4.2 DP-Master Input data
INPUT DATA
Byte no. Offset
Contents Remark
1 0 FO message counter-A incremented by each new FO message, Bit 7 always = 1
2 1 FO reception status Bit 0:FO reception OK; Bit 3: 0 = integer, 1 = real
3 2 7 6 5 4 3 2 1 0 Dig. inputs channel 0...7
4 3 15 14 13 12 11 10 9 8 Dig. inputs channel 8...15
5 4 23 22 21 20 19 18 17 16 Dig. inputs channel 16...23
6 5 31 30 29 28 27 26 25 24 Dig. inputs channel 24...31
7 6
MSB
8
LSB
nalog input channel 0
Integer (2 byte), Big Endian Motorola
9 8
MSB
10
LSB
nalog input channel 1
Integer (2 byte), Big Endian Motorola
12
nalog inputs in total:
32 Words (16-bit integer), Big Endian Motorola
69 68
MSB
70
LSB
nalog input channel 31
Integer (2 byte), Big Endian Motorola
71 70 Device-ID of FO transmitter see list of iba device-IDs
72 71 FO message counter-B incremented by each new FO message, Bit 7 always = 1
11.1.4.3 GSD File
GSD filename Remark
iba_0F08.gsd Transfer as word (S7-300/400)
11.1.4.4 Applications
ibaLogic, system coupling, Simatic S7, TDC, Simadyn D
