Manual

ibaFOB-D

Issue 1.11

PCI Express boards (HW version A)

SYNC: synchronization of iba

boards (Sync-IRQ connector)

2 +5V: power supply for

Sync-i/Sync-o

3 TX-OUT: ibaFOB-4o (outputs)

4 TX-MIRROR: ibaFOB-4o (mir-

rored inputs)

5 JTAG: service interface

6 DCF77 & ALARM: spare con-

nector, prepared for future ex-

tensions

7 ALARM STATUS: debug LED

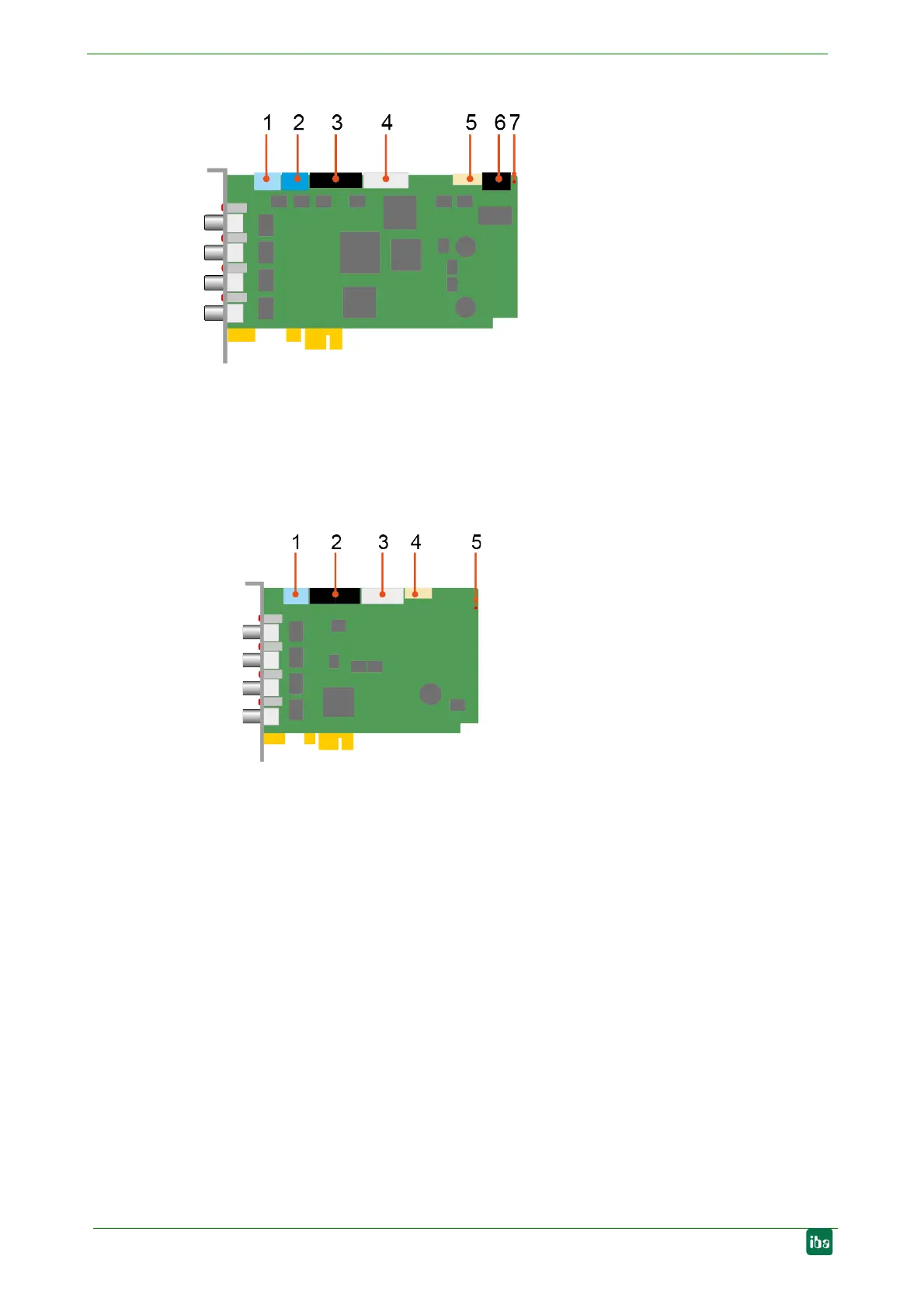

Figure 3: Additional board connectors, example ibaFOB-4i-Dexp

PCI Express boards (HW version B)

SYNC: synchronization of iba

boards (Sync-IRQ connector)

2 TX-OUT: ibaFOB-4o (outputs)

3 TX-MIRROR: ibaFOB-4o (mir-

rored inputs)

4 SERVICE: service interface

5 STATUS: debug LED

Figure 4: Additional board connectors, example ibaFOB-4i-Dexp
