Manual
ibaFOB-D
60
Issue 1.11

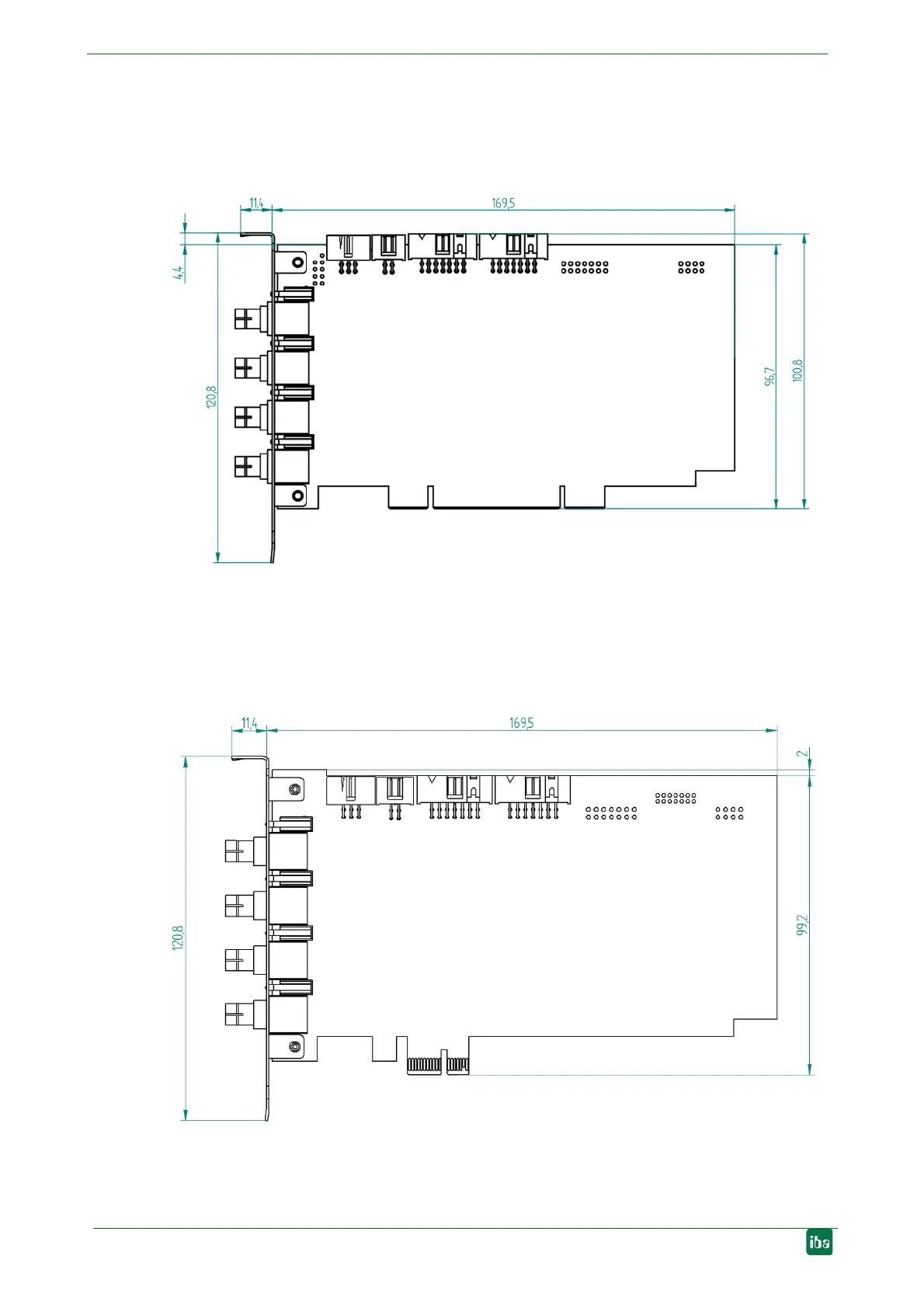

12.3 Dimension sheet
12.3.1 PCI board
Figure 40: Dimension sheet, example ibaFOB-4i-D
(Dimensions in mm)
12.3.2 PCI Express board (HW version A)
Figure 25: Dimension sheet, example ibaFOB-4i-Dexp
(Dimensions in mm)
