10.2.3 Operation with ibaBM-DIS-i-8o in output mode
If signals out of an ibaPDA or ibaLogic system should be transmitted to ibaPADU-8-o
devices over fiber optic cable you can supply up to 8 lines of output devices (3Mbit) with
data by using ibaFOB-D and ibaBM-DIS-i-8o. In case of using ibaPADU-8-o you can
connect up to 8 devices in a daisy-chain on each output link of the ibaBM-DIS-i-8o (up
to a total of 64 devices). Only 1 FO output of an ibaFOB-D board is needed.

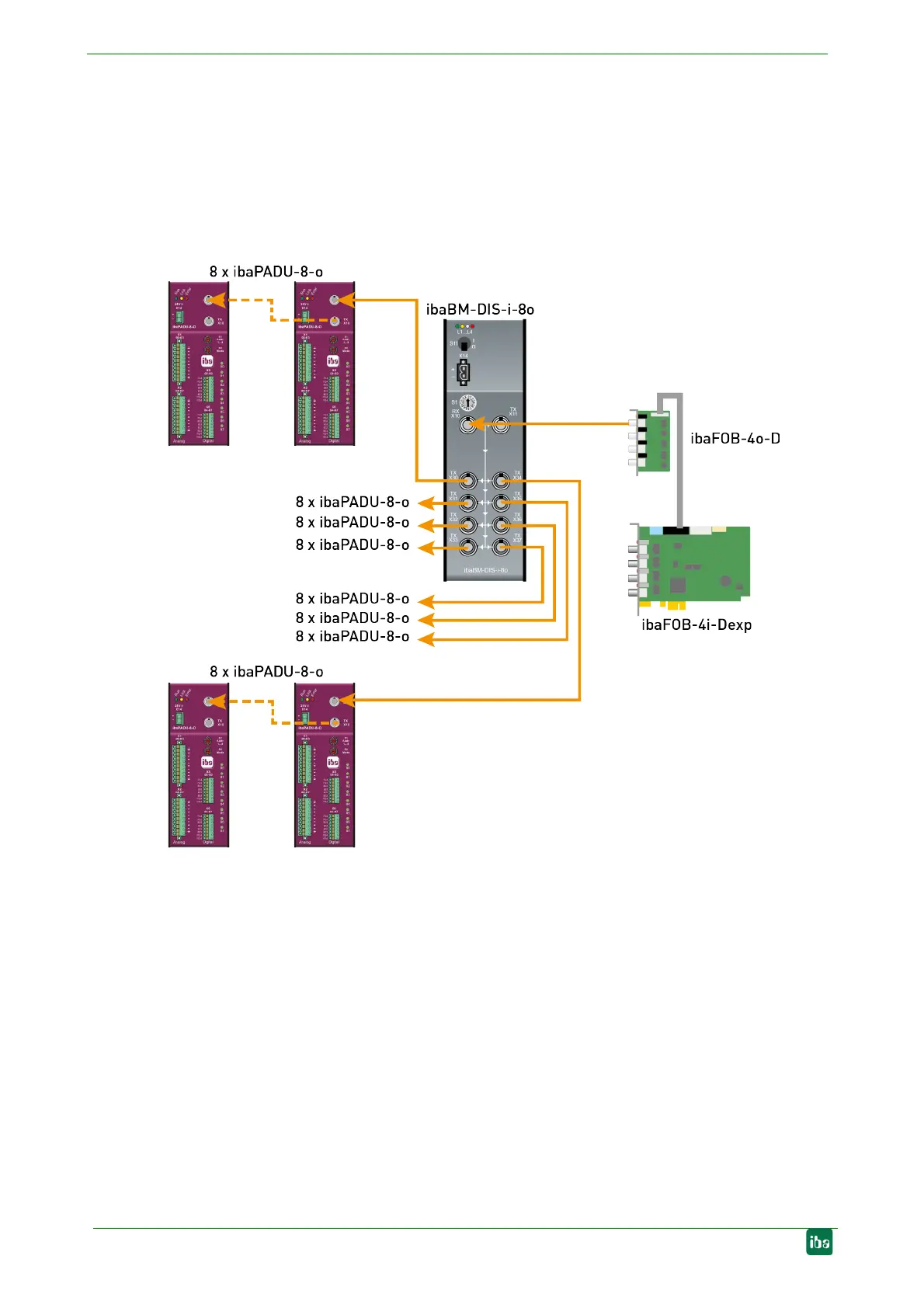

Figure 39: Operation for output signals with ibaBM-DIS-i-8o and ibaPADU-8-o
