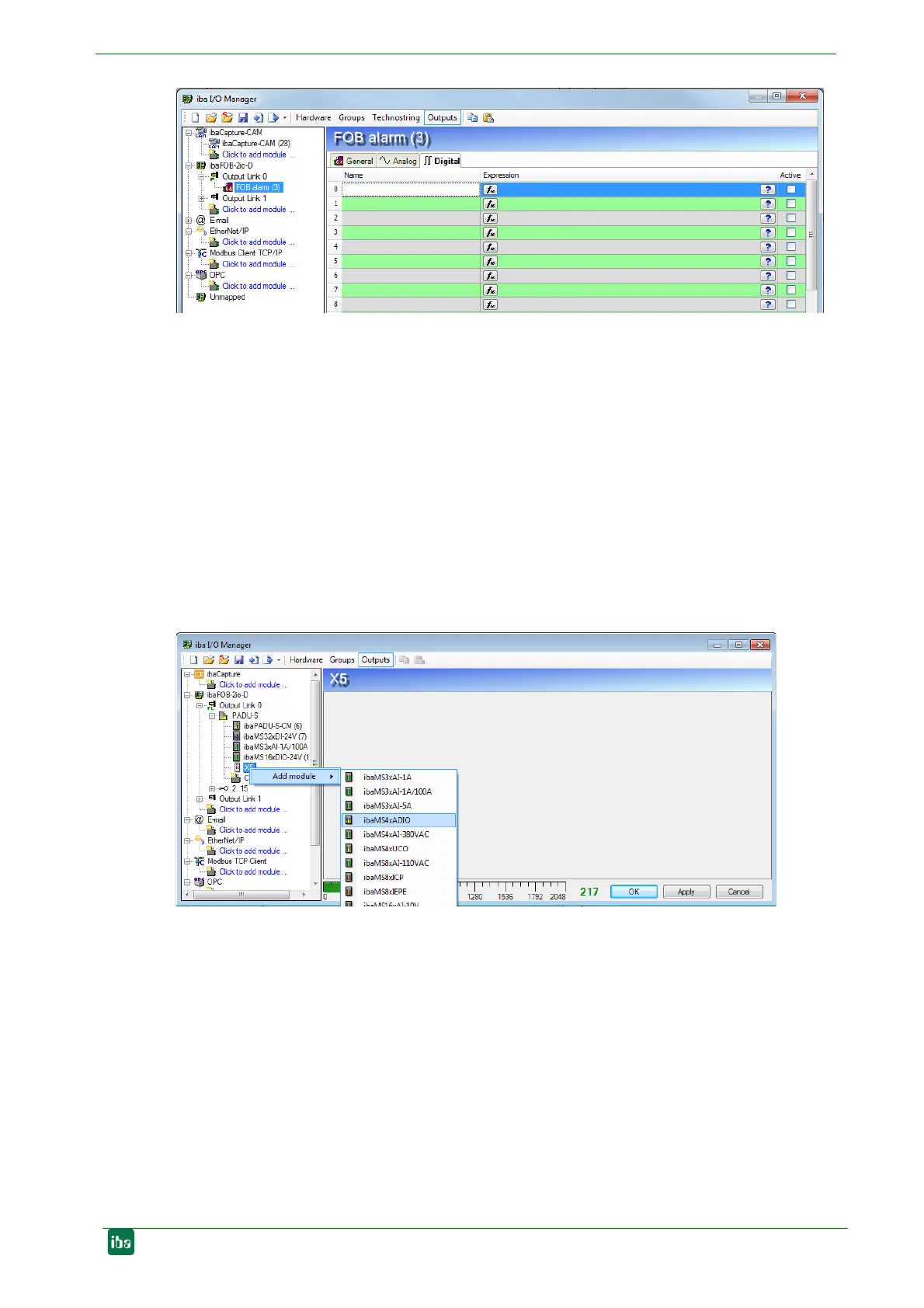

Figure 31: Output Link – Analog tab
8.2.4 Systems with 32Mbit Flex mode
Device configurations working in 32Mbit Flex mode show all modules in the I/O Manager
in both the Hardware section and the Outputs section.
Depending on which section you are in, you can only configure either the input or output
signals.
The configuration of the outputs is explained below using the iba modular system as an
example.
Modules, like in this example a mixed module with digital and analog inputs and outputs
(ibaMS4xADIO), can be added both in the Hardware section and in the Outputs section.
Figure 32: Adding a module with outputs (iba modular system)
To configure the output signals, you must select the Outputs section.
Depending on the module type, you can define analog and/or digital output signals here.
