10.2.2 Operation with ibaBM-COL-8i-o and ibaBM-DIS-i-8o
By using the data distributor ibaBM-DIS-i-8o in combination with the data concentrator
ibaBM-COL-8i-o you can distribute e.g. the output signals of an ibaLogic system from
one FO output link to several lines of devices, such as ibaNet750, and collect and merge
the signals coming from these devices to be used as input signals for the ibaLogic sys-
tem.
The number of ibaFOB input boards can be significantly reduced by replacement in this
way for existing systems with many ibaNet peripheral devices. The cleared PCI/PCIe
slots can be used for more iba input boards.
Furthermore, this technique provides access to the fast communication for elder devices.

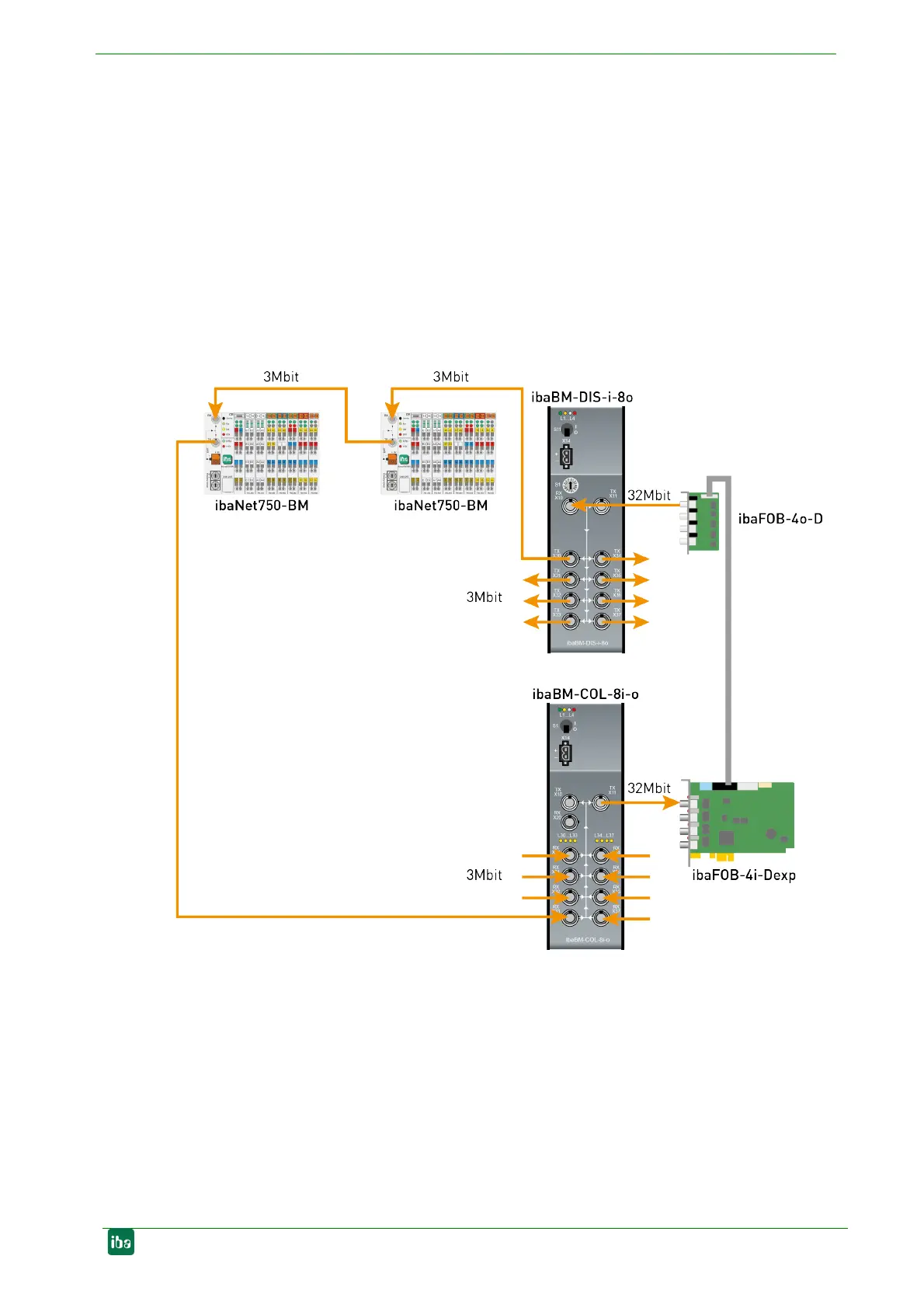

Figure 38: Operation with ibaBM-COL-8i-o and ibaBM-DIS-i-8o
