INSTALLATIONS

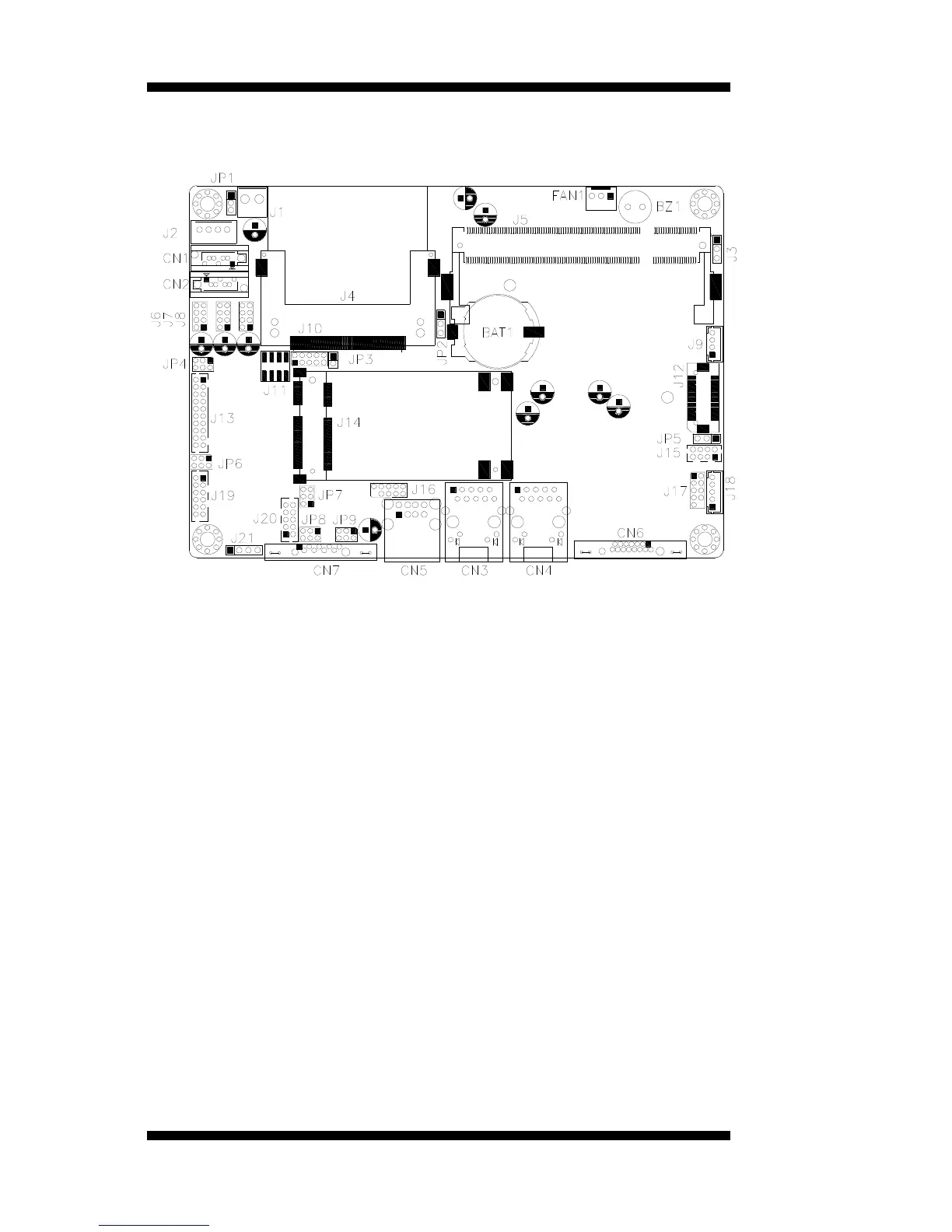

Jumper Locations on IB891
Jumpers on IB891 ......................................................................................... Page
JP1: ATX/AT Mode Select ................................................................................. 9
JP2: Clear CMOS Setting ................................................................................... 9
JP3: Compact Flash Slave/Master Selection....................................................... 9
JP5: LCD Panel Power Selection ....................................................................... 9
JP4, JP6: COM3/4 RS232 +5V/+12V Power Setting ....................................... 10
JP7, JP8, JP9: RS232/422/485 (COM1) Selection ........................................... 10
8
IB891 User’s Manual
