INSTALLATIONS

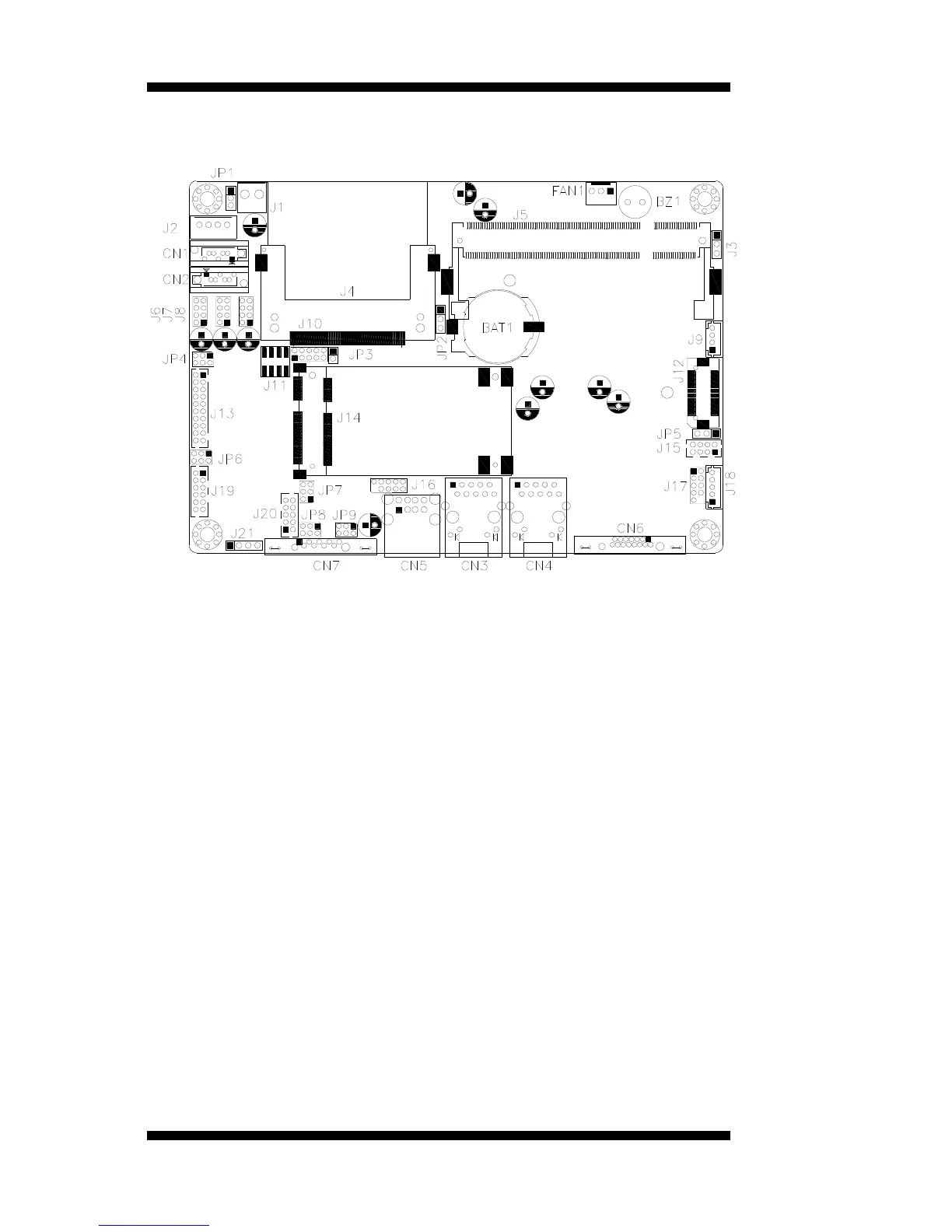

Connector Locations on IB891
Connectors on IB891 .................................................................................................... Page
CN1, CN2: SATA Connectors ........................................................................................... 13
CN3, CN4: Gigabit LAN RJ45 Connector ........................................................................ 13
CN5: USB 1/2 Connector ................................................................................................... 13
CN6: VGA Connector ........................................................................................................ 13
CN7: COM1 RS232/RS422/RS485 Connector ................................................................. 13
J1: Board Input Power Connector ...................................................................................... 14
J2: HDD Power Connector (Output Only) ......................................................................... 14
J3: Power LED ................................................................................................................... 14
J4: Compact Flash Connector ............................................................................................ 14
J5: DDR2 SO-DIMM ......................................................................................................... 14
J6, J7, J8: USB3/4/5/6/7/8 Connector ................................................................................ 14
J9: LCD Backlight Connector ............................................................................................ 14
J10: Digital I/O ................................................................................................................... 15
J11: System Function Connector ........................................................................................ 15
J12 : LVDS(18bit) Connectors ........................................................................................... 16
J13: COM3, COM4 Serial Port (DF11 Connector) ........................................................... 16
J14: Mini PCIE Connector ................................................................................................. 16
J15: Keyboard & Mouse Connector (DF11 Connector) .................................................... 16
J16: SPI Flash Connector (factory use only) ..................................................................... 16
J17: LPC Connector (factory use only) .............................................................................. 16
J18: Smart Battery Interface Connector ............................................................................. 17
J19: Audio Connector (DF11 Connector) .......................................................................... 17
J20: COM2/RS232 Serial Port ........................................................................................... 17
J21: Amplify Connector ..................................................................................................... 17
12 IB891 User’s Manual
