IBASE Technology IB891 - SATA, LAN, USB, VGA, and COM1 Connectors

INSTALLATIONS
CN1, CN2: SATA Connectors
CN3, CN4: Gigabit LAN RJ45 Connector
CN5: USB 1/2 Connector

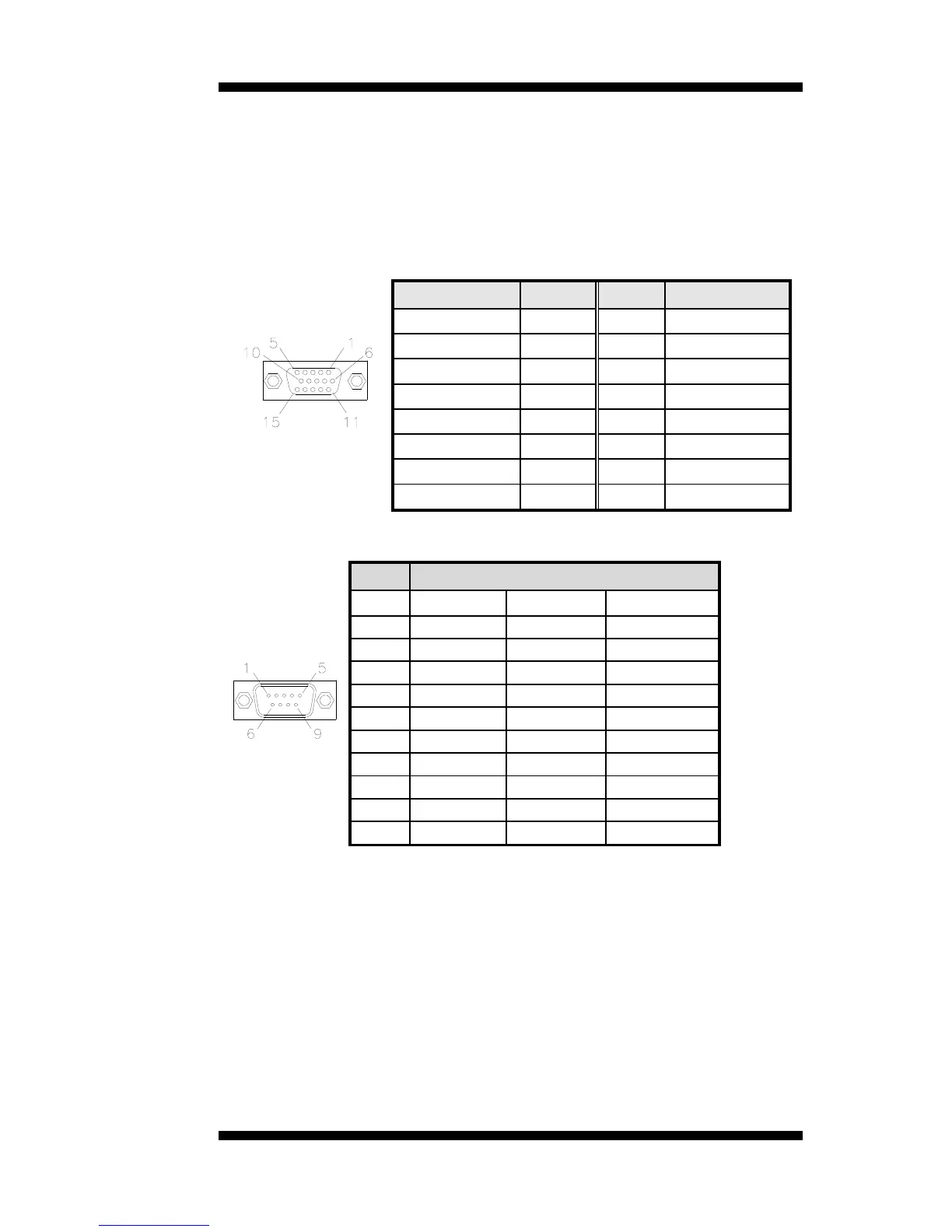

CN6: VGA Connector
VGA
Signal Name Pin # Pin # Signal Name
Red 1 2 Green
Blue 3 4 N.C.
GND 5 6 GND
GND 7 8 GND
VCC 9 10 GND
N.C. 11 12 DDCDATA
HSYNC 13 14 VSYNC
DDCCLK 15
CN7: COM1 RS232/RS422/RS485 Connector
[
Pin # Signal Name
RS-232 R2-422 RS-485
1 DCD TX- DATA-
2 RX TX+ DATA+
3 TX RX+ NC
4 DTR RX- NC
5 Ground Ground Ground
6 DSR NC NC
7 RTS NC NC
8 CTS NC NC
9 RI NC NC
10 NC NC NC
IB891 User’s Manual 13
