IBM 11000 VA LCD 5U User Manual

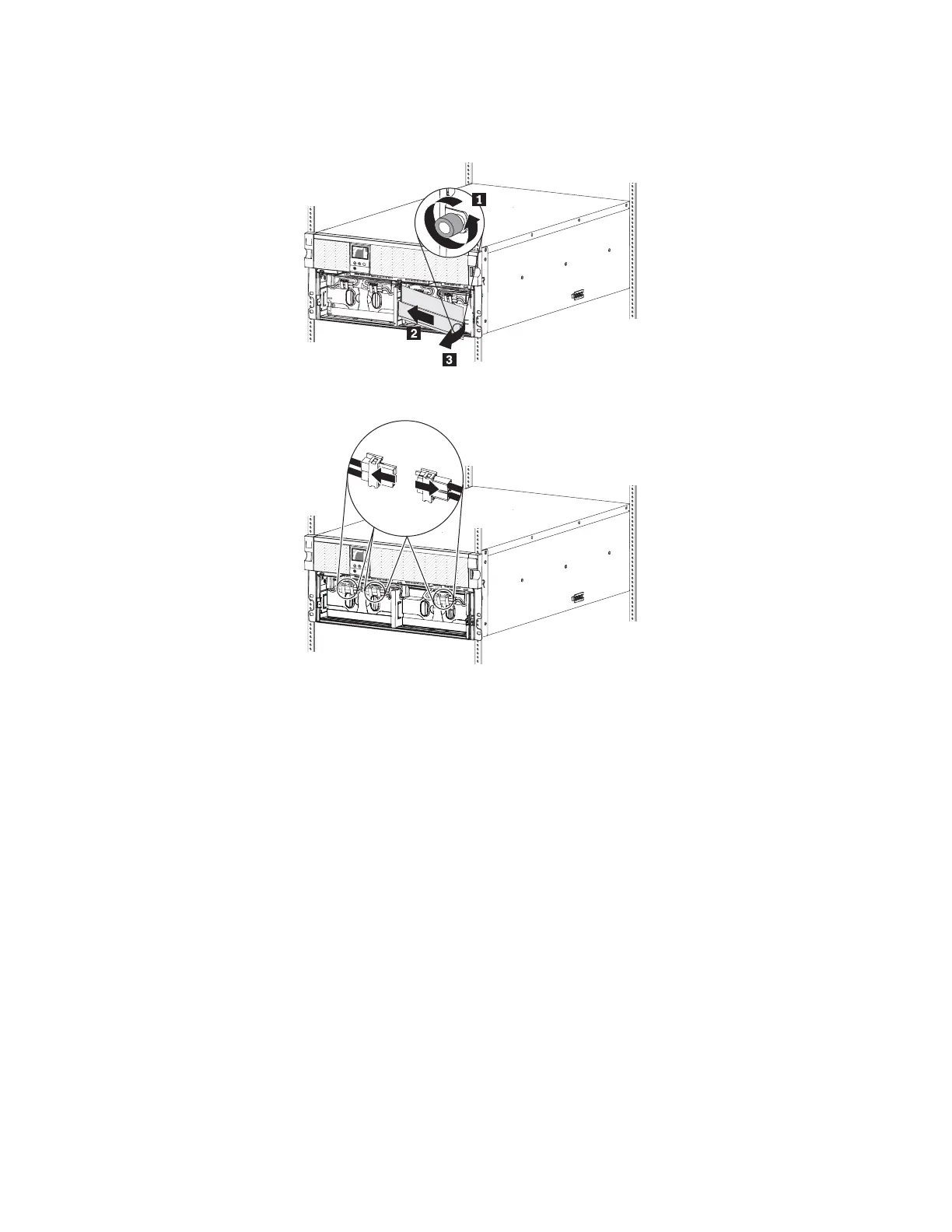

3. Loosen the thumbscrew on the right battery retention bracket 1, slide the
bracket to the left 2, rotate the bracket out 3, and then remove it.
O
K
OK
1
0
0%
6
m
in
R
4. Disconnect all three internal battery connectors.
O
K
OK
1
0
0
%
6
m
in
Chapter 2. Installing the uninterruptible power supply 23
