Disconnecting the UPS internal batteries
To disconnect the UPS internal batteries, complete the following steps:

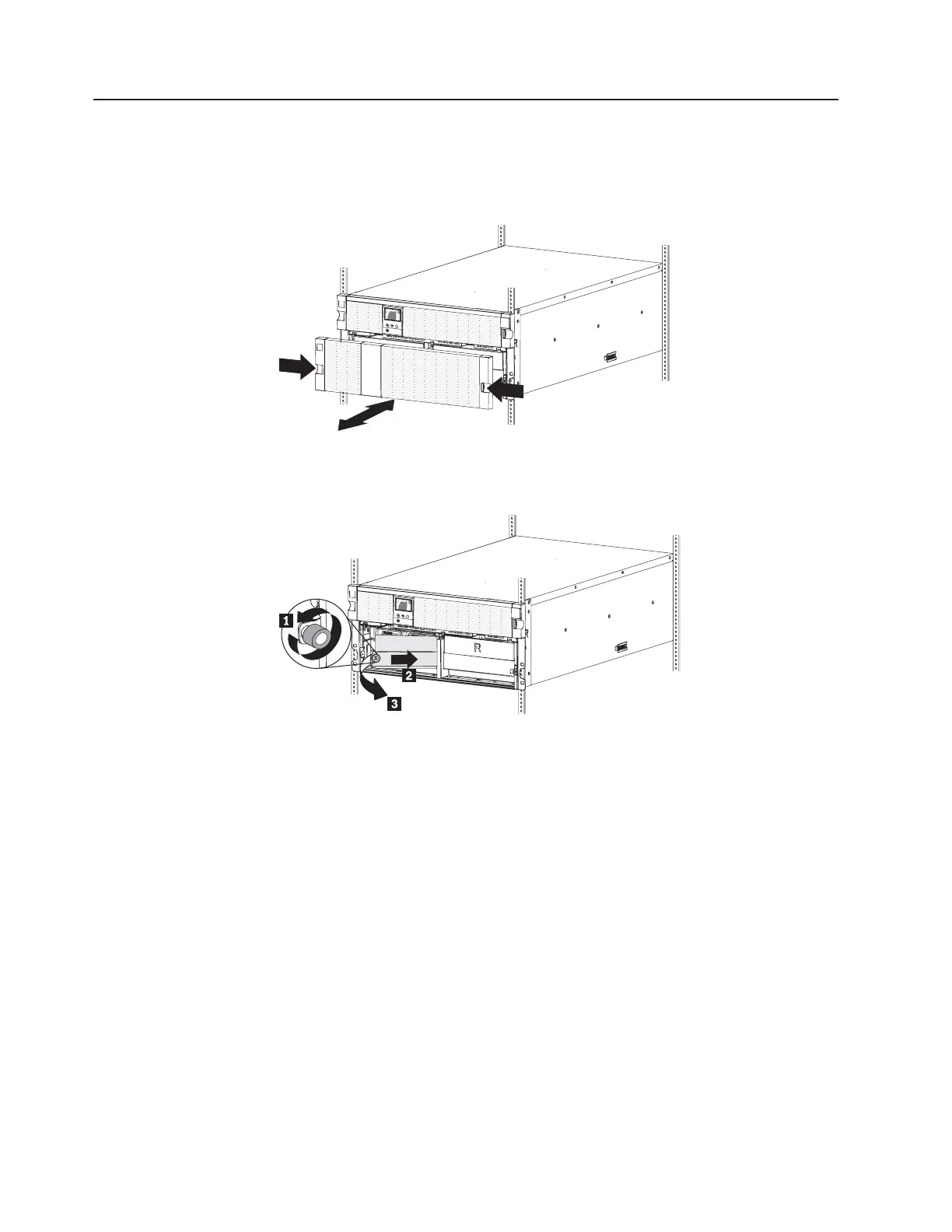

1. Remove the UPS lower front bezel. Press the two side latches toward each
other to release the bezel, and pull the bezel away.
O
K
OK
1
0
0
%
6
m
i
n
2. Loosen the thumbscrew on the left battery retention bracket 1, slide the
bracket to the right 2, rotate the bracket out 3, and then remove it.
O
K
OK
1
0
0
%
6
m
in
L
22 11000 VA UPS and 11000 VA EBM: Installation and Maintenance Guide
