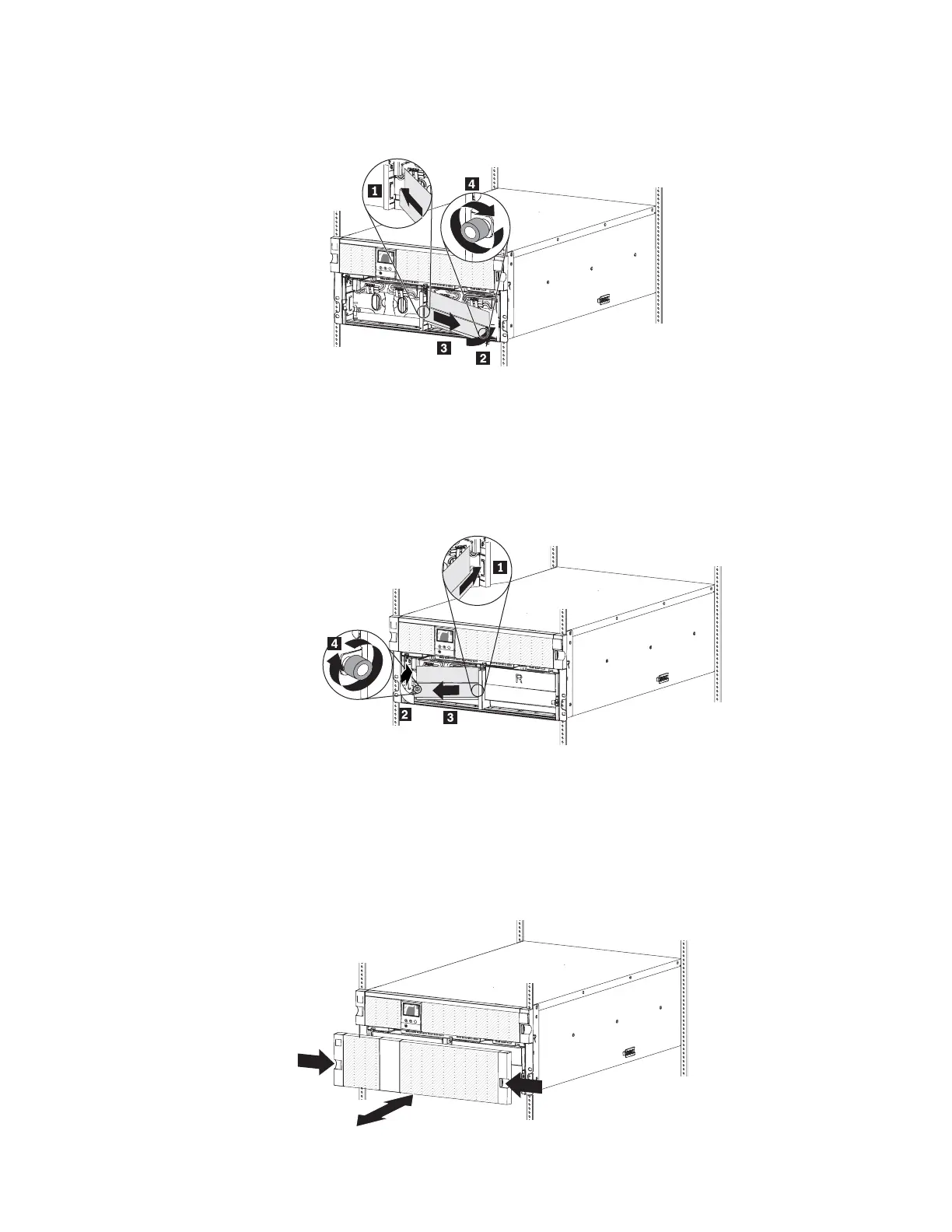

5. Reinstall the right battery retention bracket:
a. Slide the right battery retention bracket to the left and into the slot 1.
O
K
OK
10
0
%
6
m
i
n
R
b. Rotate the battery retention bracket toward the UPS 2. Make sure that the
internal battery connectors are out of the way.
c. Slide the battery retention bracket to the right 3 and tighten the
thumbscrew on the right battery retention bracket 4.
6. Reinstall the left battery retention bracket:
a. Slide the left battery retention bracket to the right and into the slot 1.
O
K
OK
1
0
0
%
6
m
in
L
b. Rotate the battery retention bracket toward the UPS 2. Make sure that the
internal battery connectors are out of the way.
c. Slide the battery retention bracket to the left 3 and tighten the thumbscrew
on the left battery retention bracket 4.
7. To attach the UPS lower front bezel, press the two side latches toward each
other, align the bezel underneath the upper bezel, and snap it into place.
O
K
OK
1
0
0
%
6
m
in
Chapter 2. Installing the uninterruptible power supply 21
