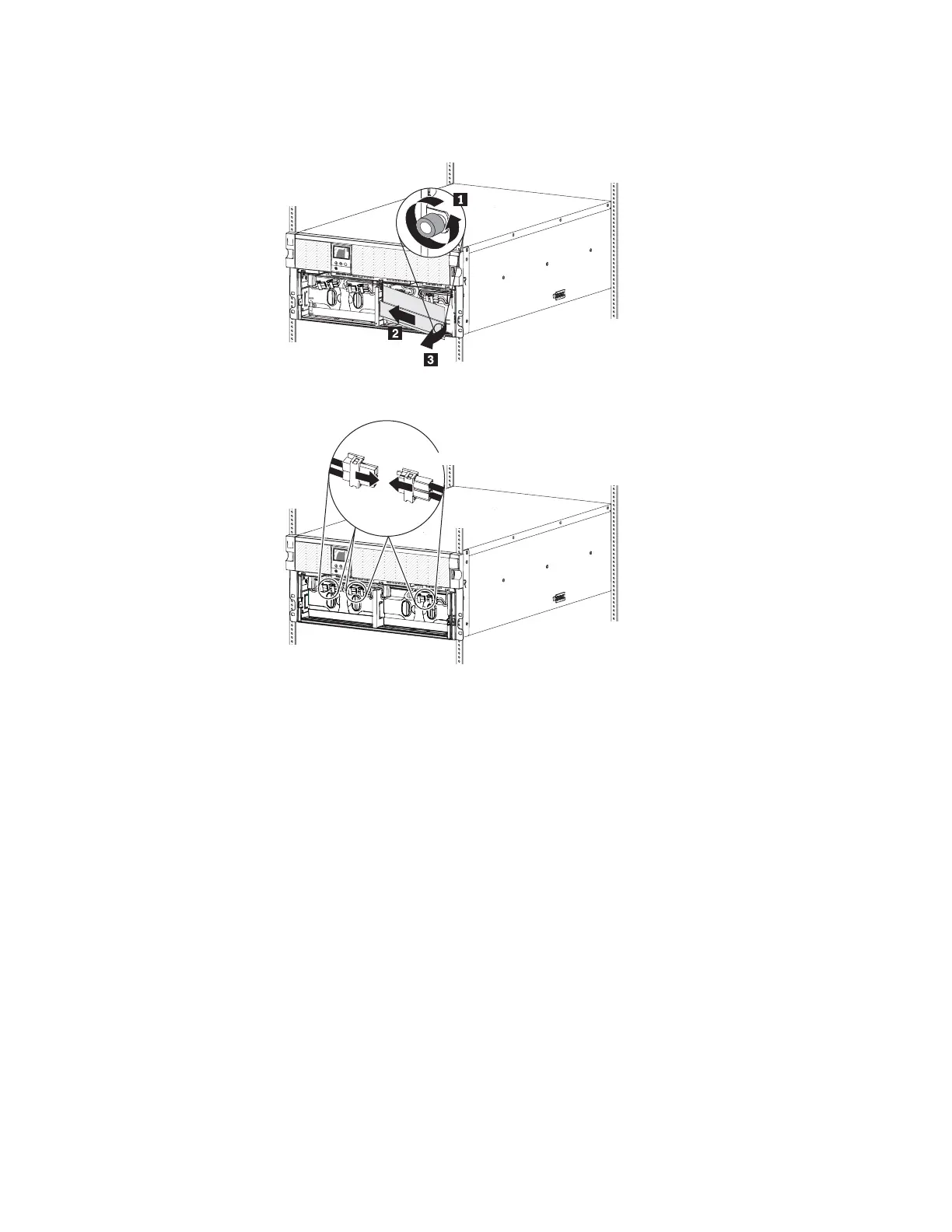

3. Loosen the thumbscrew on the right battery retention bracket 1, slide the
bracket to the left 2, rotate the bracket out 3, and then remove it.
O
K
OK
1
0
0
%
6
m
in
R
4. Connect the three internal battery connectors.
O
K
OK
1
0
0
%
6
m
in
Note: A small amount of arcing might occur when you connect the batteries.
This is normal and does not damage the unit or present any safety concern.
20 11000 VA UPS and 11000 VA EBM: Installation and Maintenance Guide
