140

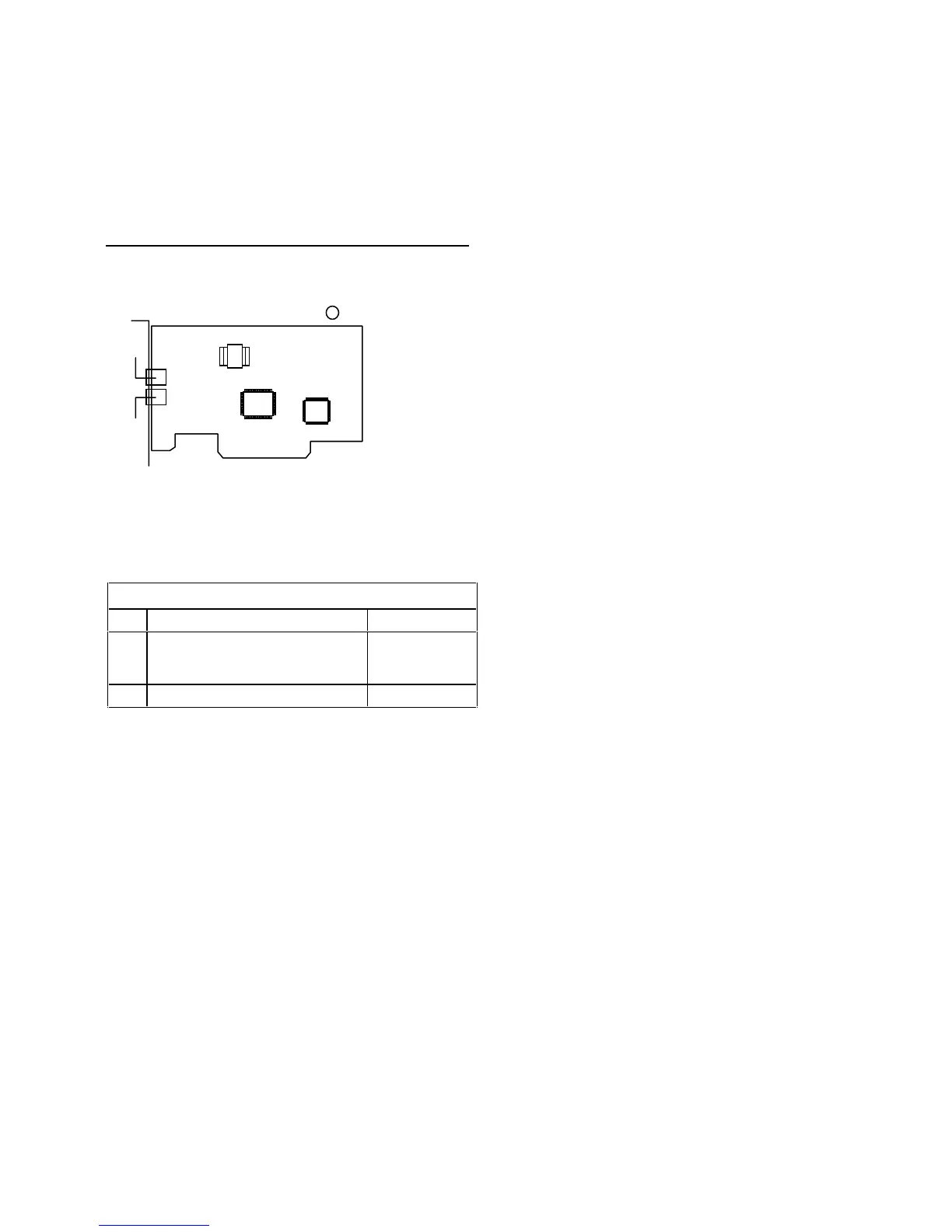

Factory-Installed Modem Card Layout
Figure 5-6 Factory-Installed Modem Card Layout
Factory-Installed Modem Card Connector Functions
Table 5-6 Factory-Installed Modem Card Connector Functions
Item Function Connect to…
1 Telephone line-out
Some modem adapters may come
without this jack.
Telephone set
2 Telephone line-in Telephone line
NOTE: Care should be taken while connecting the
voice-in/speaker-out connector. The longer
exposed end (approx. 15mm) of the cable
should be connected to the modem card. The
other end should be connected to the system
board.
1
2
