CD-ROM Drive Rear Panel Connectors and Features
R G G L
AUDIO
C S M
S L A
CABLE SELECT
SLAVE
MASTER
39
40
1
2
IDE INTERFACE
5V
12V
GG
DC INPUT
5
4
3
2
1
NOT USED
1 2

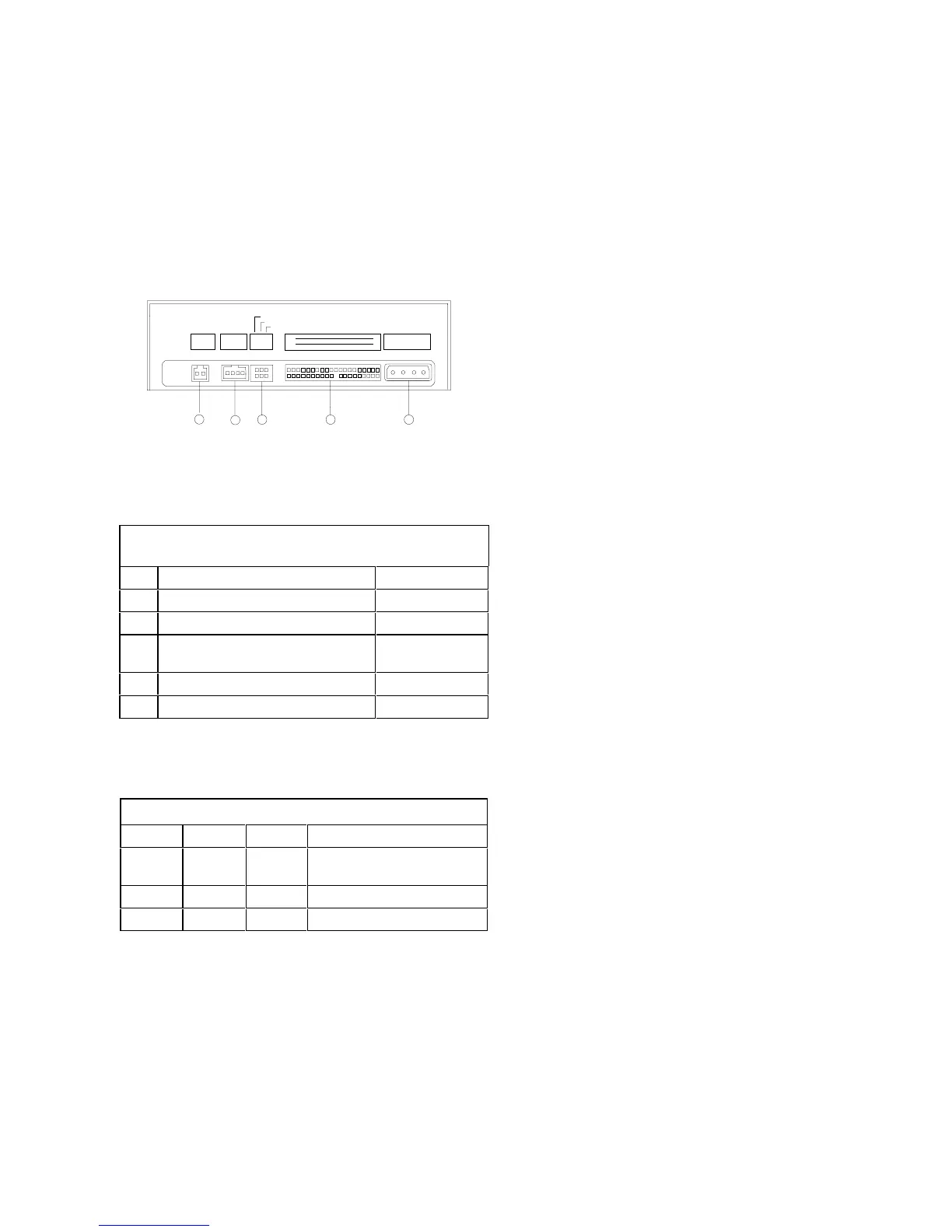

Figure 5-9 CD-ROM Rear Panel
Table 5-8 CD-ROM Drive Rear Panel Connectors and
Features
Item Function Connect to…
1 Power supply connector Power supply
2 Interface connector Riser Card (J104)
3
Configuration jumper. See Table
5-9.
--
4 Audio line out connector Riser Card (J105)
5NOT USED --
CD-ROM Drive Jumper Settings
Table 5-9 CD-ROM Drive Jumper Settings
CS SL MA DESCRIPTION
-- -- On
Drive configured as a
Master. (default)
-- On -- Drive configured as a Slave.
On -- -- Cable select
