142
CD-ROM Drive

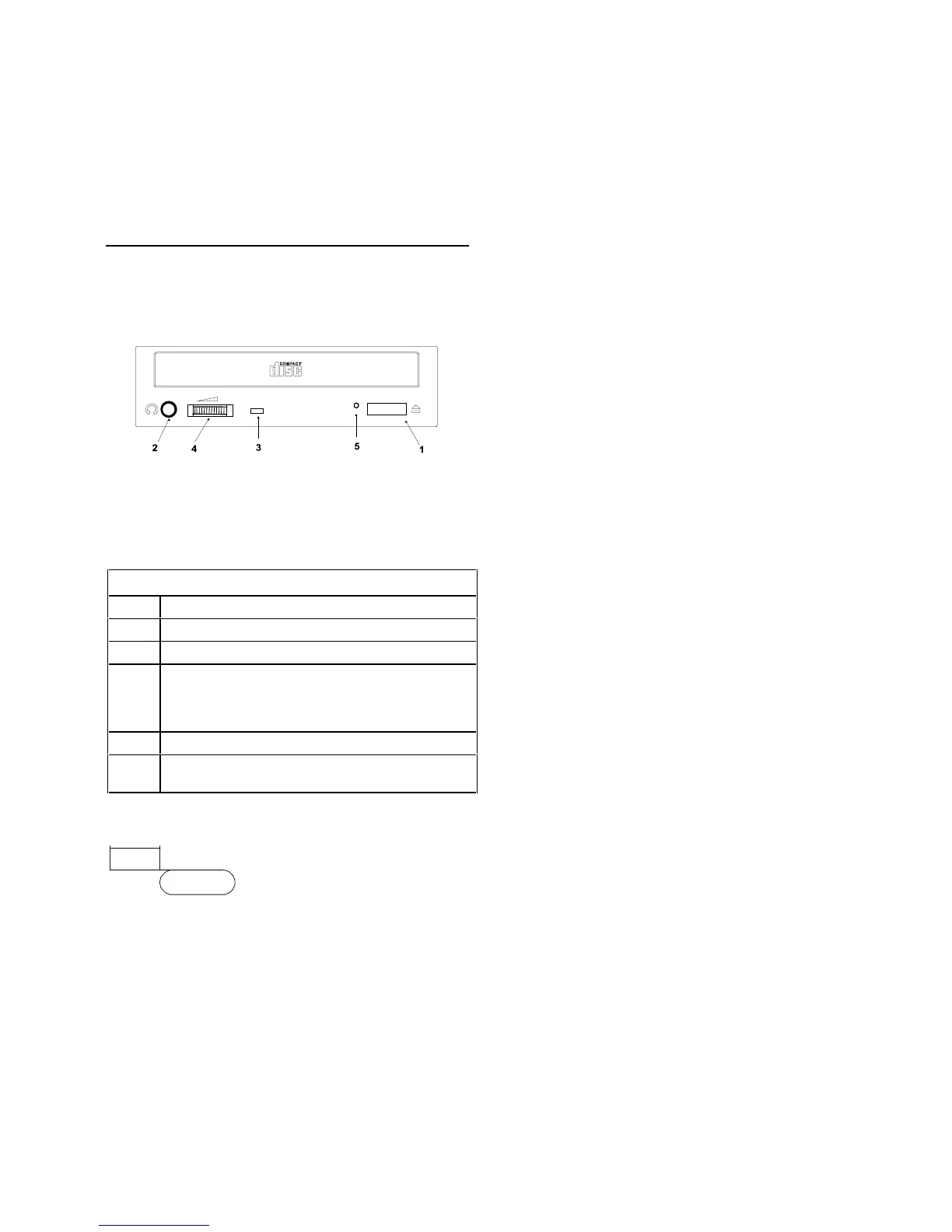

Figure 5-8 CD-ROM Front Panel
NOTE: Position of CD-ROM switches and LEDs may vary
from illustration.
Table 5-7 CD-ROM Front Panel Introduction
Item Description
1 Load / eject button
2 Headphone jack
3 Power-on / busy indicator, lights up in green color
while disc is set in ready state; lights up and
flashes in amber color during data read or seek
operation.
4 Headphone volume control
5 Emergency eject hole.
See CD-ROM Emergency-exit below.
CD-ROM Emergency-exit
NOTE: Make sure to turn off the power before manual disc
eject operation.
If for any reason the tray does not eject
automatically, insert and press an
eject-bar inside the emergency eject
hole to manually eject the tray. A
straightened paper clip with a diameter
of 1.2 mm (typical) can be used as an
eject-bar.
15mm
Typical
