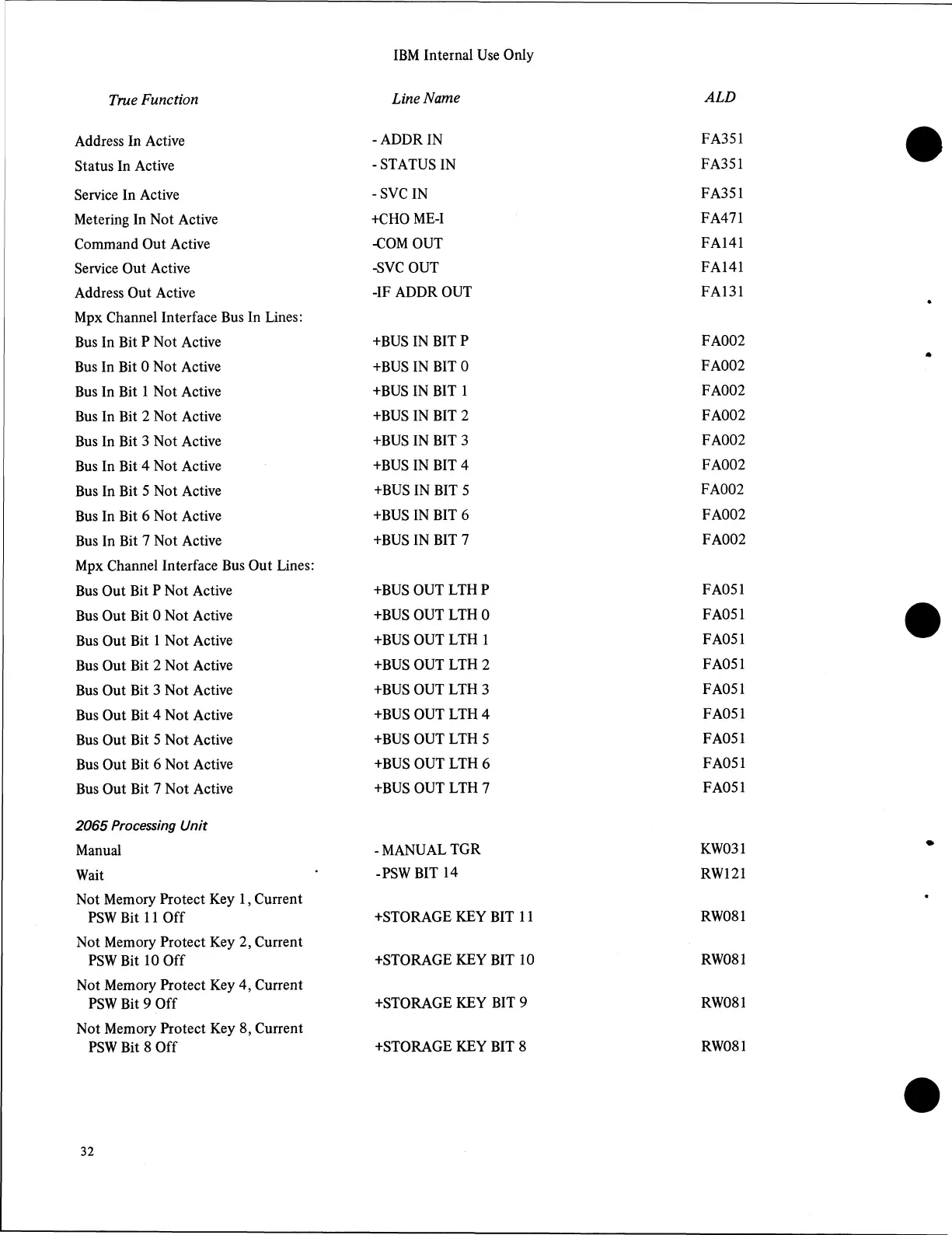

IBM 360 User Manual

IBM Internal Use Only
True Function
Line Name
ALD
Address In Active
- ADDR IN
FA351
Status In Active
- STATUS IN
FA351
Service In Active
- SVC IN
FA351
Metering In Not Active
+CHO ME-I
FA471
Command Out Active
-COM OUT
FA141
Service Out Active
-SVC OUT
FA141
Address Out Active
-IF ADDR OUT
FA131
Mpx Channel Interface Bus In Lines:
Bus In Bit P Not Active
+BUS IN BIT P
FA002
Bus In Bit 0 Not Active
+BUS IN BIT 0
FA002
Bus In Bit 1 Not Active
+BUS IN BIT 1
FA002
Bus In Bit 2 Not Active
+BUS IN BIT 2
FA002
Bus In Bit 3 Not Active
+BUS IN BIT 3
FA002
Bus In Bit 4 Not Active
+BUS IN BIT 4
FA002
Bus In Bit 5 Not Active
+BUS IN BIT 5
FA002
Bus In Bit 6 Not Active
+BUS IN BIT 6
FA002
Bus In Bit 7 Not Active
+BUS IN BIT 7
FA002
Mpx Channel Interface Bus Out Lines:
Bus Out Bit P Not Active
+BUS OUT LTH P
FA051
Bus Out Bit 0 Not Active
+BUS OUT LTH 0
FA051
Bus Out Bit 1 Not Active
+BUS OUT LTH 1
FA051
Bus Out Bit 2 Not Active
+BUS OUT LTH 2
FA051
Bus Out Bit 3 Not Active
+BUS OUT LTH 3
FA051
Bus Out Bit 4 Not Active
+BUS OUT LTH 4
FA051
Bus Out Bit 5 Not Active
+BUS OUT LTH 5
FA051
Bus Out Bit 6 Not Active
+BUS OUT LTH 6
FA051
Bus Out Bit 7 Not Active
+BUS OUT LTH 7
FA051
2065 Processing Unit
Manual
- MANUAL TGR
KW031
Wait
-PSW BIT 14
RW121
Not Memory Protect Key 1, Current
PSW Bit 11 Off
+STORAGE KEY BIT 11
RW081
Not Memory Protect Key 2, Current
PSW Bit 10 Off
+STORAGE KEY BIT 10
RW081
Not Memory Protect Key 4, Current
PSW Bit 9 Off
+STORAGE KEY BIT 9
RW081
Not Memory Protect Key 8, Current
PSW Bit 8 Off
+STORAGE KEY BIT 8
RW081
